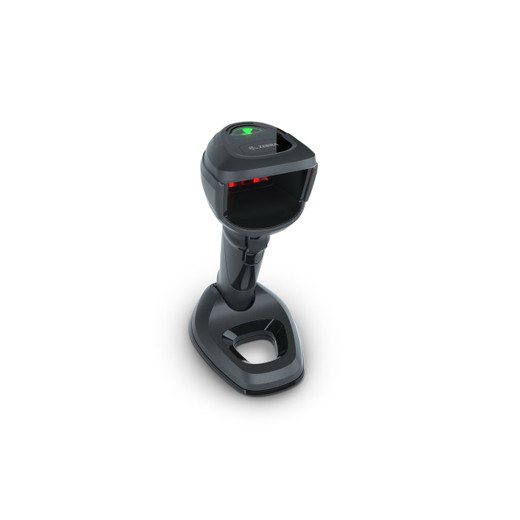

Zebra DS9908-HD5000WZZUS High-Density RFID Hybrid Presentation Imager
Overview
The DS9908-HD5000WZZUS is Zebra's purpose-built hybrid imager for clinical labs, pharmacies, and specimen-handling environments where general-purpose scanners routinely miss. A 1280×800-pixel high-density sensor paired with Zebra's PRZM Intelligent Imaging technology handles the barcode types that break conventional scanners — tiny codes on microscope slides, curved labels on blood vials and medication bottles, color-coded specimen trays, and biopsy cassettes. Beyond barcodes, the integrated UHF RFID reader/writer operates over EPC Class 1 Gen2 and ISO-18000-63 standards, enabling tag-based blood bag tracking and specimen management without a separate reader or external power supply. For teams managing chain-of-custody accuracy on critical biological samples, this is the scanner designed for that workflow.
A patent-pending capacitive touch sensor detects whether a worker has picked up the unit and instantly switches between presentation (hands-free) and handheld modes — no button press, no mechanical switching component to fail over time. When set down, the scan range contracts to avoid unintentional reads of nearby items. When lifted, an aim dot activates and range extends automatically for handheld reach.
Key Features
- 1280×800 High-Density Imager: The megapixel sensor resolves small, dense barcodes — the kind printed on microscope slides — that lower-resolution sensors struggle with. Fewer missed reads means fewer workflow interruptions in high-throughput lab settings.
- PRZM Intelligent Imaging + White LEDs: White illumination LEDs (not red) make color-coded labels — specimen trays, biopsy cassettes, blood vials — scannable without the color-wash problem that red-LED imagers create. First-pass read rates up to 240 in./610 cm per second keep pace with rapid-fire sample processing.
- Integrated UHF RFID (EPC Gen2 / ISO-18000-63): Reads and writes RFID tags in the 902–928 MHz (US) range at up to +25 dBm output power — enough to scan multiple tagged blood bags in a single pass without requiring line of sight. Complimentary RFID data conversion software reports tag data as standard barcode output, so existing applications need no modification.
- Hybrid Presentation/Handheld Switching: The accelerometer-and-capacitive-sensor combination switches modes without mechanical parts, which means no wear-out mechanism and no calibration drift over the scanner's service life. Presentation mode range limits prevent false reads on adjacent items; handheld mode extends range and activates the aim dot automatically.
- 48°H × 30.6°V Field of View: A wider field of view than competing presentation scanners reduces the precision required when placing items — workers don't need to align barcodes precisely in the scan window, which matters when handling fragile samples.
- ±60° Skew and Pitch Tolerance, 0°–360° Roll Tolerance: Labels on curved medicine bottles and blood vials are rarely presented flat. Full roll tolerance means a curved or angled label reads on the first pass without the worker having to reposition the container.
- Broad Symbology Coverage including OCR and MICR: Reads all major 1D codes (Code 39, Code 128, UPC/EAN, GS1 DataBar), 2D codes (QR, DataMatrix, PDF417, Aztec, Han Xin), and optical character recognition (OCR-A, OCR-B, MICR, US Currency) — useful for pharmacies processing prescription paper documents alongside barcode verification.
- IP52 Environmental Sealing: Rated for limited dust ingress and dripping water — appropriate for lab bench environments where chemical spills and cleaning agents are a routine hazard. Not rated for immersion; full liquid submersion would require a higher-rated enclosure.
- 5 ft./1.5 m Drop Resistance, 2,000-Tumble Rated: Lab environments involve drops from counter height. A 5-foot concrete drop spec means the scanner survives a typical bench-to-floor accident without immediate data loss or read degradation.
- USB/RS232/Keyboard Wedge Host Interfaces: Drops into virtually any existing workstation without driver complexity. The RFID model operates from a single USB port with no external power supply required — no power brick to cable-manage on a crowded lab bench.
Integration and Compatibility
The DS9908-HD5000WZZUS supports USB, RS232, and Keyboard Wedge host interfaces, covering the majority of lab information systems (LIS) and pharmacy management platforms already deployed in the field. The RFID subsystem operates across US (902–928 MHz), EU (865–868 MHz), and Japan (916–923 MHz) frequency bands, making it suitable for multi-regional healthcare organizations standardizing on a single scanner model. Input voltage range is 4.5–5.5 VDC, drawing 356 mA typical in operation and dropping to 70 mA in standby — within USB bus power limits and gentle on shared USB hubs. Operating temperature range of 0°–50°C (32°–122°F) covers standard lab and pharmacy environments; storage range extends to -40°C/-40°F for cold-chain logistics staging. Explore the broader Zebra scanner and printer catalog for companion label printers and mobile computers that integrate with the same LIS workflow.
For teams evaluating presentation and handheld barcode scanners across departments, the DS9908-HD5000WZZUS sits at the intersection of high-density barcode reading and RFID — a combination not common in the market. If your deployment requires only standard 2D barcode reading without RFID, consider a non-RFID variant in the DS9908 family to reduce per-unit cost. For environments where RFID is the primary workflow (bulk inventory reads, asset tracking across a room), a dedicated UHF RFID sled or portal reader would offer higher antenna gain and throughput than a desktop presentation scanner. See the RFID scanner category for those alternatives. Pair the DS9908-HD5000WZZUS with a Zebra label printer for closed-loop specimen labeling and verification at the point of collection.
Frequently Asked Questions
Q: Does the DS9908-HD5000WZZUS require an external power supply for RFID operation?
A: No. The RFID model operates from a single USB port and does not require an external power supply, drawing 356 mA typical in operation — within standard USB bus current limits.
Q: Can the DS9908-HD5000WZZUS read barcodes on curved surfaces like blood vials and medicine bottles?
A: Yes. The scanner supports ±60° skew and pitch tolerance and full 0°–360° roll tolerance, which directly addresses curved label presentations on cylindrical containers. White illumination LEDs also help avoid the color-wash effect that red-LED imagers produce on color-coded specimen labels.
Q: What RFID standards does the DS9908-HD5000WZZUS support?
A: It supports EPC Class 1 Gen2, EPC Gen2 V2, and ISO-18000-63 UHF RFID standards, with frequency coverage for US (902–928 MHz), EU (865–868 MHz), and Japan (916–923 MHz) markets.
Q: Will I need to modify my existing lab application to use the RFID feature?
A: No modification is required. Zebra provides complimentary RFID data conversion software that reports RFID tag data as standard barcode output, allowing the scanner to work transparently with existing LIS or pharmacy management applications.
Q: How does the DS9908-HD5000WZZUS switch between hands-free and handheld modes?
A: A patent-pending combination of a capacitive touch sensor and an accelerometer detects when a worker picks up or sets down the scanner and switches modes automatically — no button press required and no mechanical components to wear out.
Q: What is the environmental rating on the DS9908-HD5000WZZUS?
A: The DS9908 (non-RFID) carries an IP52 rating, providing limited dust and drip resistance suitable for lab bench use. It is also rated for 5 ft./1.5 m drops to concrete and 2,000 tumbles at 1.5 ft./0.5 m.
The DS9908-HD5000WZZUS is one of a small number of desktop imagers that combines a 1280×800 high-density sensor with an integrated UHF RFID reader in a single USB-powered form factor — and that combination is specifically what makes it defensible in a clinical lab procurement conversation where both barcode and RFID workflows exist on the same bench.
Technical Highlights:
- RFID Power Output (0 to +25 dBm): The full 25 dBm ceiling gives the reader enough headroom to read through plastic specimen containers and light shielding — useful when blood bags are stacked or partially obscured in a processing tray, since RFID does not require line of sight.
- Swipe Speed (up to 240 in./610 cm per second): At high-throughput lab windows, a scanner that keeps pace with rapid manual swipes rather than forcing the worker to slow down prevents the backlog that compounds during shift peaks.
- OCR-A, OCR-B, MICR Support: Many pharmacy workflows still involve paper prescription documents alongside barcoded vials. A scanner that reads both in the same unit without switching hardware eliminates a friction point that accumulated over years of legacy process design.
Deployment Considerations:
- The RFID subsystem draws all power from USB — verify that any hub or workstation port being used is not shared with other high-draw peripherals, as the 356 mA operating current combined with other devices could approach the limit of some bus-powered hubs.
- IP52 covers dripping water and limited dust but is not rated for direct spray cleaning or immersion; labs using spray-bottle surface disinfection protocols should evaluate whether additional protective measures are needed during cleaning cycles.
This scanner is the right fit for a clinical lab or pharmacy bench processing high volumes of mixed barcode and RFID-tagged specimens — particularly blood processing workflows where EPC Gen2 tag reads on blood bags need to coexist with high-density slide barcodes in the same session without swapping equipment.
