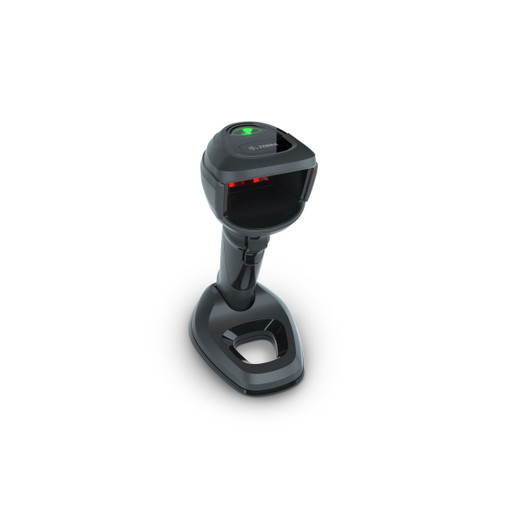

Zebra DS9908-SRR0004ZZUS Presentation Area Imager
Overview
The Zebra DS9908-SRR0004ZZUS is a wired presentation area imager designed for retail and point-of-sale environments. This 2D area imager captures barcodes from multiple distances and angles without requiring precise positioning, making it suitable for high-throughput checkout and merchandise verification applications. The device features a standard-range optical assembly optimized for capture at typical checkout counter distances.
Key Features
- 2D Area Imager Engine: Captures one-dimensional and two-dimensional barcodes in a single pass without manual repositioning
- Wired Connectivity: USB or serial connection for stable, latency-free integration with point-of-sale and retail management systems
- Multi-Symbology Support: Reads QR Code, Data Matrix, PDF417, Code 128, Code 39, UPC, and EAN barcode formats natively
- IP52 Dust and Splash Protection: Sealed against light dust ingress and water spray, suitable for retail and warehouse checkout environments
- 1.5m Drop Specification: Withstands accidental drops from standard counter height to concrete surfaces, reducing replacement costs in high-traffic areas
- 240.2 Inch/Second Scan Rate: Processes barcodes at high speed to support rapid transaction throughput during peak periods
- Single-Pass Scan Mode: Eliminates the need for operator training on precise scanning angles or distances
- Compact Presentation Form Factor: Mounts on countertops or integrated into kiosk and self-checkout installations with minimal footprint
Integration and Deployment
The DS9908-SRR0004ZZUS (often searched as DS9908 SRR0004ZZUS) connects via wired interface to point-of-sale terminals, retail management systems, and checkout kiosks. The 2D area imaging technology eliminates barcode orientation requirements, allowing operators to present items naturally without repositioning. The combination of IP52 protection and 1.5m drop rating makes the scanner suitable for self-service kiosks, assisted checkout stands, and merchandise verification stations in retail locations.
Standard range optics are optimized for typical checkout counter distances of 5 to 15 inches. The presentation mounting style positions the scan window in a convenient location for customer-facing applications and merchandise returns verification.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I have evaluated the Zebra DS9908-SRR0004ZZUS during point-of-sale integration projects for retail deployments. This presentation imager brings meaningful operational benefits to checkout environments where scan consistency and operator ease-of-use directly impact transaction speed and customer experience.
Technical Highlights:
- 2D Area Imaging at Retail Scale: The 2D imager engine captures both 1D and 2D codes without operator repositioning, reducing training overhead and scan errors during high-volume checkout periods. The 240.2 inch/second scan rate meets typical retail throughput requirements.
- Ruggedness for Retail Environments: IP52 protection and 1.5m drop rating reflect real-world counter abuse patterns. The scanner tolerates accidental drops and exposure to spilled beverages or cleaning agents common in checkout areas.
- Wired Stability: Direct USB or serial connection eliminates wireless latency concerns and avoids Bluetooth pairing issues that plague some retail environments with dense RF interference from multiple wireless devices.
Deployment Considerations:
- Verify point-of-sale system barcode data format compatibility before deployment. The DS9908-SRR0004ZZUS supports standard retail symbologies, but legacy systems may require character translation or protocol adaptation.
- Position the imager at a consistent height and distance to maintain optimal capture performance. Presentation area imagers are less forgiving than pistol-grip handheld scanners if mounted incorrectly.
- Plan wired routing during kiosk or counter design phase. Unlike wireless options, cable management becomes permanent once the checkout fixture is installed.
The DS9908-SRR0004ZZUS represents a reliable choice for retail point-of-sale and self-checkout environments where wired connectivity and 2D imaging capability are requirements, and where operator convenience and scanner durability directly reduce operational friction.
