Description

Zebra DS9908-DL00004ZZNA Concise Descriptor

Overview

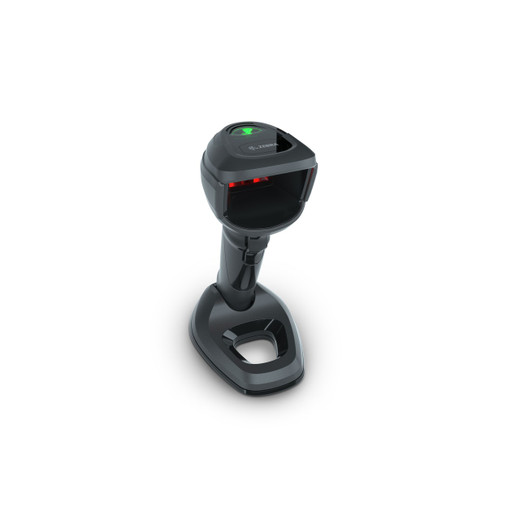

The Zebra DS9908-DL00004ZZNA is a corded hybrid presentation imager engineered specifically for laboratory and pharmacy environments. It addresses the challenge of capturing difficult-to-read barcodes, such as those found on small microscope slides or curved medication bottles, ensuring first-time, every-time accuracy. This device offers a unique hybrid design, allowing for seamless switching between handheld and hands-free scanning modes to optimize workflow efficiency and reduce errors in critical tracking applications.

Compatibility

This imager is designed to integrate with laboratory information systems (LIS) and pharmacy management software. The corded design connects via USB, providing power and data transfer. While specific model numbers of compatible LIS or pharmacy software are not detailed in the provided evidence, its primary function is to capture barcode data for input into these systems. The optional RFID model is compatible with UHF RFID tags for applications like blood bag tracking.

Installation Notes

The DS9908-DL00004ZZNA utilizes a standard USB connection for both power and data, simplifying installation. No external power supply is required for the standard corded model, reducing clutter and setup complexity. The hybrid design allows for dynamic switching between scanning modes, which can be configured to suit specific workflow requirements within a lab or pharmacy setting.

What's in the Box

  • 1x DS9908-DL00004ZZNA Corded Hybrid Imager
  • 1x USB Cable
Expert Analysis
Specifications
Dimensions: DS9908: 8.0 in. H x 3.7 in. W x 5.2 in. D
Weight: DS9908: 11.6 oz./330.0 g
Drop Specification: DS9908: Designed to withstand multiple drops at 5.0 ft./1.5 m to concrete
Tumble Specification: Designed to withstand 2,000 tumbles in 1.5 ft. /0.5 m tumbler
Environmental Sealing: DS9908: IP52
Input Voltage Range: 4.5 to 5.5 VDC Host Powered
Operating Current: DS9908: 356 mA (typical)
Standby Current: DS9908: 70 mA (typical)
Swipe Speed: Up to 240 in./610 cm per second
Aiming Pattern: Circular 528nm green LED
Illumination: (2) warm white LEDs
Imager Field Of View: 48° H x 30.6° V nominal
Image Sensor: 1280 x 800 pixels
Minimum Print Contrast: 16% minimum reflective difference
Skew Tolerance: +/- 60°
Pitch Tolerance: +/- 60°
Roll Tolerance: 0° - 360°
Operating Temperature: 32.0° to 122.0° F / 0.0° to 50.0° C
Storage Temperature: -40.0° to 158.0° F / -40.0° to 70.0° C
Humidity: 5% to 95% RH, non-condensing
Supported Host Interfaces: USB Certified, RS232, Keyboard Wedge
Regulatory Compliance: EN 55032:2015/AC:2016 (Class B)
Decode Indicator: Direct Decode Indicator, Good Decode LEDs, Speaker
