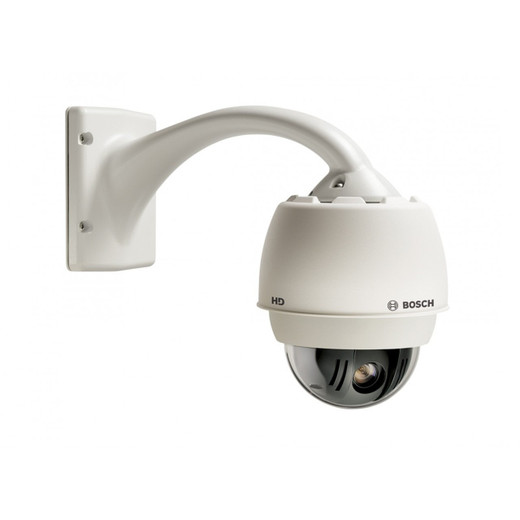

Bosch Dome PTRZ 8MP HDR X 5.9-13mm hydro - NDE-8704-RX-H

Bosch NDE-8704-RX-H 8MP PTRZ Dome Camera with Starlight HDR and IVA Pro

Overview

The Bosch NDE-8704-RX-H is an 8MP pan-tilt-recessed zoom dome built for perimeter coverage and high-consequence outdoor deployments where standard cameras fall short. A 1/1.2" sensor, Starlight x low-light technology, and HDR x wide dynamic range combine to keep footage actionable when scene lighting is worst — think mixed sodium-vapor/ambient at a loading dock at 2 a.m., or backlit entry gates at dawn. The hydro suffix signals a sealed, weatherized housing rated IP66 and IP67, ready for direct rain, hose-down environments, and temporary submersion without additional enclosures.

Key Features

• 8MP on a 1/1.2" sensor: More sensor area per megapixel than typical 1/2.8" or 1/1.8" imagers. Larger photosites capture more light, which directly supports identify-distance performance — the NDE-8704-RX-H reaches a DORI identify threshold at 5 m (17 ft) and detect distance out to 53 m (172 ft). Plan coverage zones around these numbers, not marketing claims.
• 5.9–13mm varifocal PTRZ lens: Pan, tilt, rotate, and zoom adjustments via the motorized lens and dome mechanics mean you can fine-tune coverage during commissioning without re-mounting or re-cabling. On multi-camera installs, that saves measurable labor per camera.
• Starlight x low-light performance: The "x" designation in the Bosch lineup indicates the highest-tier Starlight sensitivity level, delivering usable color detail at illumination levels where lesser sensors switch to grainy monochrome. For parking structures and perimeter fencing with minimal fill lighting, this is the spec that determines whether footage is evidence-grade or not.
• HDR x dynamic range: Handles high-contrast scenes — sunlit exterior combined with shaded interior, or headlights sweeping across a dark lot — without blowing out highlights or crushing shadows. If your site has glare-blown entry footage in standard cameras, HDR x addresses the root cause.
• IVA Pro video analytics: Onboard intelligent video analysis for perimeter tripwire, object detection, and loitering rules runs at the edge, reducing VMS server load and enabling faster event response. Analytic rules persist even when VMS connectivity drops.
• Electronic Image Stabilization (EIS): Compensates for vibration from HVAC, traffic, or wind — relevant on rooftop or pole mounts where camera shake degrades analytics accuracy and recording quality.
• IP66 / IP67 dual rating: IP66 covers sustained high-pressure jets; IP67 adds protection against temporary immersion up to 1 m. Both ratings are relevant on hose-down dock environments or flood-prone mounting locations.
• IK11 vandal resistance: Rated to withstand 50-joule impacts — significantly above the IK10 threshold — making it appropriate for accessible public areas, transit stations, or anywhere physical tampering is a real threat vector.
• -50°C to +60°C operating range: Covers extreme cold-climate deployments (northern logistics yards, cold-storage facilities) without heater accessories. At the high end, +60°C handles rooftop mounting in hot climates during peak summer.
• Smart encoding with quad streaming: Smart encoding (Bosch's efficiency layer) reduces bitrate and storage consumption on static or low-motion scenes. Four simultaneous streams let you route high-res to recording, lower-res to live monitoring, a third to analytics, and a fourth for mobile or remote access without re-encoding.
• PoE power: Single-cable installation via standard PoE — no separate power supply runs. Confirm your switch's per-port budget against the camera's draw before deploying on a budget PoE switch.

Integration and Compatibility

The NDE-8704-RX-H fits within the broader Bosch IP camera ecosystem and integrates with Bosch Video Management System (BVMS) as well as third-party VMS platforms via ONVIF. IVA Pro analytics metadata is natively consumed by BVMS for alarm-driven workflows; third-party VMS support for analytic metadata varies by platform — confirm with your VMS vendor before specifying analytics-driven rules. For installations requiring large-scale recording, pair with a compatible network video recorder sized to handle 8MP quad-stream input. Review PoE switch selection guidelines to ensure per-port and chassis power budgets are adequate for the camera's draw. For mounting hardware, see compatible camera mounts and brackets.

Frequently Asked Questions

Q: What does the PTRZ designation mean on the NDE-8704-RX-H?

A: PTRZ stands for Pan, Tilt, Rotate, Zoom — motorized adjustments to all four axes via the recessed dome mechanism. This lets installers dial in the exact coverage angle during commissioning without physically repositioning the mount, saving labor on multi-camera projects.

Q: Is the NDE-8704-RX-H suitable for outdoor use in extreme cold?

A: Yes. The operating temperature range runs from -50°C to +60°C, which covers arctic logistics yards, cold-storage facility exteriors, and rooftop mounts in hot climates without requiring external heaters or cooling accessories.

Q: What is the difference between IP66 and IP67 on this camera?

A: IP66 protects against sustained high-pressure water jets from any direction — suitable for hose-down environments like loading docks and wash bays. IP67 adds rated protection against temporary submersion up to 1 meter. The NDE-8704-RX-H carries both ratings, so it handles either scenario.

Q: What does IK11 vandal resistance mean in practical terms?

A: IK11 is rated to withstand 50-joule impacts, which exceeds the more common IK10 (20-joule) standard. In practice this makes the dome suitable for transit stations, public areas, and anywhere physical tampering is a realistic threat.

Q: Does the NDE-8704-RX-H support third-party VMS platforms?

A: The camera integrates with Bosch BVMS natively and supports ONVIF for compatibility with third-party VMS platforms. Full IVA Pro analytics metadata consumption depends on VMS platform support — verify with your VMS vendor for analytics-driven alarm workflows.

Q: What is the DORI identify distance for the NDE-8704-RX-H?

A: The DORI identify distance is 5 m (17 ft), with detect distance reaching 53 m (172 ft). Use these values when laying out camera spacing for perimeter or entrance coverage to ensure the correct performance standard at each point in the scene.

Ted Perry

The NDE-8704-RX-H is one of the few dome cameras I'd confidently spec into a northern outdoor perimeter project without a heater kit — that -50°C lower bound is not a paper spec, and combined with IP67 submersion rating, it covers scenarios most integrators reach for a specialty enclosure to solve. The 1/1.2" sensor driving 8MP is the right architecture here: larger photosites on a larger imager deliver the Starlight x low-light performance that makes this camera useful at the identify tier (5 m DORI) in ambient-only conditions.

Technical Highlights:

• IK11 at 50 joules: Jumps a full impact class above IK10 — the difference between a camera that survives a deliberate strike in a transit corridor and one that doesn't. Worth the spec premium on any accessible public installation.
• HDR x + Starlight x: Two independent imaging challenges — high contrast and low light — addressed at the sensor and processing level. Scenes with mixed light sources (sodium vapor plus LED fill, or direct sun plus deep shadow) that defeat single-spec cameras stay usable here.
• Smart encoding + quad streaming: Four simultaneous streams with smart encoding means you can run a full-res stream to an NVR, a reduced stream to a live monitoring wall, and a dedicated analytics stream without compounding storage costs. On a 32-camera recorder, that storage delta is material.

Deployment Considerations:

• Confirm PoE switch per-port budget before deploying at scale — the PTRZ motor and 8MP sensor together draw more than a static varifocal; a budget 802.3af-only switch may not deliver enough headroom on every port simultaneously under load.
• IVA Pro analytics metadata is natively consumed by Bosch BVMS; third-party VMS platforms vary significantly in how they ingest and act on analytic events — validate your VMS's IVA Pro integration before building alarm workflows around it in a non-Bosch stack.

This camera is the right call for perimeter and entry-point coverage at infrastructure sites — utilities, transit hubs, cold-chain logistics — where the combination of extreme temperature tolerance, IK11 physical hardening, and evidence-grade low-light performance all matter simultaneously, not just one of the three.
