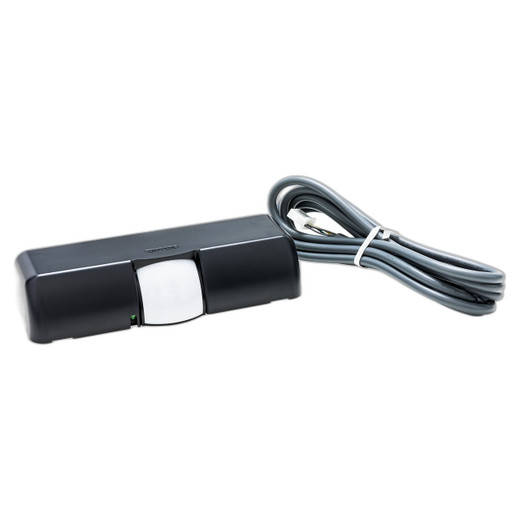

DMP OP-08CB Motion Detector

We've deployed the OP-08CB across dozens of access control retrofits and new DMP installations, and it remains the workhouse motion detector for legacy and current-generation DMP systems. The strength of the OP-08CB is operational simplicity: two wires, 12 or 24 VDC, and zone-level configuration entirely within the panel's menu structure. No separate power supplies, no IP gateways, no firmware downloads. On a typical door-access retrofit, wiring runs are under 200 feet, installation is 15 minutes, and integration testing is a single zone-open event. That simplicity comes at a trade-off — no analytics, no event metadata beyond open/close, no remote diagnostics. If your facility already has a DMP panel and you need RTE motion detection or door-hold bypass, the OP-08CB is the right call. If you're architecting a new system from scratch and need forensic-grade intrusion event timestamping, networked analytics, or multi-site aggregation, this detector won't serve that requirement.

Technical Highlights:

• Passive Infrared Sensor: Detects radiant heat from human bodies in the device's field of view. No moving parts, no calibration drift over time, and minimal false triggers once placement and sensitivity are tuned to the space. Better suited for stable indoor environments than ultrasonic or dual-tech sensors in high-traffic corridors.
• 13-Foot Ceiling Mount Envelope: Covers typical office and retail doorways without installation on door frames themselves, reducing damage risk and improving aesthetics. Verify mounting height in the facility during site survey — obstructions (HVAC vents, recessed lighting) reduce effective range by 20–30%.
• Dual Voltage Supply (12/24 VDC): Accommodates both legacy DMP systems (often 12V) and newer XT/XR panels (24V native). No field regulator or converter needed; select the voltage setting via a small jumper or switch on the detector circuit board before installation.
• Two-Conductor Wired Zone Input: Standard door/window alarm loop protocol. Compatible with any DMP zone input card; no proprietary adapters. Wiring is 18–16 AWG twisted pair, often run alongside existing access control door-strike wiring in conduit.
• Configurable Fail-Safe / Fail-Secure Output: Programmable relay behavior on power loss or detection trigger. Fail-safe is typical for RTE applications (open the door on sensor fault); fail-secure is used when the detector is protecting a high-security perimeter and you want the relay to energize the strike on alarm.

Deployment Considerations:

• Verify zone capacity on your target DMP panel before ordering. XT and XR series have different zone input card configurations; confirm the panel model in your rack and check the datasheet for available zone count. A maxed-out panel requires zone card expansion.
• Cable run length matters: DMP zone inputs are DC circuits with voltage drop over distance. Runs over 500 feet may experience signal level degradation, especially on 12V supply with thinner wire. Use 16 AWG or heavier for runs over 300 feet, and test zone supervision at the panel after installation.
• False-trigger tuning is site-specific. Sunlight through windows, HVAC vents blowing warm air, and nearby heat sources can trigger the detector. Install with sensitivity at the factory default, monitor for false alarms over a 48-hour commissioning period, then adjust downward if needed via the panel's menu.
• Do not terminate both conductors to the same terminal block lug or use a single screw-down connector. Use separate terminal positions, finger-tight each conductor, then verify continuity with a multimeter before powering the panel. Intermittent zone faults are almost always loose terminal connections.
• The OP-08CB has no built-in diagnostics or heartbeat signal to the panel. If the detector fails (sensor drift, relay stuck), the panel will not display a tamper or supervisory alarm unless you program a zone-timeout rule. Consider adding a hardwired supervisory loop if perimeter integrity is critical.

The OP-08CB is the right choice for integrators managing mid-market DMP installations where motion detection is a secondary feature, not the primary security architecture. If you're spec'ing a brand-new enterprise access control system or need multi-site event aggregation and heat-map analytics, look at networked IP-based motion detection instead. For door-hold RTE on legacy DMP systems, this detector is still the lowest-cost and fastest-to-deploy option. See the DMP catalog for compatible control panels and zone input cards.
