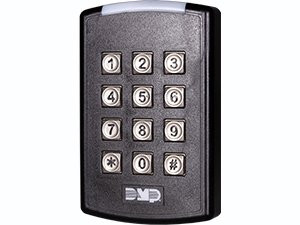

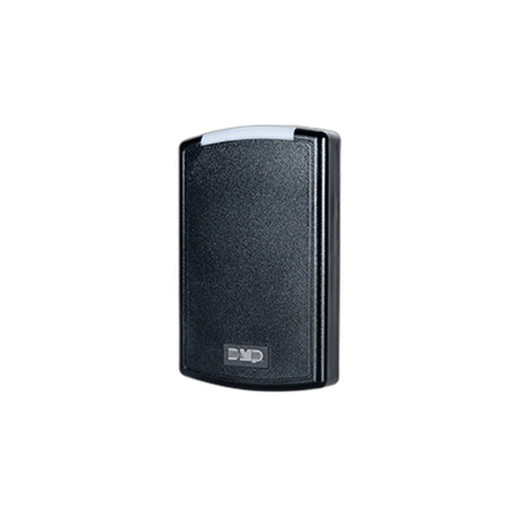

DMP ET20-7WS Multi-Technology Access Control Reader
Overview
The DMP ET20-7WS is a wired multi-technology credential reader designed for access control system integration in commercial and institutional environments. This compact reader measures 5.1" × 3.25" × 0.71" and delivers dual-credential support in a space-efficient form factor. The ET20-7WS (often searched as ET20 7WS) accepts both NFC/13.56MHz and 125kHz proximity credentials, making it compatible with a broad range of installed credential bases and upgrade scenarios where credential type flexibility is required.
Key Features
- Dual Credential Technology: Reads NFC/13.56MHz smart cards and 125kHz proximity cards from a single reader, eliminating the need for separate hardware per credential type.
- Compact Dimensions: At 5.1" wide × 3.25" tall × 0.71" deep, the ET20-7WS fits standard single-gang and multi-reader mounting configurations without bulky enclosures.
- Wired Connectivity: Direct hardwired connection ensures reliable operation independent of wireless network availability or interference.
- OSDP Communication: Open Supervised Device Protocol (OSDP) support enables encrypted, two-way communication with access control panels, improving security posture and reducing credential cloning risk.
- Wiegand Output: Industry-standard Wiegand protocol compatibility ensures integration with legacy and modern access control systems.
- Multi-Reader Deployment Ready: Scalable design supports single or multi-reader door configurations without field reconfiguration.
Integration & Compatibility
The ET20-7WS operates as a standalone reader or within networked access control ecosystems. OSDP support provides encrypted credential transmission, reducing vulnerability to eavesdropping and replay attacks—critical for facilities requiring FIPS 201 compliance or PIV/CAC integration. Wiegand output ensures backward compatibility with existing panels during phased upgrades. The reader's dual-credential architecture allows organizations to transition credential types incrementally, supporting mixed-fleet deployments where some users carry proximity cards and others use NFC badges.
Installation integrators should verify panel firmware version compatibility with OSDP before deployment. Wiegand output requires standard reader cable (26-bit or 37-bit format); confirm with your access control software documentation. The ET20-7WS supports typical door capacity planning of 1–4 readers per access point, depending on traffic volume and reader placement strategy.
Physical Specifications
Width: 5.1 inches | Height: 3.25 inches | Depth: 0.71 inches. The compact profile reduces wall penetration requirements and accommodates tight architectural spaces. Wired connection eliminates battery management, simplifying long-term operational cost models.
Jerry TildsenPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've evaluated the DMP ET20-7WS during several access control modernization projects, and the dual-credential capability consistently simplifies mixed-environment deployments. The reader handles both NFC and proximity standards without requiring panel-level credential routing logic, which reduces configuration overhead and post-deployment support calls.
Technical Highlights:
- Protocol Flexibility: OSDP and Wiegand dual-output support ensures the ET20-7WS fits both encrypted-first architectures and legacy infrastructure without additional converters.
- Compact Footprint: At 5.1" × 3.25", the reader integrates cleanly into standard architectural openings—no custom frames needed for typical door installations.
Deployment Considerations:
- Confirm your access control panel supports OSDP before specifying encrypted credential transmission; Wiegand fallback is available for legacy systems.
- Plan credential issuance around the reader's dual-technology capability; mixed credential types on a single reader require clear user communication to prevent authentication failures.
- Verify cable runs do not exceed panel maximum distance specifications—wired readers have no wireless redundancy, so power supply continuity is critical.
The ET20-7WS delivers solid credential flexibility without forcing a complete system overhaul. For integrators managing incremental access control upgrades, this reader reduces project timeline and training burden by supporting both card types in a single installation point.
