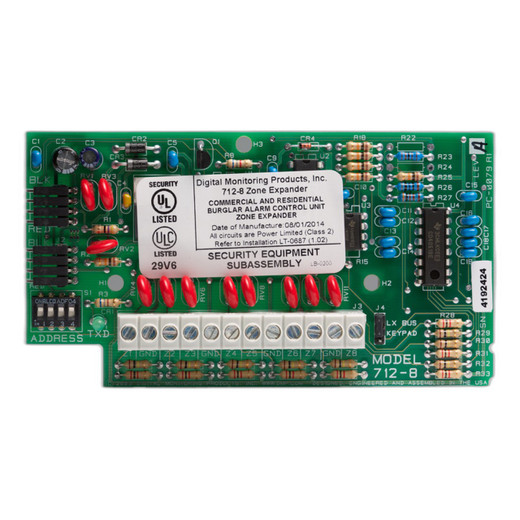

DMP 712-8 8-Zone Expansion Module
The DMP 712-8 is an addressable zone expansion module designed for DMP control panel systems that require additional input capacity. When your primary panel has exhausted its onboard zone slots, the 712-8 plugs directly into an available module slot, adding eight grounded burglary protection zones without requiring a panel replacement or system redesign. Operating at 15VDC with standard dip switch addressing, it integrates seamlessly into existing DMP architectures and includes pre-installed end-of-line resistors for zone supervision.
Key Features
- 8 Input Zones: Adds eight supervised zones to your DMP panel. Expands coverage across additional entry points, glass break circuits, or perimeter protection areas without core system replacement.
- Addressable Module Integration: Plug-in module slot design with dip switch addressing. No separate termination panels or external enclosures required — keeps the system compact and reduces installation footprint.
- Operating Voltage 15VDC: Standard DMP panel voltage. Supports input range 8.5–15 VDC to accommodate slight voltage variation in panel PSU design.
- EOL Resistors Included: Pre-installed end-of-line termination resistors. Eliminates separate resistor procurement and simplifies zone supervision setup — each zone is ready to supervise out of the box.
- Compact Form Factor: Three-hole mounting pattern for standard panel enclosure integration. Minimizes wiring runs and keeps expansion modules organized within the control panel cabinet.
- DMP Native Compatibility: Works exclusively with DMP control panels supporting addressable module expansion. Requires available module slot and current panel firmware — not a universal expander.
Zone expansion is a critical design decision in burglar alarm systems. As facilities add entry points, glass-break sensors, or environmental monitoring inputs, the original panel's onboard zone capacity is frequently exhausted. Rather than replace the entire control panel — a costly and disruptive operation — the 712-8 lets you preserve the existing system and add zones incrementally. This approach reduces total cost of ownership over a multi-year deployment lifecycle and avoids the need to migrate user programming, configuration, and historical event data.
Installation follows standard DMP module procedures. The 712-8 mounts directly into an unused module slot on compatible DMP panels. Dip switch configuration assigns each of the eight zones to specific panel zone numbers, and the included EOL resistors are pre-installed, eliminating field termination work. Before deployment, confirm that your DMP panel supports module-based expansion, has an available slot, and is running current firmware — older panel revisions may not enumerate or address the module correctly. Consult your panel's technical documentation and the 712-8 datasheet for exact dip switch settings.
The 8.5–15 VDC operating range accommodates minor PSU voltage sag under load — typical in systems with multiple modules drawing current simultaneously. This margin prevents nuisance zone supervision faults during peak loads. Zone circuits should be supervised according to DMP best practices: ensure all field wiring is shielded or twisted-pair, keep loop impedance below manufacturer limits, and test supervision continuity during commissioning. Glass-break and motion sensor zones, in particular, benefit from EOL supervision to detect tamper or open-circuit faults.
Warranty coverage is provided under DMP's standard manufacturer warranty terms. The 712-8 is a passive addressable module with no field-replaceable components — repair or replacement is performed at the manufacturer or authorized service center. System architects should plan module replacement lead time into maintenance contracts, particularly for aging installations where spare inventory may be scarce. Long-term support for DMP legacy systems depends on panel-level firmware updates; consult DMP lifecycle documentation if you are deploying this module into end-of-life panel platforms.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the DMP 712-8 across dozens of alarm system expansions, and it remains a reliable solution for on-premise zone exhaustion — the scenario where a facility adds a new building wing or tenant space and the original panel simply cannot accommodate the additional sensors. The 712-8 is straightforward: it plugs into an available module slot, gets a dip switch address, and the eight zones appear on the panel immediately. What differentiates it from a replacement panel scenario is cost and operational continuity. You avoid reprogramming user codes, re-arming schedules, and partition logic. For multi-building campuses running legacy DMP platforms, this module buys you 3–5 more years of useful life at a fraction of the capex. The pre-installed EOL resistors are a genuine operational benefit — no field technician needs to inventory or terminate resistors on-site, which reduces install time and supervision-fault callbacks. Nearest competitor is hardwiring an external relay module or swapping the entire panel; both incur higher labor and risk system downtime during commissioning. The real trade-off is that the 712-8 is DMP-native only — there's no hardware translation or gateway conversion if you later decide to migrate to a different alarm platform. Lock-in is real, but for DMP shops with existing integrations and user familiarity, that's an acceptable constraint.
Technical Highlights:
- Addressable Module Integration: Dip switch addressing assigns zones to the panel without external logic or gateway. Reduces wiring complexity and eliminates separate termination enclosures — everything integrates within the main panel cabinet.
- EOL Resistor Pre-Installation: End-of-line supervision resistors are factory-installed and factory-tested. Field installer time drops measurably, and zone supervision faults during commissioning are almost always wiring-related, not resistor integrity issues.
- 15VDC Operating Margin (8.5–15 VDC range): Accommodates minor PSU sag under multi-module load. Prevents nuisance zone supervision faults in systems running near maximum panel current capacity.
- 8 Supervised Input Zones: Each zone carries full supervision (open, short, and EOL resistance monitoring). Glass-break, motion, and door sensors can be wired to any zone without external conditioning.
- Compact Three-Hole Mounting: Fits standard DIN rail or panel enclosure rails. Reduces panel footprint overhead compared to external expansion relays or separate termination blocks.
Deployment Considerations:
- DMP Panel Compatibility is Mandatory: The 712-8 works only on DMP control panels with addressable module expansion capability. Older DMP platforms or non-DMP systems will not enumerate the module — verify your panel model and firmware version before purchase.
- Module Slot Availability: Your DMP panel must have an unused module slot. Some legacy panel enclosures are fully populated; confirm slot availability by visual inspection or panel documentation before ordering.
- Dip Switch Configuration: Each zone is assigned via dip switch settings on the module itself. Document the switch settings clearly during commissioning — future service technicians rely on this documentation when troubleshooting or reconfiguring zones.
- Wiring Best Practices: Zone loops should be shielded twisted-pair, especially if sensors are 50+ feet from the panel. Keep loop impedance below DMP specifications to avoid supervision false positives under load. Test all zones during final checkout.
- No Field Repair Option: The 712-8 contains no user-serviceable components. If the module fails, it must be replaced at the manufacturer or authorized service center — factor replacement lead time (typically 1–2 weeks) into support SLAs for critical facilities.
The 712-8 is the right choice if you're running DMP panels and facing zone exhaustion without budget for a complete system replacement. It's a proven, low-risk expansion path that preserves existing configuration and user familiarity. Explore the DMP catalog to review compatible panel models and other expansion or integration modules.
