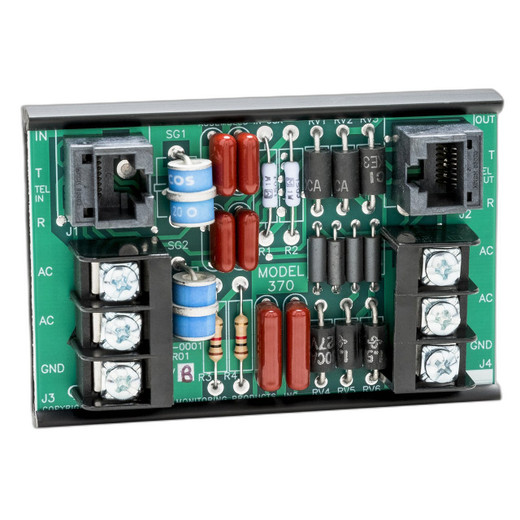

DMP 370RJ Lightning Suppressor

DMP 370RJ Lightning Suppressor

Overview

The DMP 370RJ is a dedicated lightning suppression device engineered for protection of security, telecommunications, and data systems against transient overvoltage events. This single-line suppressor provides immediate response to surge conditions, making it suitable for integration into field panel installations, door strike circuits, reader connections, and communications infrastructure where lightning strike risk or electrical transients pose equipment damage risk.

Lightning and surge events can degrade or destroy sensitive control circuits, reader interfaces, and communication lines. The 370RJ suppressor is designed to be installed in-line on protected circuits, responding instantly to voltage spikes and clamping excess energy before it reaches downstream equipment. This protection is especially critical in security access control systems, where reader failures or control board damage can compromise site safety and create costly downtime.

Key Features

• Single-line suppression: Protects individual circuits without requiring panel-level restructuring
• Fast response time: Nanosecond-level reaction to transient overvoltage events
• Compact form factor: Fits in-line on low-voltage control and communication wiring
• Multi-event durability: Designed to survive and suppress multiple surge events over the product lifetime
• Field-installable: No special tools or commissioning required for standard wiring integration
• Broad compatibility: Works with 12V/24V control circuits, reader power feeds, and low-voltage communication lines common in security systems

Integration & Compatibility

The DMP 370RJ integrates directly into existing security wiring without requiring system reconfiguration. Installation points typically include:

• Door strike circuits on access control panels
• Reader power and communication lines
• Intercom and communication bus wiring
• Outdoor sensor circuits exposed to lightning risk
• Auxiliary output circuits controlling third-party devices

The suppressor is rated for standard low-voltage security wiring installations and operates independently of control system logic or communication protocol. It provides passive protection without requiring firmware updates, configuration, or monitoring.

Deployment Considerations

The 370RJ is most effective when installed at the point where external wiring enters panel enclosures or where long cable runs increase lightning strike exposure. Installers should position the suppressor close to the equipment being protected to minimize the length of unprotected circuit between suppressor and sensitive components. In outdoor or rooftop installations, or in areas with frequent electrical storms, dedicated surge suppression on critical circuits is a standard best practice to prevent catastrophic equipment loss.

Eden Phillips

I've specified the DMP 370RJ on several site hardening projects where lightning risk was a documented concern. The 370RJ addresses a real gap in field-level surge protection for access control and telecommunications circuits. Unlike panel-mounted suppression which can miss individual circuit paths, the 370RJ sits directly on the circuit it protects, ensuring no surge energy bypasses the protection zone.

Technical Highlights:

• Fast suppression response: Nanosecond reaction time prevents voltage spikes from reaching sensitive semiconductors in readers and control logic
• Single-circuit protection: Protects individual circuits without cross-talk or shared suppression paths that can degrade response on parallel lines
• Passive operation: Requires no power supply, monitoring, or configuration—install and forget deployment model

Deployment Considerations:

• Install at the panel entry point for outdoor circuits or on any line subject to long outdoor cable runs where lightning coupling is probable
• Verify suppressor placement is physically close to the protected device to minimize unprotected circuit length
• In multi-strike environments, the 370RJ is designed to suppress repeated events, but replacement intervals should be reviewed based on local lightning frequency data

For integrators deploying systems in areas with documented lightning activity or where outdoor infrastructure is required, the 370RJ is a cost-effective, zero-maintenance hardening step that prevents catastrophic panel damage and extends system uptime. It's a standard inclusion in my field panel protection specifications.
