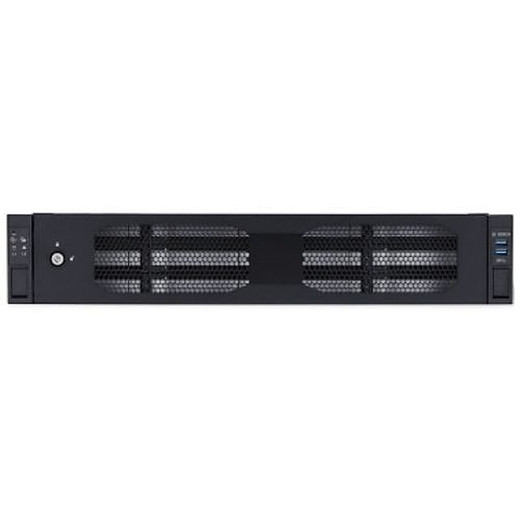

Bosch DIVAR IP all-in-one 7000 Management appliance 2U w/o HDD - DIP-74C0-00N

Bosch DIP-74C0-00N DIVAR IP All-in-One 7000 Management Appliance 2U

Overview

The Bosch DIP-74C0-00N is a 2U rackmount management appliance in the Bosch DIVAR IP 7000 surveillance line, shipped without hard drives so you configure storage to match your actual retention and channel requirements. That matters in enterprise deployments where a one-size-fits-all storage bundle either leaves capacity on the table or forces an immediate upgrade. The DIP-74C0-00N (often searched as DIP 74C0 00N) slots into a standard 19-inch rack and draws from any 100–240 VAC feed at 50/60 Hz, so it travels without a transformer to international sites or mixed-voltage data centers.

Key Features

• 2U Rackmount Form Factor: occupies two rack units in a standard 19-inch enclosure, keeping your video management infrastructure consolidated in the same rack as your networking gear and storage — no dedicated video-room shelf needed.
• No-HDD Configuration: ships drive-free, letting you spec the exact capacity and drive class (surveillance-optimized, enterprise SAS, NVMe) for your retention policy rather than paying for bundled drives you may swap out anyway.
• Universal AC Input (100–240 VAC, 50/60 Hz): the wide-range power supply accepts any standard mains voltage globally, so the same SKU deploys in North America, Europe, or Asia without a step-down transformer or separate power SKU.
• 200 W Max Power Consumption: at full load the appliance draws under 200 W — plan this into your UPS and PDU capacity calculations when populating a dense rack. A single standard 20 A circuit handles multiple units with headroom.
• Short Circuit Protection at 250 V / 20 A: built-in protection at the rated spec reduces the risk of cascading failure on your rack PDU if an internal fault occurs — the appliance isolates rather than tripping upstream breakers.
• 0–40 °C Operating Range: suitable for conditioned server rooms and wiring closets. If your installation runs warmer than 40 °C ambient, plan supplemental cooling or choose an appliance rated for higher operating temperatures before committing to this unit.

Integration & Compatibility

As part of the network video recorder and management appliance category, the DIP-74C0-00N is designed to integrate within the Bosch Video Management System (BVMS) ecosystem. For storage planning and drive selection guidance, match drive capacity to your camera count, resolution, and retention window before purchasing — the no-HDD configuration means storage is a required separate line item, not an optional add-on. Pair with a managed PoE switch at the network layer to feed cameras and keep video traffic segmented from your general LAN.

Frequently Asked Questions

Q: Does the DIP-74C0-00N include hard drives?

A: No. The DIP-74C0-00N ships without hard drives. You select and install drives separately to match your storage capacity and retention requirements.

Q: What rack space does the DIP-74C0-00N require?

A: The appliance occupies 2U in a standard 19-inch rack.

Q: What power supply does the DIP-74C0-00N require?

A: The unit accepts 100–240 VAC at 50/60 Hz, making it compatible with standard mains voltages globally. Maximum power consumption is 200 W.

Q: What is the operating temperature range for the DIP-74C0-00N?

A: The appliance is rated for 0 to 40 degrees C operating temperature with 10–90% relative humidity (non-condensing). It can be stored between -20 and 70 degrees C.

Q: What short circuit protection does the DIP-74C0-00N provide?

A: The unit includes short circuit protection rated at 250 V, 20 A.

Karl Wilson

The DIP-74C0-00N is the drive-free variant of the DIVAR IP 7000 management appliance — the configuration I'd actually recommend for enterprise integrators who want to standardize on their own drive spec rather than inherit whatever bundle ships with the box. The 200 W max draw is the number worth writing into your rack power plan before procurement.

Technical Highlights:

• Universal 100–240 VAC Input: one SKU covers every standard mains voltage, which simplifies purchasing and spares inventory across multi-site deployments with mixed regional power infrastructure.
• 0–40 °C Operating Range: standard conditioned server room envelope — tighter than some hardened appliances, so verify your wiring closet ambient before installing in a non-HVAC space.
• Short Circuit Protection (250 V / 20 A): rated protection at the input stage means an internal fault trips locally rather than upstream, which reduces the blast radius on a shared PDU in a dense rack.

Deployment Considerations:

• The no-HDD configuration is a feature, not a gap — but it means storage is a required separate procurement step. Size drives against your camera count, resolution, and retention window before the appliance arrives on site.
• The 40 °C ceiling is a real constraint in poorly ventilated telecom closets or outdoor enclosures without active cooling. Plan airflow accordingly or the appliance will thermal-throttle or alarm.

This unit is best positioned in enterprise physical security projects where an integrator manages their own drive-selection standard — healthcare campuses, corporate headquarters, or multi-building education facilities running a centralized Bosch BVMS deployment where storage tiers are planned per-site.
