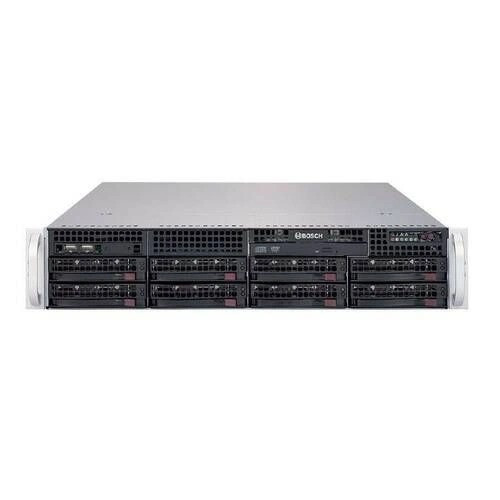

Bosch DIVAR IP all-in-one 7000 Management appliance 3U w/o HDD - DIP-74G0-00N

Bosch DIP-74G0-00N DIVAR IP All-in-One 7000 Management Appliance 3U

Overview

The Bosch DIP-74G0-00N is a 3U rack-mounted network video management appliance built for enterprise and institutional security deployments that need a high-channel-count, high-capacity recording platform under a single pane of glass. Supporting up to 256 camera channels and up to 288 TB of raw storage in a single chassis, this appliance ships without drives — giving system integrators the flexibility to specify the exact drive configuration that matches retention requirements, rather than paying for fixed-capacity bundles that may not align with the project scope. It runs Microsoft Windows Server IoT 2022 for Storage, so the management layer is a known quantity for IT teams responsible for patching, backup policy, and domain integration. The DIP-74G0-00N (often searched as DIP 74G0 00N) is NDAA-compliant and TAA-compliant, which matters for federal, state, and education projects where procurement rules explicitly require it.

Key Features

• 256-Channel Capacity: A single 3U chassis handles up to 256 IP camera streams — enough to cover a large campus, multi-building hospital complex, or transit hub without deploying multiple servers or a distributed recording architecture. Fewer servers mean fewer licenses, fewer failure points, and simpler maintenance windows.
• Up to 288 TB Scalable Storage: The drive-free baseline lets you right-size storage for the actual project — calculate your retention requirement (channels × bitrate × days), then populate accordingly. At 288 TB maximum, you can sustain 30-day retention across 256 high-resolution streams without an external NAS shelf on most deployments.
• Redundant, Hot-Swappable 80 PLUS Titanium Power Supplies: At 93% efficiency and a 317 W actual output draw, the PSU wastes less heat than Bronze- or Gold-rated alternatives. Hot-swap redundancy means a PSU failure during a live deployment does not require a maintenance window or recording interruption — the second unit carries the load while you swap the failed module. In 24/7 security infrastructure, this is the difference between a scheduled PM task and an unplanned outage.
• 341 W Max Power Consumption: The system peaks at 341 W (344 VA apparent) and dissipates up to 1,162 BTU/h — plan rack cooling accordingly. In a dense rack with other equipment, verify that your CRAC or in-row cooling can handle the cumulative BTU load before commissioning.
• 100–240 VAC Auto-Ranging Input: The 100–240 VAC, 50/60 Hz input range means this appliance deploys in North American, European, and international facilities without a step-down transformer or country-specific SKU. For multi-national rollouts or government facilities with non-standard power infrastructure, this eliminates a procurement variable.
• Microsoft Windows Server IoT 2022 for Storage: Running a purpose-built Windows Server IoT OS means the appliance fits cleanly into existing Active Directory environments, Group Policy frameworks, and IT-managed patching cycles. Security teams are not handed an embedded Linux appliance with an opaque update mechanism — they get a platform they already know how to manage, audit, and harden.
• NDAA and TAA Compliant: The DIP-74G0-00N carries both NDAA Section 889 and TAA compliance certifications — verified for this SKU. This is a hard gate on federal contracts, GSA schedules, and an increasing number of state and local government bids. Specify with confidence on those projects without needing a waiver or substitution.
• Broad Safety and EMC Certification Stack: CB, UL, CE, UKCA, FCC, VCCI, RCM, KC, BSMI, SABS, RoHS, WEEE, China RoHS, and BIS certifications cover deployments across North America, Europe, Asia-Pacific, South Africa, and India — relevant for global enterprise and multi-national integrators who need one appliance SKU to clear customs and local inspection across regions.

Integration and Compatibility

As part of the Bosch video security portfolio, the DIP-74G0-00N is designed to integrate with Bosch's BVMS (Building Video Management Software) ecosystem and supports the DIVAR IP 7000 series management platform. The Windows Server IoT 2022 foundation allows integration with enterprise IT infrastructure including Active Directory, SNMP-based monitoring, and standard Windows backup solutions. For integrators evaluating network video recorders and appliances at this channel count, the drive-free design is particularly well suited to projects using a storage planning approach where retention targets are calculated per-project rather than fixed at procurement. The appliance's broad certification stack also supports international deployments managed through a centralized video management software platform. When specifying PoE switches to feed cameras into this appliance, plan switch capacity around the 256-channel ceiling — at full population, you will need multiple managed PoE switches with sufficient uplink bandwidth to the appliance.

Frequently Asked Questions

Q: Is the Bosch DIP-74G0-00N NDAA Section 889 compliant?

A: Yes. The DIP-74G0-00N carries verified NDAA compliance, making it eligible for federal, state, and local government projects where Section 889 compliance is a procurement requirement.

Q: Does the DIP-74G0-00N ship with hard drives included?

A: No. The 'w/o HDD' designation means the appliance ships without drives. You specify and install drives separately, up to the 288 TB maximum supported capacity. This lets you match drive type and total capacity to your exact retention requirements.

Q: What operating system does the DIP-74G0-00N run?

A: It runs Microsoft Windows Server IoT 2022 for Storage — a purpose-built variant of Windows Server designed for storage and recording appliances. It supports Active Directory integration, Group Policy, and standard Windows patching workflows.

Q: What is the maximum channel count for the DIP-74G0-00N?

A: The DIP-74G0-00N supports up to 256 IP camera channels in a single 3U chassis.

Q: How much power does the DIP-74G0-00N consume, and what are the rack cooling requirements?

A: Maximum power consumption is 341 W with a maximum heat dissipation of 1,162 BTU/h. Plan rack and room cooling to accommodate this load, especially in dense rack configurations. The redundant, hot-swappable power supplies are rated 80 PLUS Titanium at 93% efficiency, which keeps waste heat lower than less-efficient PSU designs.

Q: Is the DIP-74G0-00N TAA compliant for GSA schedule purchases?

A: Yes. The DIP-74G0-00N holds TAA compliance certification, supporting procurement through GSA schedules and other government contract vehicles that require Trade Agreements Act compliance.

Eden Phillips

When I look at the DIP-74G0-00N, the spec that defines where it belongs is the 256-channel ceiling in a 3U footprint combined with the drive-free configuration. On large campus or multi-site projects where the integrator needs to calculate retention precisely — not just accept whatever a fixed-capacity SKU ships with — this is the correct starting point. The appliance's 80 PLUS Titanium PSUs at 93% efficiency also matter more than they sound: at 341 W max draw across a 24/7 runtime, the efficiency gain over a Gold-rated PSU compounds into real power cost savings over a 5-year deployment.

Technical Highlights:

• Redundant Hot-Swap PSU at 93% Efficiency: Dual 800 W-rated, hot-swappable supplies mean a PSU failure is a maintenance task, not an incident. The 93% Titanium-rated efficiency keeps actual draw at 317 W typical — significantly less waste heat than Gold-rated alternatives pushing the same load.
• Up to 288 TB Storage, No Drives Included: The drive-free model gives the integrator full control over drive selection — surveillance-rated HDDs, enterprise SSDs, or mixed tiers depending on hot-vs-cold storage strategy. At 288 TB max, sustained 30-day retention across 256 channels is achievable without an external storage shelf on most camera bitrate profiles.
• Windows Server IoT 2022 for Storage: IT departments don't have to learn a proprietary OS. Active Directory, SNMP, and standard Windows patch management all apply — which is meaningful on enterprise and government accounts where the IT security team, not just the physical security team, has to sign off on the appliance.

Deployment Considerations:

• At 1,162 BTU/h maximum heat dissipation, this appliance needs deliberate rack placement in a properly cooled environment. In a 42U rack with other recording and switching equipment, the cumulative BTU load can exceed what standard room air handles — verify in-row or overhead cooling capacity before finalizing the rack design.
• The nominal input current of 1.4 A at 240 VAC is the steady-state draw — not the inrush or peak. When specifying UPS capacity or PDU circuit sizing, use the 341 W / 344 VA figures and apply the appropriate safety margin for your power infrastructure standards.

The DIP-74G0-00N is the right appliance for enterprise security teams and integrators delivering large-scale, government-eligible deployments — specifically where NDAA/TAA compliance is a hard requirement, IT integration with existing Windows infrastructure is expected, and the drive configuration needs to be specified per-project rather than fixed by the vendor.
