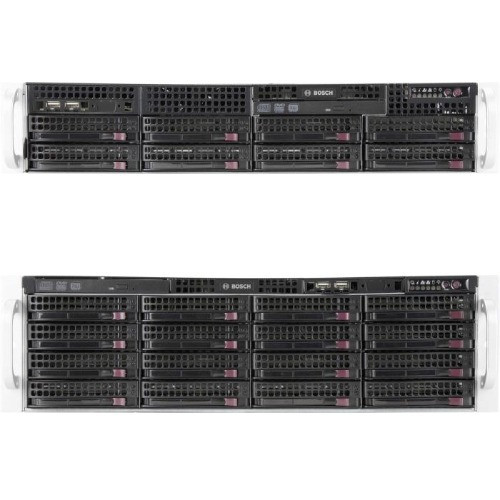

Bosch DIVAR IP ALL-IN-ONE 7000MANAGEMENT APPLIANCE 2U 8X18TB - DIP-74CI-8HD

Bosch DIP-74CI-8HD DIVAR IP All-in-One 7000 Management Appliance, 2U 8×18TB

Overview

The Bosch DIP-74CI-8HD is a 2U rack-mounted network video recorder and management appliance built for large-scale surveillance deployments that need serious channel density, resilient storage, and a hardened OS — all in a single chassis. Supporting up to 256 IP camera channels at 550 Mbit/s sustained recording bandwidth, this appliance targets enterprise security operations centers, campus-wide installations, and critical infrastructure sites where a patchwork of separate servers and NVRs would create both management overhead and single points of failure. It ships with 8×18TB pre-installed drives in a RAID-5 configuration and runs Microsoft Windows Server IoT 2022 for Storage Standard, giving you a purpose-built platform that integrates with enterprise IT management frameworks without requiring a separate OS license. NDAA and TAA compliance make the DIP-74CI-8HD a viable option for federal, state, and municipal deployments where supply-chain provenance requirements apply.

Key Features

• 256-Channel IP Camera Capacity: A single 2U appliance manages up to 256 IP camera streams — enough for a mid-sized campus or multi-building enterprise without cascading recording servers. Fewer boxes means fewer points of failure and a simpler maintenance footprint for your security team.
• 550 Mbit/s Sustained Recording Bandwidth: At 550 Mbit/s, the DIP-74CI-8HD can handle a dense mix of high-resolution streams — roughly 256 channels of 1080p at standard bit rates, or a smaller number of 4K/multi-sensor cameras running higher-quality streams. Size your camera mix against this ceiling before commissioning to avoid throttling at peak.
• 8×18TB RAID-5 Pre-installed (144TB Raw): RAID-5 across eight drives provides fault tolerance against a single drive failure while preserving usable capacity. The pre-installed configuration ships ready to deploy — no drive sourcing, no RAID provisioning on-site. For deployments requiring longer retention at higher resolutions, plan your per-channel bit rate against usable RAID-5 capacity (~126TB effective at standard parity overhead) to confirm your retention window before go-live.
• Redundant, Hot-Swappable Power Supplies (80 PLUS Titanium, 93% Efficiency): Dual hot-swappable PSUs mean a power supply failure does not take down recording. The 80 PLUS Titanium rating at 93% efficiency reduces heat output and lowers operating costs in 24/7 data center environments — the difference between Titanium and a Gold-rated PSU adds up measurably over multi-year operation.
• 292W Actual / 314W Max Power Draw: At 292W actual draw (320 VA apparent), the DIP-74CI-8HD fits comfortably on a 15A circuit with headroom. Max heat dissipation of 1,071 BTU/h is manageable in standard IDF/MDF environments — no dedicated cooling beyond normal rack ventilation required for a single unit.
• Windows Server IoT 2022 for Storage Standard: A purpose-built IoT edition of Windows Server means the appliance integrates with Active Directory, Group Policy, and enterprise monitoring tools your IT team already manages. It also opens the door to Bosch VMS and third-party video management software that run on Windows-based platforms without requiring a hypervisor layer.
• NDAA Section 889 and TAA Compliant: Both certifications are verified for this SKU. For public sector or federal contractor deployments where compliance documentation is required during procurement, the DIP-74CI-8HD meets those requirements out of the box — eliminating the compliance review cycle that often delays camera and NVR procurement on government projects.
• Broad Certification Portfolio (CB, UL, CE, UKCA, FCC, VCCI, RCM, KC, BSMI, SABS, RoHS, WEEE, China RoHS, BIS): This coverage simplifies international deployments and satisfies requirements for multi-region enterprise customers who need consistent equipment across North American, European, and Asia-Pacific sites.
• Wide-Range AC Input (100–240 VAC, 50/60 Hz): Universal AC input means the same SKU deploys in any country without a step-down transformer — a practical advantage for multinational organizations standardizing on a single NVR platform.

Integration and Compatibility

Running Microsoft Windows Server IoT 2022 for Storage Standard, the DIP-74CI-8HD is designed to integrate with Bosch's own video management software as well as third-party VMS platforms that support Windows-based recording servers. The appliance's 256-channel capacity and 550 Mbit/s recording bandwidth make it a fit for large Bosch IP cameras deployments — explore the Bosch surveillance line for compatible camera models. For network infrastructure planning, pair this appliance with a managed PoE switch sized to the channel count and bandwidth requirements of your camera layer. Storage and retention planning guidance is available in the storage and retention guide to help you validate that the 144TB raw capacity meets your retention window at target bit rates. Integrators deploying across mixed-vendor camera environments should verify ONVIF profile support for third-party cameras against the Bosch compatibility list prior to commissioning. For large-scale NVR deployments, review the network video recorder category for alternative channel configurations within the DIVAR IP family.

Frequently Asked Questions

Q: Is the DIP-74CI-8HD NDAA Section 889 compliant?

A: Yes. NDAA compliance is a verified certification for the DIP-74CI-8HD, making it eligible for federal, state, and municipal procurement where Section 889 supply-chain requirements apply.

Q: What is the maximum number of IP camera channels the DIP-74CI-8HD supports?

A: The DIP-74CI-8HD supports up to 256 IP camera channels at a maximum sustained recording bandwidth of 550 Mbit/s.

Q: What RAID configuration does the DIP-74CI-8HD ship with?

A: It ships pre-configured with RAID-5 across 8×18TB drives (144TB raw). RAID-5 tolerates a single drive failure without data loss. Effective usable capacity will be lower than the raw total due to RAID-5 parity overhead.

Q: What operating system does the DIP-74CI-8HD run?

A: The appliance runs Microsoft Windows Server IoT 2022 for Storage Standard — a purpose-built edition that supports enterprise IT management tools including Active Directory and Group Policy.

Q: What is the power consumption of the DIP-74CI-8HD, and does it have redundant power supplies?

A: Actual power draw is 292W (314W max, 320 VA apparent). The appliance includes redundant, hot-swappable 80 PLUS Titanium power supplies rated at 93% efficiency, so a single PSU failure does not interrupt recording.

Q: What is the warranty on the DIP-74CI-8HD?

A: The DIP-74CI-8HD carries a 5-year manufacturer warranty.

James Everett

The DIP-74CI-8HD is one of the more serious all-in-one NVR platforms I've seen at the 2U form factor — 256 channels, 550 Mbit/s sustained, and 144TB pre-staged in RAID-5, all with redundant Titanium-rated PSUs. For a project I reviewed recently, this appliance replaced three separate recording servers and cut the rack footprint in half while adding PSU redundancy that the previous setup didn't have.

Technical Highlights:

• 550 Mbit/s Recording Bandwidth: This is the hard ceiling to plan against. At 256 channels, you're averaging about 2.1 Mbit/s per camera — comfortable for 1080p at moderate quality settings, but you'll want to model your exact mix if you're including 4K or multi-sensor cameras that run 8–20 Mbit/s each.
• RAID-5 Across 8×18TB: RAID-5 gives you single-drive fault tolerance with good write performance for surveillance workloads. With eight drives, you lose one drive's worth of capacity to parity — call it ~126TB usable. At 2 Mbit/s average per channel across 256 cameras, you're looking at roughly 55–60 days of continuous retention at that usable capacity.
• 80 PLUS Titanium PSU at 93% Efficiency: In a 24/7 recording environment, that efficiency rating matters over a 5-year product life. At 292W actual draw running continuously, the difference between a Titanium and a Bronze PSU is roughly 40–50W of wasted heat — real money in a dense rack environment, and less thermal load on your cooling infrastructure.

Deployment Considerations:

• Verify your VMS license covers 256 channels before commissioning — the appliance provides the hardware capacity, but software channel licenses are a separate line item on most Bosch VMS and third-party platform quotes.
• At 1,071 BTU/h max heat dissipation, a single DIP-74CI-8HD is manageable in a standard rack, but if you're deploying multiples in the same enclosure, model the aggregate thermal load against your HVAC capacity — stacked 2U appliances in a 42U rack can push 10,000+ BTU/h collectively.

For a large campus security operation — university, hospital complex, or government facility — running a consolidated recording architecture, the DIP-74CI-8HD is a strong fit where you need maximum channel density, supply-chain compliance documentation, and a platform that your IT team can manage inside existing Windows Server tooling without standing up a separate virtualization layer.
