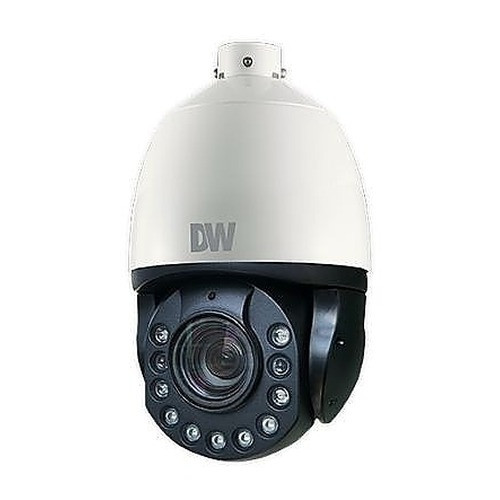

Digital Watchdog DWC-XPZA08Mi 8MP 4K 40x Zoom PTZ IP Camera

Digital Watchdog DWC-XPZA08Mi 8MP 4K PTZ Camera

The Digital Watchdog DWC-XPZA08Mi is a professional-grade 4K PTZ IP camera engineered for comprehensive surveillance of large areas requiring exceptional detail and dynamic coverage. Built on a 4K 1/1.8" CMOS sensor delivering 8MP resolution at 30fps, this camera combines ultra-high-definition imaging with powerful pan-tilt-zoom mechanics to meet the demands of commercial complexes, parking facilities, transportation hubs, and critical infrastructure monitoring applications.

Key Features

• 8MP 4K Resolution: 3840 x 2160 active pixels capture four times the detail of standard 1080p, enabling forensic-quality image analysis and positive identification at distance
• 40x Optical Zoom with 16x Digital Zoom: Investigate distant subjects without quality loss; focal length range of 6.5–260mm provides exceptional flexibility from wide-angle monitoring to telephoto detail capture
• 360° Endless Pan with ±10° to 90° Tilt: Pan speeds to 250°/sec and tilt speeds to 130°/sec enable rapid repositioning; 500 presets with 8 groups and 4 pattern sequences automate routine surveillance workflows
• Extreme Low-Light Performance: 0.005 lux color sensitivity and 1148-foot Smart IR range ensure surveillance capability in complete darkness without image degradation
• Auto Tracking & Parking: Intelligent motion detection and automated preset return streamline unattended operation across extended monitoring periods
• Advanced Image Processing: Smart DNR™ 3D noise reduction, True WDR, digital image stabilization, and de-fog technology deliver clean, stable video in challenging lighting and weather conditions
• Rugged Environmental Rating: IP66 weather protection and IK10 impact rating ensure reliability in outdoor and harsh industrial environments; operating range -22°F to 140°F
• Professional Connectivity: ONVIF Profile G, S, T, and M conformance; H.265/H.264/MJPEG codec support; quad-stream capability with configurable bitrate control (CBR/VBR/Hybrid)
• PoE-Powered Simplicity: Single-cable installation via high-power PoE eliminates dedicated power infrastructure; 75W consumption with included injector
• Multi-Layer Security: HTTPS/TLS encryption, digest authentication, IP filtering, and multi-user authority protect against unauthorized access

Technical Highlights

The camera delivers maximum 30fps streaming at full 4K resolution with adaptive bitrate control (32Kbps–16Mbps primary stream). Motorized varifocal optics and auto-focus maintain sharpness across the entire zoom range. Eight programmable privacy masks provide flexible redaction for sensitive areas. Comprehensive I/O interfaces include 4 alarm inputs, 2 outputs, and dual audio channels for integrated audio/analytics ecosystems.

Applications

Ideal deployments include large perimeter security, high-traffic commercial facilities, parking structure monitoring, stadium and venue surveillance, traffic enforcement, port and logistics facilities, and any application requiring long-range detail capture with autonomous tracking capability.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The DWC-XPZA08Mi represents a mature PTZ platform suitable for organizations requiring predictable, standards-based surveillance infrastructure. The 40x optical zoom combined with 4K resolution enables meaningful identification at distances where competing 2MP PTZ cameras degrade rapidly. Smart IR performance at 0.005 lux color maintains color information during twilight hours when motion is highest, improving forensic utility.

True WDR and 3D DNR processing reduce post-processing overhead in hybrid lighting environments common to commercial sites. ONVIF multi-profile compliance and configurable streaming modes facilitate integration into heterogeneous security ecosystems. The IK10 rating and IP66 sealing make outdoor deployment straightforward without protective enclosures.

Auto-tracking and preset recall reduce operator fatigue during extended monitoring shifts. At 75W PoE consumption, standard high-power injectors and industrial PoE switches provide cost-effective power distribution over standard Cat5e cabling to 300 feet, eliminating dedicated 24VAC power distribution in retrofit scenarios.

Product Documentation
