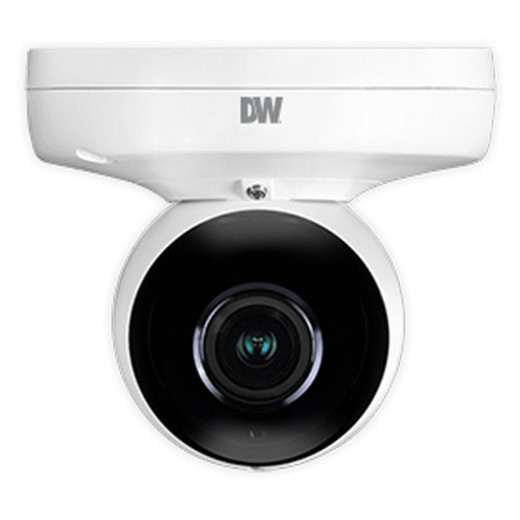

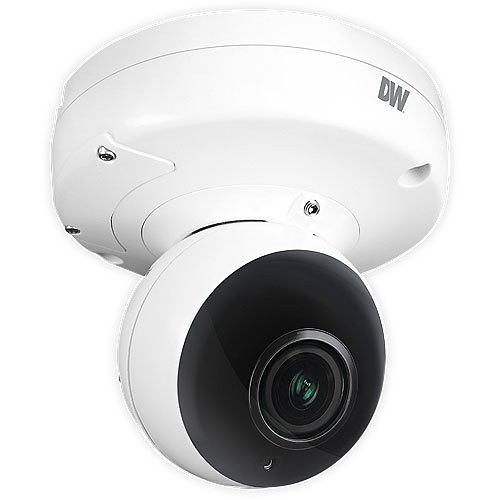

Digital Watchdog DWC-MVD8WiATW 8MP 4K AI Turret Camera

Digital Watchdog DWC-MVD8WiATW 8MP 4K AI Turret Camera

The DWC-MVD8WiATW is a fixed-turret outdoor IP camera built for 24/7 surveillance in challenging environments. It combines 8MP resolution (3840 × 2160), hardware-accelerated AI analytics, motorized optics, and Smart IR illumination into a single PoE-powered unit. This positions it as a mid-to-high-end choice for integrators deploying perimeter, parking, and industrial site surveillance where detail and real-time behavioral detection matter.

Key Features

• 8MP 4K Resolution with 90.3° to 33.1° FOV: The 1/2.8" CMOS sensor captures 3840 × 2160 pixels, delivering sufficient detail for license plate recognition and facial identification across typical outdoor distances. The motorized vari-focal lens (2.7–13.5mm) with auto-focus means you can narrow framing or widen it on-site without swapping hardware — reduces pre-installation guesswork and eases field adjustments.
• AI-Powered Analytics (Hardware-Accelerated): Intrusion detection, line crossing, loitering, tailgating, and object counting run on the camera itself rather than taxing a backend server. For 8–16 camera deployments, this dramatically cuts NVR CPU load and enables real-time alarms without latency.
• Smart IR with 100-Foot Range: Infrared illumination reaches 100 feet in total darkness, scaling the camera's utility from dusk through midnight hours. Minimum illumination drops to 0.0 lux in B/W mode and 0.09 lux in color, meaning dim parking lots and unlit perimeters stay visible. The trade-off: IR washout on reflective surfaces (metal, glass) is common — position accordingly or enable de-fog processing.
• True WDR 120dB for High-Contrast Scenes: When sun and shadow coexist (loading docks, warehouse entries), 120dB dynamic range holds detail in both bright and dark zones without ghosting. This matters more than raw megapixels in real-world lighting variance.
• IP66 and IK09 Vandal Rating: IP66 blocks rain and dust; IK09 withstands impact equivalent to a 5kg weight dropped from 1.25m. For outdoor industrial sites and public-facing areas, this durability justifies the cost over consumer-grade cameras. Aluminum die-cast housing resists corrosion better than plastic.
• PoE Power at 14.9W Typical: Standard 802.3af PoE delivery means no separate power supply, simplified cabling, and reduced rack complexity. At under 15W, this camera won't strain older switches with marginal PoE budgets — verify your switch's total PoE capacity if deploying 8+ units.
• Dual-Stream H.264/H.265/MJPEG Encoding: H.265 cuts bitrate roughly 40–50% versus H.264 at equivalent quality — meaningful for 24/7 recording across multiple cameras on bandwidth-constrained networks. Multi-rate encoding (100Kbps–10Mbps) allows simultaneous HD preview and full-bitrate recording without a secondary camera feed.
• Integrated microSD Slot (Up to 1TB): Onboard recording buffers brief network outages and stores forensic clips without relying on the NVR. Useful for remote sites with intermittent WAN connectivity.
• 16 Privacy Masks and Motion Detection: Mask sensitive zones (windows, neighboring properties) before streaming; motion triggers alarms or recording. Reduces false positives in high-traffic areas.
• ONVIF Compliance and Multi-VMS Support: Integrates with network video recorders from Milestone, Genetec, ExacqVision, and DW Spectrum. Gigabit Ethernet (1000Base-T) supports integration without proprietary middleware.
• Operating Range -4°F to 122°F (-20°C to 50°C): Wider than entry-level cameras; handles temperate climates and moderate freezing but not Arctic or desert extremes. Humidity tolerance of 10–90% is standard for sealed outdoor housings.

Integration & Compatibility

The DWC-MVD8WiATW works within any ONVIF-compliant VMS and pairs naturally with outdoor IP cameras from the same Digital Watchdog line. Connection is Gigabit Ethernet only (no coax, no analog fallback). For legacy systems requiring analog output, this camera is not a fit.

When to Choose a Different Model

If you need 180° or 360° pan-tilt coverage, consider a PTZ camera instead — fixed turrets lock into a single view. If the site lacks network infrastructure for Gigabit Ethernet runs, analog alternatives or wireless mesh systems may be faster to deploy. For extremely high-traffic retail or crowns where crowd counting is the primary metric, investigate higher-megapixel variants or multi-sensor cameras in the Digital Watchdog catalog.

Frequently Asked Questions

Q: Does the DWC-MVD8WiATW support two-way audio?

A: The available specification evidence does not confirm two-way audio capability. Consult the full datasheet or contact the manufacturer to confirm audio I/O if this is a deployment requirement.

Q: What is the warranty coverage?

A: A five-year warranty covers defects in materials and workmanship. Confirm RMA procedures and coverage scope directly with the distributor or manufacturer.

Q: Can I mount the DWC-MVD8WiATW on a pole, ceiling, or wall?

A: Yes. The turret form factor and compact dimensions (4.92" × 4.4") support pole, wall, and ceiling installation. Verify that mounting hardware is supplied or compatible with your installation method.

Q: What is the bandwidth consumption for H.265 recording?

A: Bitrate ranges from 100Kbps to 10Mbps depending on resolution, frame rate, and scene complexity. H.265 encoding typically reduces this by 40–50% compared to H.264. Enable adaptive bitrate control to optimize bandwidth for your network.

Q: Is the DWC-MVD8WiATW NDAA Section 889 compliant or TAA-listed?

A: Compliance certifications are not confirmed in the available specification evidence. If NDAA/TAA compliance is mandatory, request official documentation from the manufacturer before purchase.

Q: Does the microSD card slot support hot-swapping?

A: The specification evidence confirms a microSD slot up to 1TB capacity but does not detail hot-swap behavior. Test in a pre-deployment lab environment or contact the manufacturer to verify safe removal and replacement procedures.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The DWC-MVD8WiATW hits a practical sweet spot for mid-tier outdoor deployments. At 8MP with motorized optics and 100-foot IR, it delivers the resolution and adaptive framing most integrators expect from a fixed turret. The hardware-accelerated AI—intrusion, tailgating, loitering, object counting—runs on-device, which means real-time behavioral alarms fire without hammering your NVR's CPU. That matters when you're running 8 or 16 of these cameras simultaneously.

Technical Highlights:

• True WDR 120dB + Smart DNR 3D noise reduction: High-contrast scenes (sun/shadow, warehouse bay doors) render detail in both zones without ghosting; 3D noise reduction cleans up IR footage without softening edges. Practical upside: fewer false-alarm frames in mixed lighting.
• H.265 dual-stream encoding: 40–50% bitrate savings versus H.264 at equivalent quality. On 24/7 recording across 12 cameras, that compounds to 1–2TB per week saved on storage—tangible for long-retention deployments.
• PoE at 14.9W typical: Won't overload a standard 802.3af switch. Budget ~180W for a 12-camera array; verify your switch's total PoE capacity (look for 60–120W class switches; older 30W units will struggle).

Deployment Considerations:

• IP66/IK09 durability is genuine—this camera tolerates rain, dust, and casual vandalism. Mount it where rain spray is direct, not just splashing.
• The 2.7–13.5mm motorized lens gives you wide-to-medium framing flexibility on-site. However, you cannot zoom or pan remotely; once mounted, the view is fixed unless you physically adjust the lens ring. For multi-zone coverage, deploy multiple fixed cameras or use PTZ units at key intersections.
• Onboard microSD recording (up to 1TB) buffers brief WAN outages. Useful for remote lots; test failover behavior in your lab before relying on it in production.

Position the DWC-MVD8WiATW for parking facilities, loading docks, and perimeter fencing in moderate climates where fixed coverage is acceptable and 24/7 storage budgets support H.265 compression. Skip this model if you need pan-tilt capability or if your site is Arctic/desert and requires extended operating ranges.
