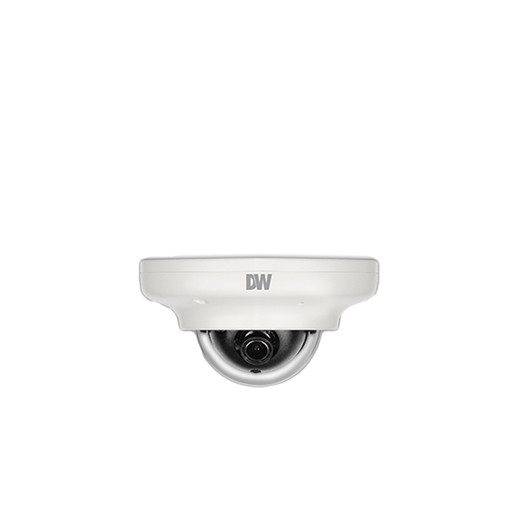

Digital Watchdog DWC-V7553W 5MP Star-Light Outdoor Dome IP Camera
The DWC-V7553W is a professional-grade 5MP outdoor dome camera built for low-light surveillance without sacrificing color detail. The 1/2.8" CMOS sensor combined with Star-Light sense-up technology (×2 to ×32 amplification) delivers color imagery down to 0.13 lux—critical when you need facial recognition or vehicle plates in near-darkness, rather than forcing grayscale IR-only output. This matters in retail lots, building entries, and perimeter routes where identifying details outweigh pure light sensitivity.
Key Features
- 5MP resolution (2608 × 1960 pixels) — provides enough detail for identification at typical outdoor distances without pushing into the storage overhead of 8MP or higher. At 5MP, a 24/7 30-camera deployment stays manageable on mid-range network video recorders without proprietary storage architecture.
- Star-Light amplification with 0.13 lux minimum color illumination — captures usable color in conditions where fixed-IR domes drop to grayscale. Sense-up adjusts dynamically (×2 to ×32), so you're not locked into a single gain curve. The tradeoff: amplified imagery can show thermal noise in very dark scenes; Smart DNR 3D noise reduction mitigates this, but expect slightly softer edges at maximum gain.
- True WDR 120dB with Smart DNR 3D — handles mixed-lighting scenes (bright sky + dark building shadow) without blooming or crushing detail in either zone. The 120dB dynamic range is legitimate and useful; 60dB is typical budget-tier, so this is a tangible step up for backlit scenarios. Noise reduction runs on-camera, reducing storage bandwidth without requiring external processing.
- IP66 / IK10 ratings — IP66 means rain and dust won't infiltrate the housing; you can hose it down without flooding it. IK10 (rated for 20J impact) resists vandal strikes and thrown objects. If full submersion is required (underwater perimeter fence, submerged dock), upgrade to IP67+. The aluminum die-cast dome body adds structural rigidity versus plastic housings.
- PoE Class 2 (2.0W / 12VDC) — draws only ~176mA, so standard 802.3af PoE injectors or managed switches power it without branch current limits. This means you can run up to 30+ cameras on a single PoE switch without calculating voltage drop over long cable runs. No separate 12V power supplies simplify installation and reduce field wiring.
- Fixed 2.8mm lens, 103° HFOV — wider horizontal angle suits parking lots and loading bays where you need coverage width over zoom depth. The wide angle trades fine detail at distance; if you need to read a badge 50+ feet away, consider a higher focal-length variant or a separate PTZ camera for that zone.
- Multi-signal output (CVBS, HD-Analog, HD-CVI, HD-TVI) over Universal HD Coax — integrates into hybrid analog/HD systems without forcing a rip-and-replace. Resolution flexibility (960H analog through 5MP) lets you migrate legacy coax infrastructure incrementally. Frame rates adjust by format (30fps at 5MP, 12.5fps minimum for low-bandwidth streams).
- 24 programmable privacy zones — mask off adjacent properties, windows, or parking areas before recording, reducing false-positive alerts and GDPR compliance friction. Zones are image-based (not network-level), so they persist regardless of VMS platform.
- Operating range −4°F to 122°F (−20°C to 50°C) — suitable for temperate and cold climates; deserts and humid tropics may exceed the upper limit seasonally. Thermal cycling stress on the dome seal is real; inspect gaskets annually in freeze-thaw regions.
- Auto day/night switching with de-fog and backlight compensation — sensor switches between color and B&W automatically, and de-fog reduces image washout in humid or dusty environments. Backlight compensation raises shadow detail when bright light sources (headlights, reflective surfaces) dominate the frame.
Integration & Compatibility
The DWC-V7553W supports ONVIF-compatible video management systems via its HD-CVI and HD-TVI outputs (check your VMS datasheet for specific codec support). PoE provisioning is plug-and-play on any managed or passive PoE switch; no special firmware or driver. The progressive-scan sensor with manual shutter control (1/30 to 1/30000) allows fine-tuning exposure for specific lighting, though auto-shutter handles most scenarios without adjustment.
When to Choose a Different Model
If you need motorized zoom (variable focal length) or pan-tilt control, the DWC-V7553W's fixed 2.8mm lens isn't the answer—consider a motorized varifocal variant in the Digital Watchdog catalog. If your site is consistently below 0.01 lux even with amplification (deep night, no ambient light, no IR), a dedicated thermal camera or a higher-sensitivity model with active IR illumination is more appropriate. For indoor-only surveillance, an IK-rated outdoor dome is overkill; switch to an indoor fixed dome and reclaim cost.
Frequently Asked Questions
Q: What's the maximum cable run for PoE from switch to camera?
A: At 2.0W draw, the DWC-V7553W operates reliably on standard cat5e up to 100m (330 ft) with <100V voltage drop at the camera. Beyond 100m, use cat6a or PoE extenders. Check your switch's per-port wattage limits if cascading multiple cameras on a single trunk.
Q: Does the DWC-V7553W support H.265 or H.264 compression?
A: The camera outputs HD-CVI, HD-TVI, and CVBS; compression codec depends on your recorder or encoder downstream. Verify your recording platform supports the DWC-V7553W's output format before purchase.
Q: Can I use the DWC-V7553W in a swimming pool or fountain environment?
A: No. IP66 protects against rain and spray, not submersion or sustained water jets. For pond or pool perimeter mounting above water, IP66 is adequate. For underwater or fountain-mounted installations, specify IP67 or higher.
Q: What's the warranty on the DWC-V7553W?
A: Digital Watchdog backs the DWC-V7553W with a 5-year warranty. Confirm coverage terms (parts/labor/shipping) with your distributor at time of purchase.
Q: Is the DWC-V7553W NDAA Section 889 compliant?
A: Digital Watchdog is a US manufacturer; confirm NDAA compliance status directly with the manufacturer or your procurement team, as compliance requirements are customer-specific and enforcement is active.
Q: Can I adjust the 2.8mm lens to a wider or narrower angle?
A: The DWC-V7553W ships with a fixed 2.8mm lens (103° HFOV). Lens replacement requires disassembly and is not field-serviceable. If you need a different angle, order a variant with the appropriate focal length at purchase.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The DWC-V7553W (often searched as DWC V7553W) lands in a practical middle ground for outdoor surveillance: you get genuine low-light color capture without the power draw, thermal artifacts, or cost of a dedicated thermal camera, and without the simplistic IR-only fallback of entry-level domes. The Star-Light amplification engine is where this camera earns its keep—×32 sense-up at 0.13 lux color minimum means parking attendants and guards see faces and vehicle details in dusk or pre-dawn conditions that would reduce other cameras to B&W silhouettes. That's a concrete operational advantage, not a marketing claim.
Technical Highlights:
- 120dB True WDR + Smart DNR 3D: The combination tackles the real-world problem of mixed-light outdoor scenes—bright sky, dark shadows, reflective surfaces. 120dB is double-digit higher than budget domes (60–80dB); the Smart DNR runs on-camera, so your NVR isn't processing noise reduction per-stream, saving CPU and network bandwidth on large deployments.
- 2.0W PoE power draw: This is underrated. You can deploy 30+ cameras on a single managed PoE switch without power budget exhaustion, and you avoid the fault-tolerance and cost complexity of distributed 12V supplies. No external PSU means fewer points of failure in the field.
- Multi-signal output (CVBS/HD-CVI/HD-TVI): Not every site has migrated to pure IP. The DWC-V7553W lets you upgrade sensors while keeping legacy coax plant in place—meaningful cost savings on retrofit projects where trenching is already done.
- IP66 / IK10 durability: The aluminum die-cast dome and gasket design aren't just weather-sealed; they're built to absorb impact. In high-vandalism areas, this rated impact resistance saves replacement costs versus plastic housings that crack under thrown objects.
Deployment Considerations:
- The 2.8mm fixed lens is wide (103° HFOV) but shallow in zoom depth. If your site needs both wide perimeter coverage AND readable detail 60+ feet away, budget for a secondary PTZ or higher focal-length fixed dome, not just this model alone.
- Star-Light amplification at maximum gain (×32) does introduce visible thermal noise; the 3D DNR helps, but fine edge sharpness trades away at extreme amplification. In truly dark scenes (below 0.01 lux), active IR or thermal is more honest.
- The −20°C lower operating limit is good for temperate climates but not arctic; ice accumulation on the dome and condensation inside the housing are real risks in freeze-thaw cycles. Plan annual gasket inspection in cold regions.
Deploy the DWC-V7553W when you need reliable color capture in dim outdoor light, straightforward PoE integration, and proven weatherproofing—typical use cases are retail lot perimeters, building entry canopies, and loading dock routes where facial and vehicle detail matters and fixed, wide-angle coverage suffices. It's not a zoom camera, and it's not a thermal specialist; it's a competent, no-fuss 5MP outdoor dome that handles low-light color work and survives abuse.
