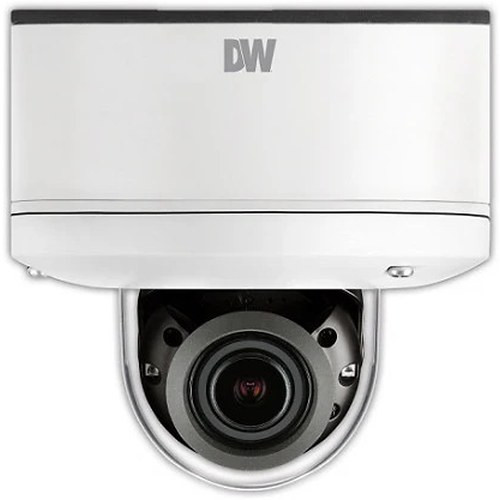

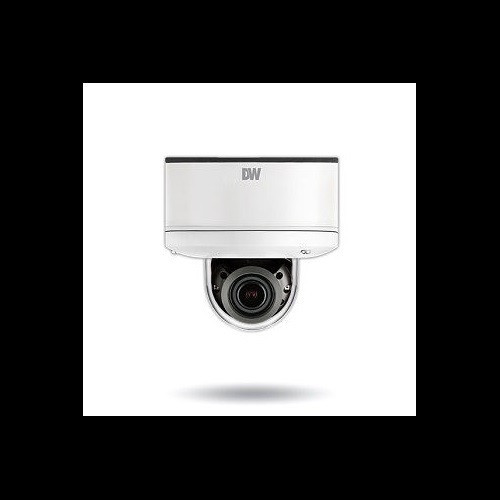

Digital Watchdog DWC-MPV45WiATW 5MP IR Outdoor Dome IP Camera

Digital Watchdog DWC-MPV45WiATW 5MP IR Dome Camera

The Digital Watchdog DWC-MPV45WiATW MEGApix delivers enterprise-grade surveillance with 5-megapixel resolution and intelligent infrared technology for comprehensive outdoor monitoring. Built with a vandal-resistant dome housing and IP68 rating, this camera provides robust protection in harsh weather environments while maintaining crisp, detailed footage 24/7. The motorized vari-focal lens (2.7mm–13.5mm) combined with auto-focus and P-iris control enables flexible field-of-view adjustment from 96° to 31° horizontal coverage, making it ideal for diverse deployment scenarios.

Key Features

• 5MP 1/2.8" CMOS sensor capturing 2592 × 1944 pixel resolution
• 100-foot Smart IR™ night vision with 0.08 lux color and 0.0 lux B/W sensitivity
• True WDR 120dB for balanced exposure in challenging lighting conditions
• Motorized zoom and auto-focus with P-iris for precise lens control
• IP68-rated vandal dome with IK10 impact resistance
• PoE power delivery with 10.5W maximum consumption
• Dual H.264/H.265 and MJPEG codec support at up to 30fps
• Dual-streaming capability at different resolutions and bitrates
• Integrated microSD/SDHC/SDXC slot supporting up to 1TB storage
• 16 programmable privacy zones with mirror/flip capability
• Auto day/night with de-fog technology
• Motion detection and operational notifications via email and SD card recording
• IVA and IVA+ license support for advanced analytics (intrusion, line crossing, counting, loitering, tailgating, object removal)

Technical Specifications

This camera operates across -40°F to 122°F with 10–90% humidity tolerance, ensuring reliable performance year-round. Multi-codec support includes H.264, H.265, and MJPEG with bitrate control from 32Kbps to 20Mbps. Network protocols encompass IPv4, DHCP, DNS, DDNS, RTSP, HTTP/HTTPS, SNMP, and Genetec Protocol integration. Security features include 802.1x authentication, HTTPS (TLS) encryption, MAC filtering, and multi-user authority. The camera is compatible with major VMS platforms including DW Spectrum® IPVMS, ExacqVision, Genetec, and Milestone Systems. Smart DNR™ 3D digital noise reduction and True WDR 120dB work together to deliver clear imagery across variable lighting conditions.

Applications

Ideal for parking facilities, perimeter security, building entrances, and outdoor facility monitoring where detailed identification and extended coverage are essential. The flexible lens range supports both wide-area surveillance and targeted monitoring within a single camera deployment.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The DWC-MPV45WiATW stands out for its combination of optical flexibility and intelligent imaging. The motorized vari-focal lens paired with auto-focus eliminates repositioning during installation and maintenance, while the P-iris optimizes light control at varying focal lengths. True WDR 120dB ensures usable footage in backlit scenarios—critical for entrance monitoring.

The inclusion of both IVA and IVA+ analytics licenses enables organizations to deploy intrusion detection, directional tracking, and object-left detection without additional licensing costs. PoE power simplifies installation in outdoor locations while reducing cable runs. With 5-year warranty coverage and support for industry-standard VMS platforms, this camera represents a solid investment for mid-to-large deployments requiring reliable, analytics-capable surveillance without proprietary lock-in.
