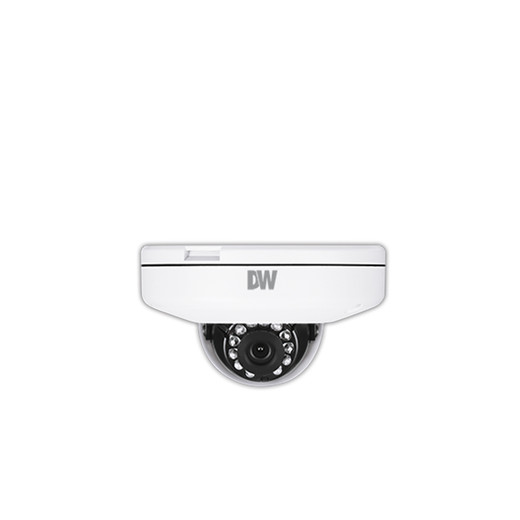

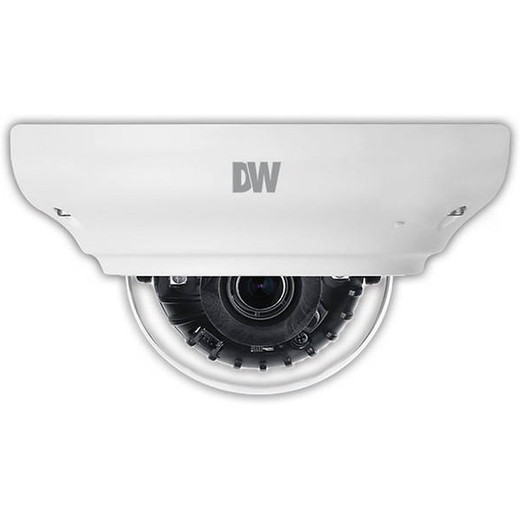

Type:
Dome
Features:
IR
Frame Rate:
High
Sensor Type:
5MP 1/2.8" CMOS sensor
Max Resolution:
5MP
Minimum Scene Illumination in color:
0.0 lux (B/W), 0.16 lux (color)
Test Video Output:
Local video output CVBS 1.0V p-p (75Ω), 16:9 aspect ratio
Total Pixels:
2592 (H) × 1944 (V)
Focal Length:
4.0mm, 6.0mm, or 8.0mm
Horizontal Field of View (HFOV:
37.8° to 82.3°
IR Distance:
50' range Smart IR™
Lens Type:
Fixed Lens
Vertical Field of View (VFOV:
22° / 29° / 43°
Audio compression:
G.711
I/O Alarm in/out:
1 input, 1 output
I/O Audio in/out:
1 audio in, 1 audio out
IVA license:
Intrusion, line crossing, counting line, loitering, enter, exit, tamper (DWC-MF5Wi4TW, DWC-MF5Wi6TW, DWC-MF5Wi8TW)
IVA+ license:
Logical rules, object removed, tailgating, direction, stopped, appear, disappear, object left (DWC-MPF5Wi4TW, DWC-MPF5Wi6TW, DWC-MPF5Wi8TW)
3D digital noise reduction:
Smart DNR™ 3D Digital Noise Reduction
Auto gain control:
Auto
Day and Night:
Auto day/night, Day (color), Night (B/W)
De-fog:
Yes
Memory slot:
Micro SD/SDHC/SDXC (up to 1TB)
Mirror/flip:
Yes
Motion Detection:
Yes
Operational Notifications:
Alarm output activation, Email, SD card recording
Privacy Zones:
16 programmable privacy masks
Shutter Mode:
Auto, Manual, Slow Shutter
Shutter Speed:
1/15 ~ 1/32000
Slow Shutter Speed:
Off, x15, x2, x3, x4, x5, x6, x7.5
White Balance:
Yes
Wide Dynamic Range (WDR:
True WDR 120dB
Bitrate Control:
CBR/VBR H.264, variable frame rate
IP:
IPv4
Network resolution:
2592x1944, 1080p, 720p, VGA
Network Web Viewer:
Chrome, Edge, Firefox, Safari on Windows, Mac, Linux
Protocol:
Bonjour, DDNS, DHCP, DNS, Genetec Protocol, HTTP, HTTPs, IGMP, NTP, RTP, RTP (UDP/TCP), RTSP, SNMP, SNMPv1/v2/v3 (MIB-2), TCP, Telnet, UPnP, Zeroconf (AutoIP)
Security:
802.1x, HTTPS (TLS), MAC filtering, Multi-user authority
Stream Speed:
Up to 30fps at all resolutions
Streaming Capability:
Dual-stream at different rates and resolutions
Video Bitrate:
32Kbps~20Mbps
Video Compression Type:
H.264, H.265, MJPEG
Video Management Software:
Any ONVIF conformant CMS, DW Spectrum® IPVMS, ExacqVision Technologies, Genetec Inc., Milestone Systems
Environmental Operating Humidity:
10-90% (non-condensing)
Environmental Operating Temperature:
-4°F ~ 122°F (-20°C ~ 50°C)
Mounting Accessories (Required/Optional:
Optional. Sold separately
Camera Dimensions (H X W X D:
4.92" x 1.88” (125 x 48 mm)
Camera Weight:
0.88 lbs (0.4kg)
Housing:
Vandal Dome
Housing Color:
White
Vandal Rating:
IK10 Rated
IP Rating:
IP66
Materials:
Polycarbonate lens cover, Aluminum die-casting
Power (Max:
DC12V: max 5.9W, 491.6mA, PoE: max 7.2W
Power Requirements:
Adapter not included, PoE
Warranty:
5 Year Warranty
Product Type:
Dome
Connectivity:
Wired
Power Type:
PoE
Resolution:
5MP
Night Vision:
IR
Environment Rating:
Outdoor
