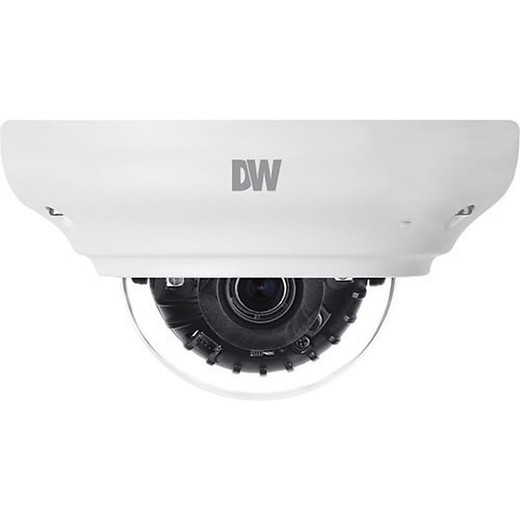

Digital Watchdog DWC-MV75Wi6TW 5MP Outdoor IR Dome IP Camera

Digital Watchdog DWC-MV75Wi6TW 5MP Outdoor IR Dome Camera

The Digital Watchdog DWC-MV75Wi6TW is a professional-grade 5-megapixel outdoor IR dome camera designed for comprehensive surveillance in demanding environments. Built with a robust vandal-resistant dome housing and IP67 weather rating, this camera delivers reliable performance across parking lots, building perimeters, and expansive outdoor spaces with exceptional image clarity and round-the-clock monitoring capabilities.

Key Features

• 5MP 1/2.8" CMOS sensor with 2592 × 1944 resolution
• Smart IR™ technology with 80-foot infrared illumination range
• True WDR 120dB for challenging lighting conditions
• Multiple focal lengths (2.8mm, 4.0mm, 6.0mm) for flexible deployment
• IK10-rated vandal-resistant dome with aluminum die-cast housing
• IP67-rated weatherproof design for extreme outdoor conditions
• Advanced video compression: H.264, H.265, and MJPEG
• Dual-stream capability at different rates and resolutions
• PoE powered with minimal 7.2W consumption
• MicroSD card slot supporting up to 1TB local storage

Technical Highlights

The DWC-MV75Wi6TW operates across an extended temperature range of -4°F to 122°F (-20°C to 50°C), making it suitable for diverse climates. Its auto day/night functionality automatically switches between color and black & white modes, while Smart DNR™ 3D digital noise reduction ensures clean video even in low-light conditions. The camera delivers up to 30fps at all resolutions with video bitrates ranging from 32Kbps to 20Mbps, providing flexible bandwidth management for any network environment.

Night vision performance is exceptional, with minimum scene illumination of 0.0 lux in black & white and 0.13 lux in color, enabling visibility in near-total darkness. The integrated Smart IR™ system provides intelligent infrared illumination without washout, maintaining detail even at the 80-foot maximum range. True WDR 120dB technology handles extreme backlit scenarios, critical for monitoring entryways and perimeters with varying light sources.

The camera supports comprehensive intelligent video analytics through available IVA and IVA+ licenses, enabling intrusion detection, line crossing, loitering detection, object tracking, tailgating alerts, and more. Sixteen programmable privacy masks protect sensitive areas, while adjustable shutter speeds (8 to 1/50000) and selectable slow shutter modes optimize motion handling across various lighting conditions.

Connectivity & Integration

Wired PoE connectivity simplifies installation while eliminating separate power runs. The camera supports IPv4 networking with industry-standard protocols including RTSP, ONVIF, HTTP, HTTPS, SNMP, and Bonjour. Compatible with DW Spectrum® IPVMS, ExacqVision, and Milestone Systems platforms, this camera integrates seamlessly into existing enterprise security ecosystems. Multi-user authority and 802.1x security ensure proper access control and network integrity.

Applications

Ideal for perimeter security, parking lot surveillance, building access points, transportation facilities, and outdoor facility monitoring. The vandal-resistant construction and weather sealing make it suitable for high-risk outdoor installations requiring maximum durability and continuous 24/7 operation.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The DWC-MV75Wi6TW represents Digital Watchdog's commitment to delivering value-engineered outdoor surveillance without compromising essential performance metrics. The combination of 5MP resolution, true WDR 120dB, and 80-foot Smart IR range addresses the primary requirements of professional outdoor installations. The IK10 vandal rating and aluminum construction provide legitimate durability benefits rather than marketing claims.

The multi-focal-length design (2.8mm, 4.0mm, 6.0mm) is practical for field deployments, offering HFOV ranges from 51.9° to 102.4° without requiring multiple SKUs. H.265 codec support future-proofs bandwidth efficiency for larger deployments. The 5-year warranty demonstrates manufacturer confidence, while PoE simplicity reduces installation complexity and cost compared to alternative power schemes.

This camera performs best in organized deployments using DW Spectrum or compatible platforms where analytics licensing can be maximized. It represents a solid mid-range option for security integrators prioritizing weather resistance and identification-capable resolution in outdoor environments.

Available in Black.
