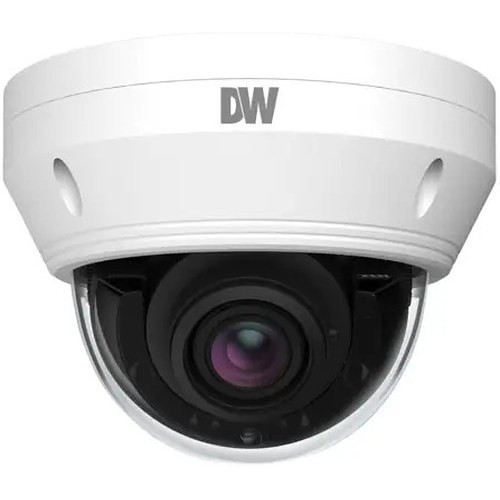

Digital Watchdog DWC-MV95WiATW 5MP IR Outdoor Dome Camera

Digital Watchdog DWC-MV95WiATW 5MP IR Outdoor Dome Camera

The DWC-MV95WiATW is a professional 5MP outdoor surveillance dome engineered for perimeter and area monitoring where reliable night vision, weather durability, and flexible optics matter. It combines a motorized varifocal lens, aggressive infrared illumination, and tactical image processing into a single hardened enclosure rated IP67/IK10 — meaning it handles direct rain, dust, and deliberate impact without image degradation or physical damage.

Key Features

• 5MP resolution (2592 × 1944): Captures fine detail across parking lots, building perimeters, and large outdoor areas — enough pixel density to identify faces and license plates at 30–50 feet depending on lens position.
• Motorized 2.8–12mm vari-focal lens with auto-focus: Eliminates repositioning during commissioning. Set wide (95.1° HFOV) for area coverage or narrow (30° HFOV) for distant detail without swapping hardware. Auto-focus compensates for thermal expansion or vibration.
• 164-foot Smart IR™ infrared illumination: Enables full-color recognition in zero ambient light, cutting through fog and haze better than passive thermal. Critical for perimeter breach detection and incident reconstruction.
• True WDR 120dB: Simultaneously captures detail in shadows and bright sunlit areas — a real advantage in parking lot scenarios where a vehicle crosses from shade into direct sun. Without it, you either lose license plate detail or sky detail; this holds both.
• IP67 weatherproof + IK10 vandal-resistant dome: Survives heavy rain, salt spray, and direct hose wash without housing separation. IK10 means the dome resists hammer and sledge — matters in high-vandalism zones.
• PoE powered, 6W maximum consumption: Eliminates separate power runs. A single Ethernet cable delivers data and power simultaneously, cutting installation labor and cabling complexity. Draws minimal current, so it won't overload standard 802.3af PoE switches.
• H.264 and H.265 dual-stream encoding: H.265 cuts bitrate roughly in half compared to H.264 for identical quality — meaningful when streaming 24/7 across multiple cameras or archiving to bandwidth-constrained storage.
• Smart DNR™ 3D noise reduction and de-fog processing: Suppresses video grain in low light and clears fog-obscured scenes automatically. De-fog especially valuable in coastal or industrial installations.
• Embedded object classification, line crossing, and perimeter intrusion detection: Runs on-camera, so alerts trigger at the edge. Distinguishes humans from vehicles or false motion, reducing operator alert fatigue and eliminating server-side licensing for analytics.
• Operating range -22°F to 140°F: Handles cold climates without heater reliance and desert heat without thermal shutdown. Temperature extremes are common in outdoor deployments; this margin of safety ensures year-round operation.
• Micro SD/SDHC/SDXC storage up to 1TB: Provides local backup recording if network connectivity drops. Useful for critical perimeter sites where you cannot afford to lose footage during WAN outages.
• 5-year manufacturer warranty: Industry-standard durability commitment for outdoor surveillance cameras, covering manufacturing defects and performance degradation.

Integration & Compatibility

Supports ONVIF protocol, making it compatible with network video recorders and VMS platforms including DW Spectrum® IPVMS, ExacqVision, Milestone Systems, and other standards-based solutions. IPv4 and IPv6, 802.1x authentication, and IP/MAC filtering provide enterprise-grade security controls. Email and FTP notifications alert administrators to perimeter breaches or tampering in real time.

If you are evaluating outdoor IP cameras for a mid-scale deployment, consult the IP camera selection guide to compare form factors, lens options, and integration pathways. For dome camera mounting hardware and weatherproof cabling, verify compatibility with your installation surface and cable routing strategy.

Frequently Asked Questions

Q: What is the maximum infrared range on the DWC-MV95WiATW?

A: The Smart IR illumination extends to 164 feet (approximately 50 meters). Effective recognition distance depends on subject reflectivity and lens position — darker objects or narrow-angle lens settings may show reduced range.

Q: Does the DWC-MV95WiATW support ONVIF?

A: Yes. It is fully ONVIF-compatible, supporting ONVIF profile conformance for integration with any standards-based VMS platform.

Q: Can I use the DWC-MV95WiATW with standard 802.3af PoE?

A: Yes. Maximum power draw is 6 watts, well within 802.3af specifications (15.4 watts available). No PoE+ or PoE++ required.

Q: What is the warranty on the DWC-MV95WiATW?

A: Five-year manufacturer warranty covering defects and performance degradation under normal outdoor use.

Q: Does the camera support local storage?

A: Yes. It accepts microSD/SDHC/SDXC cards up to 1TB capacity, providing on-camera backup recording when network connectivity is unavailable. Card not included.

Q: What lens range does the motorized zoom provide?

A: The 2.8–12mm motorized lens delivers a field of view from 95.1° (wide, 2.8mm) to 30° (narrow, 12mm). Auto-focus maintains clarity across the entire zoom range, eliminating manual adjustment after commissioning.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The DWC-MV95WiATW delivers practical mid-range outdoor surveillance without premium pricing. The combination of 5MP resolution, 164-foot Smart IR, and motorized 2.8–12mm optics covers most perimeter and parking lot scenarios without hardware swaps. The 120dB True WDR handles sun glare and backlit scenes effectively — a real-world advantage in parking lots where vehicles cross from shadow into direct light.

Technical Highlights:

• Motorized varifocal lens (2.8–12mm): Eliminates repositioning after commissioning. Wide angle (95.1° HFOV) for area coverage, narrow angle (30° HFOV) for distant detail. Auto-focus corrects for thermal drift and vibration over time.
• 164-foot IR with Smart DNR 3D noise reduction: Full-color recognition in zero ambient light, even through fog and haze. De-fog processing clears atmospheric obscuration automatically — critical for coastal and industrial perimeter sites.
• 6W PoE operation on 802.3af: Minimal power draw means it integrates into standard office and industrial PoE switches without power-budget stress. Single Ethernet cable for both data and power cuts installation labor.
• H.265 dual-stream encoding: Simultaneous high-res recording and lower-bandwidth live viewing. H.265 cuts bitrate in half versus H.264, meaningful on 24/7 multi-camera recorders.
• IP67/IK10 weatherproof, vandal-resistant dome: Survives direct hose wash, salt spray, and sledge-hammer impact. Temperature tolerance (-22°F to 140°F) ensures year-round reliability without heating/cooling equipment.

Deployment Considerations:

• Motorized zoom requires proper commissioning — set your desired wide and narrow positions during installation. Auto-focus works well indoors and in stable outdoor mounting, but extreme vibration (overhead highway) may cause hunting.
• 164-foot IR range is excellent but reflectivity-dependent. Dark asphalt or black vehicles will show shorter effective range than reflective surfaces. Plan wide-angle placement for area coverage; use narrow zoom sparingly for distant detail.
• 5MP is adequate for license-plate recognition at 30–50 feet depending on lens position and target size. For larger parking areas or highway overwatch, evaluate higher-megapixel variants in the Digital Watchdog lineup.
• Local microSD storage (up to 1TB) is a useful hedge against WAN outages, but cards must be ejected and read offline. Plan for a network-attached NVR as your primary archive.

Positioning: solid choice for parking lot, building perimeter, and industrial entry-point surveillance where motorized optics eliminate repositioning labor, robust weatherproofing extends service intervals, and 5MP resolution supports identification tasks at moderate distances. The 120dB WDR and aggressive IR make it particularly valuable in mixed-light perimeter scenarios — dawn/dusk transitions or areas with both shadowed and sun-facing surfaces.

Key Specifications:
Field of View: 95.1° ~ 30°
Color: White
