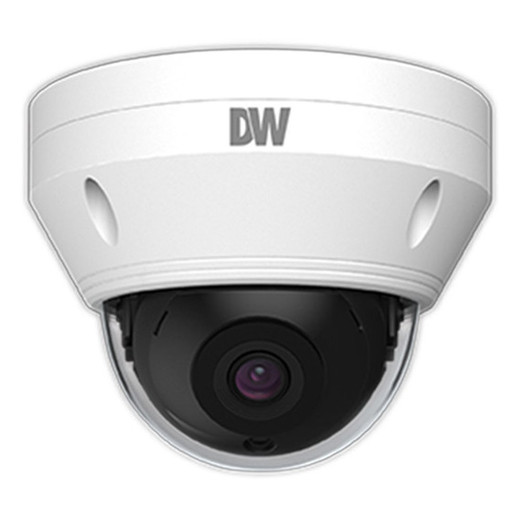

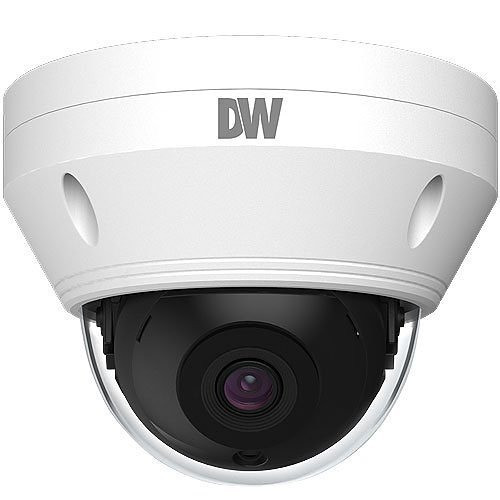

Digital Watchdog DWC-MV95Wi28TW 5MP IR Outdoor Dome Camera

Digital Watchdog DWC-MV95Wi28TW 5MP IR Outdoor Dome Camera

Overview

The DWC-MV95Wi28TW is a fixed-lens outdoor dome designed for perimeter monitoring, facility surveillance, and exposed installations where weatherproofing and impact resistance matter. Built around a 5MP (2592 × 1944) 1/2.7-inch CMOS sensor, this camera delivers usable detail for identification tasks at typical outdoor ranges. Night vision extends to 100 feet via Smart IR technology, meaning you're not blind after dark—critical if your site lacks ambient lighting. The IP67 rating and IK10 vandal resistance keep the camera operational in rain, dust, and direct physical abuse; outdoor IP cameras in this class are the expected baseline for exposed perimeter work.

PoE power at under 6W consumption simplifies deployment across multi-camera systems and keeps power budgets manageable even on modest switches. The dome form factor naturally sheds water and resists tampering, though the fixed lens means you must choose the right focal length before installation.

Key Features

• 5MP sensor with dual focal lengths (2.8mm, 3.6mm): The 2.8mm variant captures a wider field of view (98.5° horizontal), useful for large perimeter zones or parking areas where you want broad coverage over absolute detail. The 3.6mm narrows the field but pushes magnification slightly for closer identification—choose based on your distance to the target zone, not on megapixel count alone.
• 100-foot Smart IR range: Infrared LEDs active in low light provide usable nighttime imagery without external lighting. That distance covers most standard perimeter scenarios—a parking lot, loading dock, or building face at typical setback distances. Beyond 100 feet, IR scatter weakens; if your site requires longer-range night vision, you'd look at higher-powered spotlight cameras or thermal variants.
• True WDR at 120dB: Wide Dynamic Range handles scenes with bright and dark areas simultaneously—sunlit pavement next to shadowed building corners, for example. 120dB is solid for outdoor use; it won't pull detail from a dark alley alongside a bright sky in every scenario, but it reduces blown-out or crushed shadows in typical mixed-lighting conditions.
• IP67 weatherproofing and IK10 impact rating: IP67 means the dome survives rain, dust storms, and pressure washing without leaks. IK10 withstands direct impact (a thrown object, a thrown punch)—meaningful in facilities vulnerable to vandalism or accidental collision. These ratings are not hypothetical; they define what the camera will genuinely tolerate.
• H.264 and H.265 dual-stream compression: H.265 cuts bandwidth and storage roughly in half compared to H.264 for equivalent quality. If you're recording 24/7 across dozens of cameras, that reduction compounds quickly. Dual-stream allows your VMS to record high-quality H.265 while streaming lower-bitrate H.264 to remote clients—balances archive integrity with remote viewing bandwidth.
• On-board analytics (object classification, line crossing, intrusion detection, tampering alerts): Processing happens on the camera, not on your NVR or VMS. That offloads CPU load and allows intelligent alerts—motion triggers only when a person (not a falling leaf) crosses a line. Tampering detection (blur, scene change, color distortion) alerts you if the camera is blocked, rotated, or spray-painted.
• 4 privacy masks and configurable alarm outputs: Mask areas the camera shouldn't monitor (neighboring property, sky). Alarm contacts trigger external devices (strobes, door locks, audible alerts) when configured rules fire—integrates the camera into your broader security workflow.
• microSD card backup (up to 1TB): Edge recording on the camera itself protects against network or NVR failure. If your central recorder goes down, footage keeps writing locally; you retrieve it later. Not a replacement for central recording, but a valuable fail-safe.

Integration & Compatibility

The DWC-MV95Wi28TW supports ONVIF, RTSP, HTTP/HTTPS, DHCP, and NTP—standard network protocols that integrate with any modern VMS. It pairs explicitly with DW Spectrum IPVMS (Digital Watchdog's own platform), Milestone Systems XProtect, and ExacqVision. IPv4 and IPv6 networking with 802.1X and digest authentication meet enterprise security baselines. A built-in microphone and audio I/O enable audio alerts or two-way voice if your VMS supports it; the single alarm input lets you wire external sensors (door contact, motion detector) directly to the camera.

Operating temperature range spans −30°C to +60°C (−22°F to +140°F), so the camera functions in cold storage facilities, desert installations, or temperate outdoor sites. Minimum scene illumination drops to 0.0 lux in infrared black-and-white mode and 0.02 lux in color mode, meaning you can pull usable footage in near-darkness if the infrared activates.

When to Choose a Different Model

If your installation demands a motorized varifocal lens (zoom and focus adjustment after mounting), a Digital Watchdog IP camera variant with a motorized lens would be more appropriate. If you need wider-area coverage than even the 2.8mm wide-angle provides, consider a panoramic or fisheye variant. If 5MP feels insufficient for critical identification at distance, step up to an 8MP or 12MP model within the family. For indoor applications, an indoor dome with lower IP and IK ratings will be more cost-effective.

Why This Camera Fits Outdoor Surveillance

The DWC-MV95Wi28TW balances resolution, night vision, and durability without excessive cost. It's not a 20MP ultra-high-definition model—5MP is a deliberate choice that captures sufficient detail for outdoor identification tasks while keeping bandwidth, storage, and PoE power reasonable. The 100-foot Smart IR range ensures you're not deploying a blind camera after sunset. IK10 and IP67 ratings confirm the housing is genuinely outdoor-rated, not merely weather-resistant. On-board analytics reduce downstream processing load on your VMS, enabling smarter alerting. For typical perimeter security, parking facility monitoring, or building envelope surveillance in climates from freezing to hot, this camera delivers the essentials without over-specification.

Frequently Asked Questions

Q: What's the difference between the 2.8mm and 3.6mm lens options for the DWC-MV95Wi28TW?

A: The 2.8mm lens provides a wider field of view (98.5° horizontal), suitable for large open areas like parking lots or building facades where you want broad coverage. The 3.6mm narrows the horizontal angle, pushing magnification slightly for closer identification at moderate distances. Choose based on the distance from the camera to your target zone, not resolution alone.

Q: Does the DWC-MV95Wi28TW record locally if the network goes down?

A: Yes. A microSD card slot (supports up to 1TB FAT32) enables edge recording directly on the camera. If your NVR or network fails, footage continues to write locally; you retrieve the card later. This is a backup measure, not a replacement for central recording.

Q: What PoE switch do I need for the DWC-MV95Wi28TW?

A: The camera draws under 6.0W maximum, well within standard 802.3af PoE (15.4W budget per port). No PoE+ switch is required. For a multi-camera deployment, confirm your switch has enough total PoE power budget and available ports; a PoE planning guide helps calculate requirements across multiple cameras.

Q: Can I integrate the DWC-MV95Wi28TW with Milestone XProtect?

A: Yes. The camera supports ONVIF, RTSP, HTTP/HTTPS, and standard network protocols. Milestone explicitly supports ONVIF Profile S and T integration, so the DWC-MV95Wi28TW will integrate with XProtect as a standard ONVIF camera.

Q: What's the maximum recording frame rate?

A: The camera supports up to 30fps at all resolutions (5MP, 1080p, 720p). High frame rate (HFR) modes reach 60fps at reduced resolutions. For outdoor surveillance, 30fps is the typical standard; 60fps is useful only if you're tracking fast-moving objects and have bandwidth/storage to spare.

Q: How does H.265 compression reduce storage costs compared to H.264?

A: H.265 delivers equivalent image quality at roughly 40–60% lower bitrate than H.264. On 24/7 recording across multiple cameras, this compounds significantly—fewer gigabytes per day means longer retention on the same NVR storage, or smaller storage investment for the same retention window. Dual-stream recording lets you archive high-quality H.265 while streaming lower-bitrate H.264 to remote clients.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The DWC-MV95Wi28TW hits a practical sweet spot for outdoor perimeter work. Five megapixels and a 100-foot infrared range pair well for most facility-scale surveillance—you're not stretching the camera beyond what the optics and sensor can deliver, and you're not over-specifying for identification-distance tasks. The fixed lens (choose 2.8mm or 3.6mm at purchase) requires upfront planning, but it eliminates motorized varifocal complexity and keeps power draw minimal.

Technical Highlights:

• 120dB WDR: Handles high-contrast outdoor scenes—bright pavement next to shadowed overhangs. Not perfect for all extreme backlit conditions, but solid for typical mixed-lighting perimeter work.
• 6.0W maximum PoE draw: Standard 802.3af switch ports power this camera; no PoE+ infrastructure needed. On a 24-port 95W PoE budget, you can deploy roughly 15 of these without strain.
• H.265 dual-stream: Record high-quality H.265 archive while streaming lower-bitrate H.264 to remote clients. Storage savings compound on 24/7 multi-camera systems—measurable cost difference at scale.
• On-board object classification and intrusion detection: Analytics run on the camera; tamper alerts (blur, color shift, scene change) notify you if the dome is blocked or moved. Reduces false motion triggers from weather or passing vehicles.

Deployment Considerations:

• Fixed focal length: You must choose 2.8mm or 3.6mm before installation. Retrofit is possible but cumbersome. Map your coverage zones and verify the field of view matches your distance to target zones before ordering.
• IR scatter at extended range: 100 feet is effective for typical perimeter distances, but if your target zone is 150+ feet away and you have no ambient light, this camera will struggle. Check actual nighttime illumination at your specific distance before final deployment.
• microSD backup requires retrieval: Edge recording is a safety net, not a surveillance system. You must physically retrieve the card if the network fails—plan for that logistical overhead.

Deploy the DWC-MV95Wi28TW for standard outdoor perimeter work: parking areas, building facades, loading docks, facility entrances. It's reliable, weatherproof, and analytically competent without excessive cost or power demand. Not suitable for indoor use or long-range identification beyond 100+ feet without supplemental lighting.
