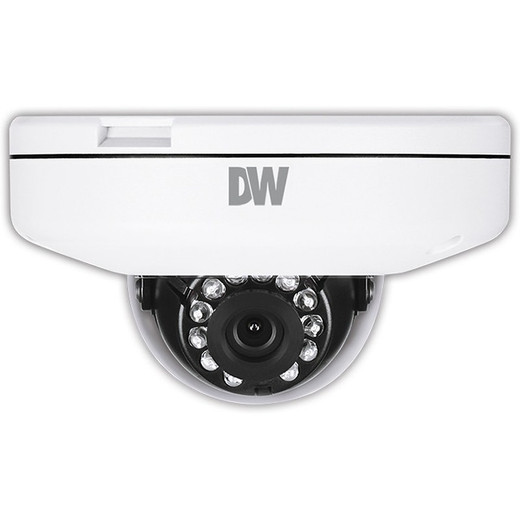

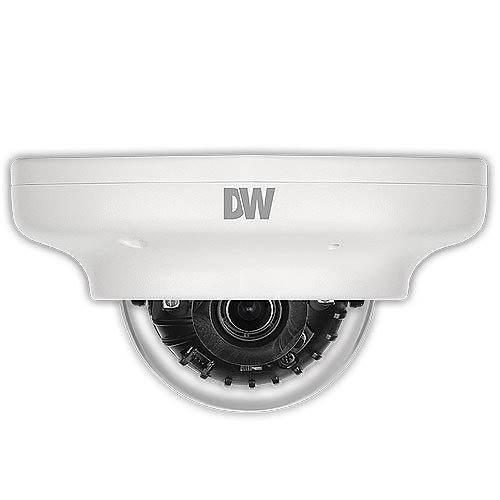

Digital Watchdog DWC-MF5Wi4TW 5MP Outdoor IR Dome Camera

Digital Watchdog DWC-MF5Wi4TW 5MP Outdoor IR Dome Camera

The Digital Watchdog DWC-MF5Wi4TW is a fixed-dome IP camera engineered for outdoor perimeter and facility surveillance where forensic image quality and reliability matter. Built on a 1/2.8" CMOS sensor delivering 5MP (2592 x 1944) resolution, this camera captures the detail needed for positive identification and evidence-grade footage across demanding lighting conditions. The polycarbonate dome is rated IK10 (vandal-resistant to 50J impacts), and the aluminum housing carries IP66 certification — meaning direct rain, spray, and dust ingress won't compromise operation. Temperature range spans -4°F to 122°F, so deployment in either temperate or extreme climates is viable without thermal enclosures.

Key Features

• 5MP Resolution (2592 × 1944): Captures forensic-grade detail across wider scenes — you get more usable face and license-plate capture per camera, reducing total camera count and installation complexity on perimeter deployments.
• 4.0mm Fixed Lens, 82.3° Horizontal FOV: Wide coverage of entry points, parking areas, and building facades without the cost and complexity of motorized optics. The 43° vertical FOV suits typical roof and wall mounting heights.
• Smart IR with 50-Foot Range: Infrared LEDs automatically compensate for reflective surfaces and varying distances — no image washout on reflective signs, vehicles, or wet pavement at night. 850nm wavelength is invisible to the human eye, useful for covert monitoring.
• True WDR 120dB: Forensic wide dynamic range handles extreme backlit scenes — think sunlit parking lots with deep shadows or loading docks with bright overhead lights and dim corners. At 120dB, this camera delivers usable detail in both bright and dark areas of the same frame without tone-mapping artifacts.
• Dual Codec Streaming (H.264 / H.265 / MJPEG): H.265 encoding cuts bandwidth and storage roughly in half versus H.264 on the same scene — meaningful across 24/7 recording on multi-camera systems. Simultaneous streams at different resolutions (e.g., full 5MP for archive, 720p for real-time monitoring) reduce load on network and storage infrastructure.
• PoE Class 3 (802.3af): Draws under 13W, so standard 30W PoE injectors and most managed switches power the camera without straining the power budget. Single Ethernet cable for both power and video simplifies cabling and reduces installation time.
• Micro SD Local Recording (up to 1TB FAT32): Built-in backup captures continuous video to a memory card — useful if network congestion or recorder downtime occurs. Supports loop recording, so the oldest footage overwrites automatically once capacity is reached.
• 16 Programmable Privacy Masks and Motion Detection: Mask out irrelevant areas (trees, traffic, reflections) to reduce false alerts and storage waste. IVA (Intelligent Video Analytics) licensing support enables on-camera detection tasks without dedicated analytics appliances.
• Auto Day/Night Switching: Seamless transition to black-and-white mode and IR illumination at dusk; automatic white balance and gain control minimize manual recalibration across seasons.
• Minimum Scene Illumination: 0.16 lux in color mode and 0.0 lux in B/W (IR on) ensures visibility from near-total darkness through overcast twilight without external lighting.

Integration and Compatibility

The DWC-MF5Wi4TW (often searched as DWC MF5Wi4TW) is ONVIF-compliant, integrating with NVRs and VMS platforms including DW Spectrum IPVMS, Genetec, Milestone XProtect, and ExacqVision. IPv4 networking with HTTPS/TLS encryption, 802.1x authentication, and MAC filtering protects against unauthorized access. DHCP, DDNS, and UPnP simplify plug-and-play deployment across enterprise and mid-market networks. Dual alarm I/O connectors enable wired integration with third-party sensors, motion triggers, and relay-controlled access gates. Audio line-level input/output supports two-way intercom and external siren connectivity — useful for entrance monitoring and visitor communication.

When to Choose a Different Model

If your application requires motorized zoom and pan/tilt adjustments, consider a PTZ variant in the Digital Watchdog catalog instead. If coverage area exceeds 82° horizontally and you cannot add cameras, a wider fixed lens (e.g., 2.8mm or 3.6mm) may be necessary — confirm with your integrator. For indoor-only deployments without weatherproofing needs, fixed indoor domes will be more cost-effective. If you need thermal (uncooled microbolometer) imaging for 24/7 perimeter detection in near-blackout conditions, a separate thermal camera line is more appropriate.

Deployment Context

The DWC-MF5Wi4TW excels in mid-to-large outdoor surveillance footprints: parking facilities, loading docks, building perimeters, access gates, and exterior yards. The combination of IP66 durability, true WDR handling of sun/shade transitions, and 5MP resolution reduces reliance on multiple lower-resolution cameras. Integrators typically commission this model for insurance-grade surveillance where forensic image quality and regulatory compliance (e.g., CCTV for liability and incident investigation) are mandatory. Consult a coverage planning guide to confirm lens and field-of-view fit for your specific building geometry and legal/operational requirements.

Mounting and Physical Considerations

The dome form factor suits flush ceiling mounting (pendant or recessed) and wall mounting via universal junction boxes. The 4.0mm fixed lens and compact dome housing fit standard gang boxes without modification. Confirm mounting surface material and load capacity before installation — the camera and bracket assembly weigh approximately 1.1 lbs. Ensure IR LEDs have clear, unobstructed line of sight to the monitoring area; reflective surfaces or glass in front of the lens will degrade night vision performance. For areas prone to ice buildup or salt spray, periodic lens cleaning (soft lens cloth, distilled water) extends optical life.

Technical Adjustments and Administration

Configuration is web-based via HTTP/HTTPS or via RTSP/ONVIF from the VMS. Set frame rate, bitrate, and resolution per recording profile — lower frame rates (15 fps) and bitrates (4–6 Mbps) reduce storage costs without perceptible quality loss in perimeter surveillance. Enable Smart DNR (3D noise reduction) for low-light scenes to maintain clarity without introducing ghosting artifacts. Enable privacy masks during initial setup to exclude non-essential areas. Test WDR settings in your deployment environment; if shadows appear too bright or highlights too dark, adjust WDR level incrementally to match your specific backlighting challenge.

Frequently Asked Questions

Q: What is the maximum IP rating, and is this camera suitable for submersion?

A: IP66 certification means the camera handles rain, spray, and dust but is not rated for submersion or continuous water jets. If your site requires a camera in a fountain, water feature, or high-pressure wash area, you'll need IP67 or IP68 rated equipment.

Q: Can I record locally to the microSD card continuously, or only on motion?

A: The microSD slot supports both continuous 24/7 recording and motion-triggered backup. You configure loop recording so the oldest footage overwrites automatically once the card is full. Useful for redundancy if your network recorder goes offline.

Q: Does the DWC-MF5Wi4TW work with Milestone XProtect or Genetec?

A: Yes. ONVIF Profile S compliance ensures compatibility with both platforms. Test integration in your lab environment before commissioning to confirm stream resolution and codec preferences align with your VMS configuration.

Q: What's the warranty coverage?

A: Digital Watchdog standard is typically 3 years on parts and labor. Confirm the specific terms with your specialty distributor or reseller at time of purchase.

Q: Can I use a standard 30W PoE injector or PoE switch to power this camera?

A: Yes. The DWC-MF5Wi4TW draws under 13W at full brightness and IR operation, well within Class 3 (802.3af) limits. You can safely power multiple units from a single managed PoE switch without exceeding per-port or aggregate power budgets.

Q: Is the 50-foot IR range adequate for my perimeter, or do I need external lighting?

A: 50 feet of IR coverage suits most facility perimeters and vehicle approach zones. Beyond 50 feet, image noise increases and detail drops. If your site requires monitoring beyond this distance, either add external IR floodlights or position additional cameras closer to the target zone.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The DWC-MF5Wi4TW is a workhorse for outdoor surveillance integrators who need a camera that won't compromise on detail or reliability. The combination of true WDR 120dB, Smart IR at 50 feet, and native 5MP resolution directly addresses the perimeter surveillance challenge: capturing forensic-quality images across mixed daylight, shadow, and nighttime conditions with minimal false alarms from reflections. This is not a bargain play — it's engineered for deployments where liability, insurance, and evidence admissibility matter.

Technical Highlights:

• True WDR 120dB: Handles extreme backlit scenes (bright loading dock lights + dark storage area shadows in the same frame) without tone-mapping artifacts that degrade license plates or facial features. Real-world payoff: fewer customer complaints about "all I see is silhouettes at sunset."
• Dual-stream H.264/H.265: H.265 cuts storage requirements roughly 40–50% versus H.264 on the same scene. Across 24/7 multi-camera deployments, this translates to either smaller recorder budgets or longer retention windows without additional NVR capacity.
• Smart IR with 50-foot range: Automatic LED compensation prevents washout on reflective surfaces (rain, vehicles, signage). The 850nm invisible-light approach is ideal for retail or corporate perimeters where covert monitoring is preferred to visible deterrence.
• PoE Class 3 (under 13W): Low-power draw means you won't strain 30W PoE budgets on crowded switches. Single cable installation reduces labor and simplifies field troubleshooting.

Deployment Considerations:

• IP66 handles rain and dust reliably, but it is not rated for submersion or high-pressure wash scenarios — confirm your environment before commissioning.
• The 4.0mm fixed lens delivers 82.3° horizontal coverage; if you need wider angles or zoom capability, you'll need to either add more cameras or select a motorized zoom variant.
• IR effectiveness depends on clear line of sight to the target area; position the camera to avoid reflective obstructions (glass, polished metal) in front of the dome.

Position the DWC-MF5Wi4TW for perimeter and access-point monitoring where forensic image quality justifies the cost and where environmental durability (wind, rain, salt spray, temperature swings) is non-negotiable. It's your answer when a customer insists on usable face recognition, plate capture, or incident investigation footage — and doesn't want to explain blurry images to a lawyer.
