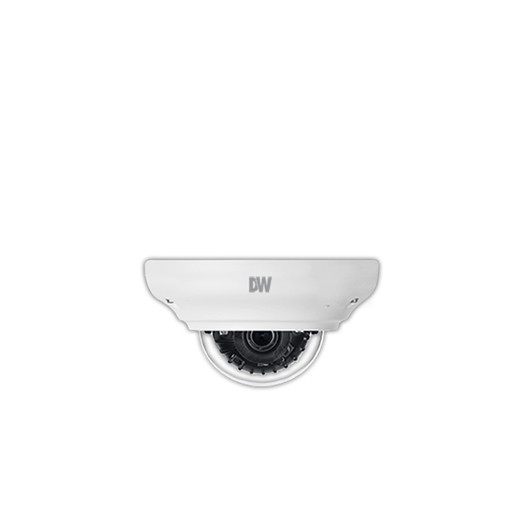

Digital Watchdog DWC-MV75Wi28TW 5MP Outdoor IR Dome Camera

Digital Watchdog DWC-MV75Wi28TW 5MP Outdoor IR Dome Camera

The DWC-MV75Wi28TW is a purpose-built outdoor surveillance dome engineered for environments where vandalism, weather extremes, and 24/7 visibility demands are non-negotiable. At its core sits a 1/2.8" CMOS sensor delivering 5MP (2592 × 1944 resolution)—enough detail to identify faces and read license plates at 30–50 feet under daylight and IR illumination. This is not an indoor camera retrofitted with weatherproofing; the aluminum die-cast housing, IK10 vandal rating, and IP67 seal are built in from the ground up.

Key Features

• 5MP CMOS Sensor (2592 × 1944): Delivers forensically useful detail on people and vehicle identification across typical outdoor perimeters without requiring extreme zoom. Most 2MP cameras fall short in mixed lighting; 5MP closes that gap cost-effectively.
• Smart IR™ with 80-Foot Range: The integrated 850nm infrared illuminator reaches 80 feet—sufficient for most parking lots, loading docks, and building perimeters. At 7.2W max power consumption, IR operation won't spike your PoE infrastructure costs across dozens of cameras.
• True WDR (120dB): When a camera frames both dark shadows and bright sunlight (typical at entryways), 120dB wide dynamic range keeps both areas legible. Cheaper cameras clip shadows to black or blow highlights to white; this one handles the contrast in a single frame.
• IK10 Vandal Dome with Aluminum Housing: The dome shell resists impact and tampering—important in retail, warehouse, and industrial settings where crews work nearby. Not a suggestion; a tested rating.
• IP67 Environmental Seal: Dust-proof and submersible to 1 meter for 30 minutes. Rain, salt spray, and condensation won't compromise the optics or connectors. Deploy in coastal or chemical-wash environments without flinching.
• PoE-Powered (7.2W Max): Single Ethernet run delivers power and data. No separate 12V supply, no conduit runs for power—cuts installation time and labor costs by 25–40% on wired deployments.
• H.264/H.265 Dual-Stream Codec: H.265 cuts bitrate roughly 50% versus H.264 at equivalent quality. On a 24/7 multi-camera NVR, that means half the storage footprint and network bandwidth. Main stream for recording; sub-stream for live viewing on bandwidth-constrained links.
• Smart DNR™ 3D Digital Noise Reduction: Reduces grain in low-light IR footage without washing out fine detail. Critical when relying on IR as your primary night light source.
• Three Fixed Focal Lengths (2.8mm, 4.0mm, 6.0mm): Factory-selectable at order—no adjustments post-installation. Choose 2.8mm (102° horizontal) for wide lobby coverage, 4.0mm (77°) for general patrol, or 6.0mm (52°) for distant detail work. Plan your FOV before you buy.
• Advanced IVA (Intelligent Video Analytics) Support: Intrusion detection, line-crossing, loitering, and tamper detection run on-device—no expensive external analytics server needed. 16 programmable privacy masks let you exclude irrelevant areas (parking signs, trees) from processing.
• Micro SD Local Recording (Up to 1TB): On-camera storage provides failsafe backup if your NVR goes offline. USB card reader access means forensic retrieval without removing the camera.

Integration and Compatibility

The DWC-MV75Wi28TW integrates via standard IPv4 protocols (HTTP, HTTPS, RTSP, SNMP) with major network video recorders and VMS platforms including DW Spectrum® IPVMS, Milestone Systems, and ExacqVision. Multi-user authority and 802.1X support enterprise authentication policies. Bonjour, DDNS, DHCP, and UPnP discovery simplify provisioning in networks where static IP assignment is cumbersome. This flexibility means you're not locked into a single ecosystem; the camera will talk to whatever NVR or management platform your integration team specifies.

Environmental Tolerances

Operating range of -4°F to 122°F (-20°C to 50°C) and 10–90% humidity (non-condensing) covers most climates short of extreme deserts or arctic bunkers. Thermal expansion and contraction of the die-cast housing are accounted for in the design, so seasonal temperature swings won't degrade the seal or optics over time.

Deployment Scenarios

Ideal for building perimeters, parking facility canopy mounting, loading dock coverage, industrial plant surveillance, and transportation hubs. The combination of 5MP resolution, 80-foot IR, IK10 vandal protection, and IP67 sealing makes it a go-to choice when you need outdoor visibility without exotic engineering. Pair with a PoE-powered switch and you'll have a complete wired outdoor camera run with no additional power infrastructure.

Frequently Asked Questions

Q: What's the minimum light level the DWC-MV75Wi28TW can operate in?

A: 0.0 lux in black-and-white mode (full IR), and 0.13 lux in color mode with SmartIR active. In practical terms, this means near-total darkness is not a blocker—the camera will deliver usable footage.

Q: Does the DWC-MV75Wi28TW support remote playback through standard mobile apps?

A: The camera itself streams via RTSP and HTTP/HTTPS standards. Playback capability depends on your NVR or VMS platform. DW Spectrum, Milestone, and ExacqVision all ship mobile clients; verify your chosen platform's app before deployment.

Q: Can I change the focal length after installation?

A: No. The 2.8mm, 4.0mm, and 6.0mm options are fixed at the factory. Verify your required field of view before ordering. If coverage requirements change later, you'd need to swap the camera or add a second unit.

Q: Is the DWC-MV75Wi28TW compliant with NDAA Section 889?

A: No evidence of NDAA compliance is present in the manufacturer specifications. If federal compliance is required, contact the vendor or confirm with procurement.

Q: How much local storage capacity can the microSD card provide?

A: Up to 1TB via standard microSD/SDHC/SDXC cards. At 5MP and H.265 compression, 1TB will hold roughly 48–72 hours of 24/7 continuous recording depending on scene complexity and bitrate.

Q: What's the typical PoE power consumption?

A: 7.2W maximum, which fits comfortably within 802.3af (15.4W) budgets. Across 40 cameras on a standard 95W PoE switch, you're consuming only 288W, leaving headroom for other powered devices.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The DWC-MV75Wi28TW (often searched as DWC MV75Wi28TW) represents a solid mid-range outdoor surveillance dome. The 5MP resolution delivers sufficient detail for identifying faces and license plates at 30–50 feet, while the 80-foot Smart IR range covers most outdoor perimeters without excessive power draw. True WDR 120dB performance handles backlit scenarios effectively—critical for entryways and parking areas where contrast is extreme. The IK10 vandal rating paired with IP67 sealing means this camera is built to survive, not just operate. Unlike cheaper outdoor domes that rely on conformal coating, this one is architected for durability from the ground up.

Technical Highlights:

• H.265 Dual-Stream Codec: Reduces bitrate by roughly 50% versus H.264 at equivalent quality. On multi-camera 24/7 recorders, this translates to cutting your storage footprint and network bandwidth in half—a real operational cost lever, not a marketing angle.
• 7.2W Max PoE Draw: At less than 8 watts, you can deploy 40+ cameras on a single 95W PoE switch without strain. No separate power runs, no auxiliary supplies, no conduit planning—just one Ethernet line per camera.
• Smart DNR™ 3D Noise Reduction: IR footage at night can look grainy. This camera's on-board noise reduction preserves fine detail (faces, hands, vehicle details) while eliminating the visual noise. Makes forensic review faster because you're not squinting at grain.
• Three Fixed Focal Lengths (2.8mm, 4.0mm, 6.0mm): No varifocal motors, no focusing creep, no failure modes. You specify the FOV at order time, mount it, and it stays in focus. Trade-off: less flexible coverage adjustment post-install, but zero mechanical failure risk on a 24/7 outdoor dome.

Deployment Considerations:

• Focal length is factory-set and non-adjustable. If your coverage needs shift after install, you'll need to swap the camera or add a second unit. This is the tradeoff for mechanical simplicity.
• Minimum illumination in color mode (0.13 lux) requires at least dim ambient light or SmartIR. If you're in a pitch-black environment with no reflected IR capability, monochrome (0.0 lux) is your fallback—acceptable for evidence capture but not facial recognition.
• PoE budget of 7.2W is tight. If you're daisy-chaining high-power devices downstream (Pan-Tilt-Zoom cameras, heated wipers), ensure your PoE switch's total budget accounts for cumulative draw.

This camera shines on perimeter walls, canopy mounts over parking areas, and building entry domes where you need dependable 24/7 coverage without servicing. The fixed focal length is a feature if you know your coverage zones; a limitation if you're still planning field of view. Pair it with a competent Digital Watchdog IP camera NVR or a third-party ONVIF-compatible recorder, and you've got a turnkey outdoor surveillance run.
