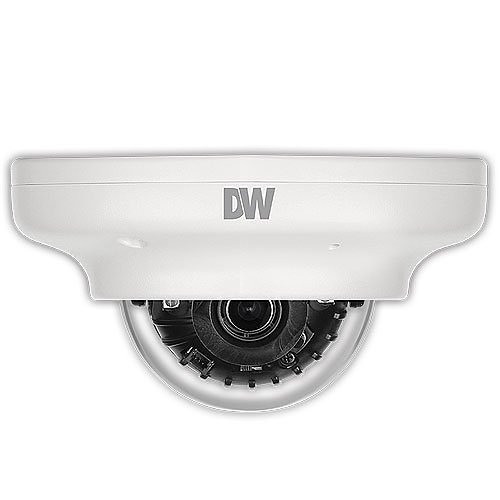

Digital Watchdog DWC-MV95Wi36TW 5MP Outdoor IR Dome

Digital Watchdog DWC-MV95Wi36TW 5MP Outdoor IR Dome IP Camera

The DWC-MV95Wi36TW is a 5MP outdoor dome engineered for perimeter security and building exteriors where weather durability and night visibility are non-negotiable. Built around a 1/2.7" CMOS sensor capturing 2592 × 1944 resolution at up to 30fps, this camera delivers the image detail necessary for facial recognition and vehicle plate capture at moderate distances—critical when you're 40+ feet from your subjects.

Key Features

• 5MP at 30fps across all resolutions: Maintains frame rate even when streaming 1080p or 720p alongside the native 5MP feed, eliminating the frame-rate degradation that plagues cost-compromised domes.
• 100-foot Smart IR™ illumination: Unlike fixed-intensity IR, the DWC-MV95Wi36TW adjusts brightness based on scene depth, preventing the washout you get when a subject is 20 feet away versus 80 feet. Real benefit: fewer false-positive motion triggers in outdoor parking lots.
• True WDR 120dB: Outdoor environments throw mixed lighting—morning sun hitting a white wall while parking lot shadows stay dark. The 120dB range handles this without the ghosting or motion blur that cheaper WDR implementations produce. Useful for building entries, loading docks, and perimeter fences with trees.
• Dual focal length options (2.8mm / 3.6mm): The 2.8mm lens delivers 98.5° field of view for wide-area coverage; the 3.6mm offers 81.4° for more concentrated monitoring. Choose based on your mounting distance and coverage priority—not a one-size-fits-all compromise.
• IP67 + IK10 ratings: IP67 handles rain, snow, and dust ingress. IK10 vandal resistance means the dome survives a 20kg hammer strike—essential in retail parking lots or industrial yards. Most budget outdoor domes skip IK10; this doesn't.
• 6.0W PoE consumption: Draws less than 13W typical, so it won't drain your 802.3af switch. No separate power supply required—run a single Cat6 cable to the camera and terminator.
• Dual H.264/H.265 streaming: H.265 cuts stored file size roughly 40% compared to H.264 on equivalent quality. If you're recording 24/7 across eight cameras, that's the difference between a 4TB and 6TB NVR—real money saved.
• Object classification, line crossing, perimeter intrusion detection: Built-in analytics reduce alert fatigue. The camera distinguishes humans from vehicles from blowing debris, so your security team investigates real events, not false positives from wind-blown paper.
• 0.02 lux color / 0.0 lux B/W: Near-total darkness doesn't blind the camera. The day/night switch automatically transitions to B/W when light drops, maintaining usable footage when outdoor lighting fails.
• 4 privacy masks: Mask sensitive windows, neighboring properties, or parking stalls without degrading video quality outside the masked area. Useful for legal compliance in residential or mixed-use environments.
• Operating range -30°C to 60°C: Works in cold climates without heater/blower enclosures (adds cost and complexity). Handles desert heat without thermal throttling.
• Micro SD/SDHC/SDXC up to 1TB: Local backup storage means you're not entirely dependent on network bandwidth or a remote NVR during an outage. A 1TB card holds roughly 20 days of 5MP 24/7 recording at 5Mbps average bitrate.

Integration & Compatibility

The DWC-MV95Wi36TW supports ONVIF (enabling integration with network video recorders from Milestone, ExacqVision, and others), RTSP, HTTP, HTTPS, and FTP. Native support for DW Spectrum® IPVMS provides tight integration if you're standardizing on Digital Watchdog infrastructure. Built-in microphone and audio I/O enable two-way communication—useful for retail parking lot announcements or perimeter breach audio alerts.

The camera integrates with major VMS platforms through open standards, ensuring you're not locked into a proprietary ecosystem. Firmware updates via the management interface keep the unit current without requiring physical intervention.

When to Choose a Different Model

If your application requires motorized zoom or pan/tilt, move to a PTZ variant in the Digital Watchdog line. If you need indoor monitoring or tighter depth-of-field than 2.8mm/3.6mm affords, consider a box or turret camera instead. If budget is the absolute constraint and you can tolerate basic motion detection without object classification, lower-cost 4MP domes exist—but you'll lose the per-subject intelligence that separates proactive security from reactive log review.

Frequently Asked Questions

Q: What's the warranty on the DWC-MV95Wi36TW?

A: A 5-year manufacturer warranty covers defects in materials and workmanship. This reflects Digital Watchdog's confidence in outdoor durability—most budget domes offer 2–3 years.

Q: Can the DWC-MV95Wi36TW operate in sub-zero climates without a heater?

A: Yes. The rated operating range extends to -30°C (-22°F), so Minnesota winters and mountain installations don't require auxiliary heating enclosures.

Q: Does the Smart IR™ prevent overexposure when a subject is very close to the dome?

A: Yes. Smart IR™ automatically reduces illumination intensity as subjects approach the camera, maintaining detail without the blown-out near-field footage common on fixed-output IR domes.

Q: How much network bandwidth does the DWC-MV95Wi36TW consume at full 5MP resolution?

A: Depends on scene complexity and compression codec. H.265 at 5MP typically ranges 4–8 Mbps in normal outdoor lighting; H.264 double that. The camera supports dual-stream, so you can send high-bitrate to a local NVR and lower-bitrate to a remote viewer without codec re-encoding.

Q: Is the DWC-MV95Wi36TW compatible with non-Digital Watchdog NVRs?

A: Yes, ONVIF compliance ensures compatibility with Milestone Xprotect, Exacq, and other major NVR platforms. You're not forced into proprietary hardware.

Q: Can I mount the dome indoors for hallway coverage?

A: Technically yes (the form factor is a dome), but the IP67/IK10 design is overkill for indoor use. An indoor dome variant may be more cost-effective if you're running parallel indoor/outdoor deployments.

Jerry Tildsen

The DWC-MV95Wi36TW delivers genuine enterprise features in a weather-hardened form factor. The dual focal length design is pragmatic—your installer doesn't compromise on coverage to avoid re-ordering; you pick the lens distance at purchase, and both options integrate identically. The 100-foot Smart IR™ and True WDR 120dB combination is where this camera earns its position: outdoor environments throw high contrast and dynamic range that cripple budget domes, and this unit handles both without the image quality degradation you see in cheaper implementations.

Technical Highlights:

• Smart IR™ with auto-intensity adjustment: Prevents the near-field washout and far-field darkness that plague fixed-output IR systems. Real impact in parking lots where subjects range from 15 feet to 80 feet.
• True WDR 120dB: Outdoor perimeters don't have uniform lighting. This range eliminates the ghosting and detail loss you get when sunlit walls coexist with deep shadows—critical for building entries and fence lines with deciduous cover.
• H.265 dual-stream at 30fps across all resolutions: Your NVR gets full 5MP primary stream while a secondary 1080P stream handles remote viewing without re-encoding penalty. That's efficient bandwidth management without codec CPU overhead on the camera.
• IK10 + IP67 with -30°C to 60°C operating range: Eliminates the need for heater/blower enclosures (cost and maintenance headache). The vandal dome survives deliberate impact. You deploy once and forget about it.

Deployment Considerations:

• The 2.8mm lens is wide (98.5° HFOV)—useful for perimeter sweeps but less ideal for plate capture at 50+ feet. The 3.6mm narrows to 81.4° for more focused monitoring. Choose based on your primary objective, not as a compromise.
• Built-in analytics (object classification, line crossing, intrusion detection) require ONVIF profile compliance in your NVR or VMS. If you're running older or proprietary systems, these features may not expose through the management interface. Confirm VMS vendor certification before deployment.
• Local SD card storage is backup, not primary—a 1TB card holds roughly 20 days at average bitrate. Design your retention strategy around the NVR, not the edge storage, or you'll face gaps when network outages exceed card write cycles.

Position this camera in outdoor perimeter deployments where weather resistance, night visibility, and false-alert reduction matter—parking lots, building entries, fence lines, and industrial yard perimeters. It's not the cheapest dome, but it's not engineered as one. The 5-year warranty and IK10 durability signal confidence in long-term field reliability, which translates to fewer RMA cycles and lower total cost of ownership over a typical 5–7 year deployment lifecycle.
