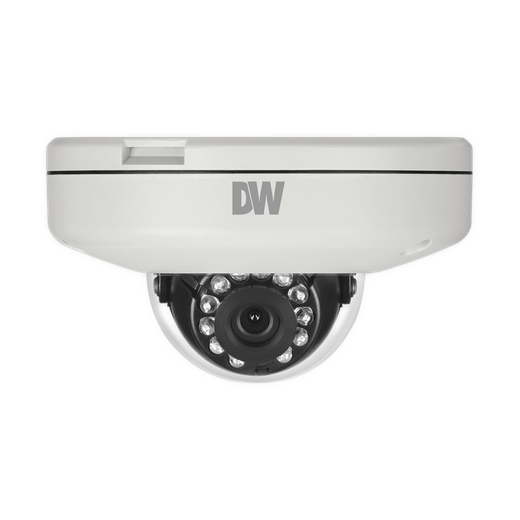

Digital Watchdog DWC-MF4Wi4C2 4MP 4.0mm Fixed Lens Low Profile Vandal Dome IP Camera

Discontinued — No Longer Available NewThis model has been discontinued by Digital Watchdog. Shop current Digital Watchdog products → or see the r…

$1,141.00 $633.99 SAVE $507
Ships same business day
In stock

Quantity:

Adding to cart… The item has been added
Compatibility guidance available for your deployment
Senior specialists for pre and post-sales support
Authorized sourcing and documentation support
Shipping and lead-time confirmation before install

Laura Bennett, IPSD Senior Specialist

Talk to Laura

200+ hrs training • U.S - based

Senior Specialist • 877-277-7147

Digital Watchdog DWC-MF4Wi4C2 4MP 4.0mm Fixed Lens Low Profile Vandal Dome IP Camera

$1,141.00
$633.99

Overview

SKU: DWC-MF4Wi4C2
UPC: 812226032372
Condition: New
Availability: No Longer Available
Warranty 5-year warranty

No Bots, Just Experts

Questions about this product? Free pre-sales support from a senior specialist — product questions, compatibility checks, BOM quotes, price confirmation — typically answered within one business day. Need camera placement or system design work? Engineering time is $175 per hour (qty 1 = 1 hour). Hardware buyers get up to one hour ($175) credited back on their order.

Description

Discontinued — No Longer Available New

This model has been discontinued by Digital Watchdog. Shop current Digital Watchdog products → or see the recommended alternatives below.

Elevate your security system with the Digital Watchdog DWC-MF4Wi4C2, a state-of-the-art 4MP vandal dome IP camera engineered for indoor and outdoor environments. Featuring a 4.0mm fixed lens and a 1/3" CMOS sensor, this camera delivers crystal-clear images at a real-time frame rate of 30fps. Its compact and low-profile design makes it an ideal choice for discreet surveillance without compromising quality. Equipped with advanced technologies such as Star-Light Plus™ for exceptional low-light performance and Smart IR™ for up to 50 feet of night vision, this camera ensures detailed recording even under challenging conditions. Additionally, the camera comes pre-loaded with DW Spectrum® IPVMS, enabling seamless setup and robust operation right out of the box.

Key Features

  • High-Resolution 4MP Video: Delivers detailed and sharp images, ensuring comprehensive coverage and enhanced security.
  • Fixed 4.0mm Lens: Provides a wide 81° horizontal field of view, capturing extensive areas without the need for repositioning.
  • Star-Light Plus™ Technology: Offers superior imaging in near-total darkness, maintaining quality and clarity.
  • Smart IR™ Night Vision: Extends up to 50 feet, guaranteeing effective surveillance even in complete darkness.
  • True Wide Dynamic Range (WDR): Optimizes both the bright and dark areas of a scene to provide usable video.
  • Built-In Storage Options: Available with 256GB, 128GB, or 64GB of internal storage, allowing for up to 30 days of video retention.
  • Robust Environmental Protection: IP66-rated for dust and water resistance and IK10-rated for impact resistance, suitable for harsh conditions.
  • Integrated Video Analytics: Enhances security with programmable motion detection and privacy zones.

Compatibility

  • Network Integration: Fully ONVIF conformant, ensuring compatibility with a range of network video recorders and third-party systems.
  • Power Options: Supports both PoE class 3 and DC12V for flexible installation options.
  • System Management: Easily managed through DW Spectrum® IPVMS, accessible via standard web browsers on various platforms.

Package Contents

  • DWC-MF4Wi4C2 Dome Camera
  • Mounting Hardware and Template
  • User Manual
  • Software Installation CD
  • Warranty Card (5-Year Warranty)

Summary

The Digital Watchdog DWC-MF4Wi4C2 is an exemplary choice for those seeking advanced security features in a compact and durable form. Its high-resolution video, extensive storage options, and easy deployment make it a powerful asset for protecting your premises. Whether used in retail, corporate, or outdoor settings, this camera provides reliable surveillance and integrates seamlessly into existing security infrastructures.

Specifications
Frame Rate: 30fps
Sensor Type: 4MP 1/3" CMOS sensor
Max Resolution: 4MP
Minimum Scene Illumination in color: 0.0 lux (B/W), 0.41 lux (color)
Test Video Output: Local video output CVBS 1.0V p-p (75Ω), 4:3 aspect ratio
Total Pixels: 2688 (H) x 1520 (V)
Local server recording: 128GB local memory for recording, 256GB local memory for recording, 64GB local memory for recording
Max. number of CaaS™ cameras in the same network/system: Up to 30 MEGApix® CaaS™ cameras in the same network/system
Number of DW Spectrum® CaaS™ licenses included: 1 DW Spectrum® CaaS™ license included
Focal Length: 4.0mm
Horizontal Field of View (HFOV: 81°
IR Distance: 50' range Smart IR™
Lens Type: Fixed Lens
3D digital noise reduction: Smart DNR™ 3D Digital Noise Reduction
Auto gain control: Auto
Day and Night: Auto day/night, Day (color), Night (B/W)
Mirror/flip: Yes
Motion Detection: Yes
Operational Notifications: Alarm output activation, Email, FTP server
Privacy Zones: 4 programmable privacy masks
Sharpness: Yes
Shutter Mode: Anti-Flicker, Auto, Manual, Slow Shutter
Shutter Speed: 1/30 ~ 1/32000
Slow Shutter Speed: Off, x10, x5, x7.5
White Balance: Yes
Wide Dynamic Range (WDR: True WDR 120dB
Bitrate Control: CBR/VBR H.264, variable bitrate
IP: IPv4
LAN: 802.3 compliance 10/100 LAN
Network resolution: H.264: 1440p/2.1MP/1080p/720p/VGA/D1/CIF, MJPEG: 1280x720
Network Web Viewer: Chrome, Edge, Firefox, Safari on Windows/Mac/Linux
Protocol: DDNS, DHCP, DNS, FTP, HTTP, HTTPs, ICMP, NTP, ONVIF, RTP (UDP/TCP), RTSP, SMTP, SNMPv1/v2/v3 (MIB-2), SSL, TCP/IP, UDP, Zeroconf (AutoIP)
Security: 802.1x, Digest authemtication (ID/PW), HTTPS (TLS), IP filtering
Stream Speed: Up to 30fps at all resolutions
Video Bitrate: 100Kbps~10Mbps, multi-rate for preview and recording
Video Compression Type: H.264, MJPEG
Video Management Software: DW Spectrum® IPVMS
Environmental Operating Humidity: 10-90% (non-condensing)
Environmental Operating Temperature: -4°F ~ 122°F (-20°C ~ 50°C)
Camera Dimensions (H X W X D: 4.92" x 2.9" (125 x 74.3 mm)
Camera Weight: 1.54 lbs (0.7kg)
Housing: Vandal Dome
Vandal Rating: IK10 Rated
IP Rating: IP66
Materials: Aluminum die-casting
Power (Max: DC12V: max 5.6W, 466.6mA, PoE: max 7.4W
Power Requirements: Adapter not included, PoE
Warranty: 5 Year Warranty
Storage Size: 256GB
Housing Color: White
