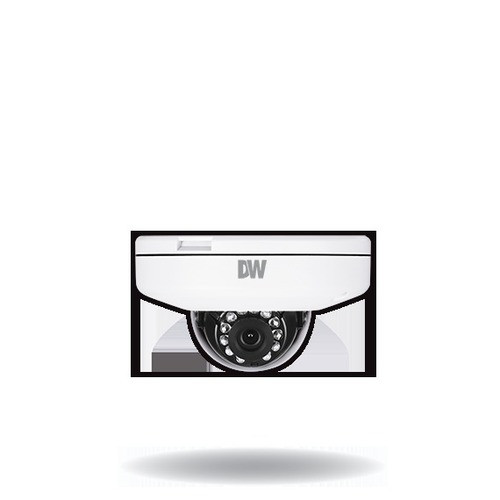

Digital Watchdog DWC-MF4Wi6WC5 4MP 6.0MM Fixed Lens IR Outdoor Dome IP Camera

Digital Watchdog DWC-MF4Wi6WC5 4MP Outdoor Dome Camera

The Digital Watchdog DWC-MF4Wi6WC5 is a professional-grade 4MP IR outdoor dome camera engineered for demanding surveillance applications. Featuring a 6.0mm fixed lens with 1/3" CMOS sensor, this camera delivers exceptional low-light performance and robust durability in harsh outdoor environments. With Smart IR™ technology extending 50 feet and True WDR at 120dB, it excels in diverse lighting conditions while maintaining crisp, detailed video across all resolutions at 30fps.

Key Features

• 4MP resolution with 2688 x 1520 total pixels for detailed video capture
• Smart IR™ night vision with 50-foot range for 24/7 surveillance capability
• True WDR 120dB for balanced exposure in high-contrast environments
• IP66-rated housing for complete dust and water protection
• IK10-rated vandal dome construction for impact resistance
• 81° horizontal field of view with 6.0mm fixed focal length
• PoE power delivery for simplified installation
• H.264 and MJPEG video compression with multi-streaming support
• 4 programmable privacy masks for sensitive area protection
• Smart DNR™ 3D digital noise reduction for cleaner low-light video

Technical Highlights

This camera operates across a temperature range of -4°F to 122°F (-20°C to 50°C) with 10-90% humidity tolerance, making it suitable for diverse climates. The aluminum die-cast housing with white vandal dome design provides both aesthetic integration and maximum durability. Video bitrate control ranges from 100Kbps to 10Mbps, supporting flexible bandwidth management for network deployment.

Connectivity options include IPv4, 802.3 10/100 LAN, and comprehensive protocol support including ONVIF, RTSP, HTTP/HTTPS, and SNMPv1/v2/v3. The camera supports multiple network resolutions: 1440p, 2.1MP, 1080p, 720p, VGA, and CIF via H.264, with compatible browser support across Windows, Mac, Linux, and all major browsers.

Storage & Management

The camera includes one DW Spectrum® CaaS™ license for cloud-based video management and supports up to 30 MEGApix® CaaS™ cameras in the same network. It features operational notifications via alarm output, email, and FTP server alerts. Advanced shutter controls include anti-flicker, auto, manual, and slow shutter modes (x5, x7.5, x10) with speeds from 1/30 to 1/32000.

Applications

Ideal for perimeter protection, parking lot monitoring, building exteriors, retail environments, and industrial facilities. The combination of rugged construction, advanced analytics support, and reliable low-light performance makes this camera suitable for mission-critical outdoor surveillance deployments requiring long-term durability and consistent image quality.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The DWC-MF4Wi6WC5 represents a balanced solution for outdoor surveillance. Its 4MP resolution with 81° FOV provides adequate coverage for medium-range monitoring without excessive wide-angle distortion. The 50-foot Smart IR range is competitive for mid-sized outdoor areas, though installations exceeding this distance may require supplemental lighting.

True WDR 120dB ensures performance in challenging backlit scenarios common to outdoor perimeter security. The IP66/IK10 ratings confirm professional-grade weatherproofing and impact resistance suitable for vandalism-prone areas. PoE power simplifies deployment over Cat5e infrastructure.

Video management through DW Spectrum® IPVMS provides streamlined integration into larger Digital Watchdog ecosystems. Consider this camera for facilities prioritizing durability and reliable low-light capture over ultra-high resolution or advanced AI analytics.

Available in White.
