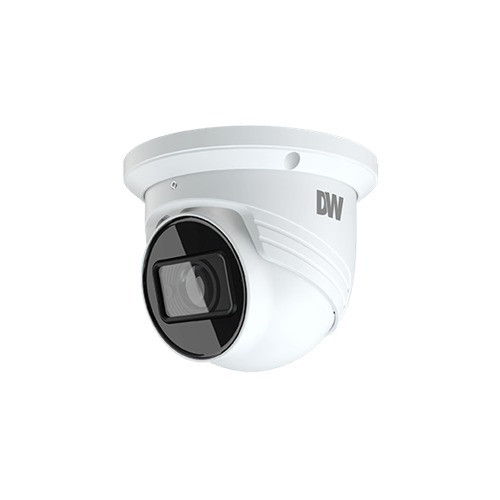

Digital Watchdog DWC-D4583WTIR 5MP Star-Light IR Indoor Vandal Dome IP Camera

Digital Watchdog DWC-D4583WTIR 5MP Star-Light IR Dome Camera

The Digital Watchdog DWC-D4583WTIR delivers professional-grade indoor surveillance with 5-megapixel resolution and advanced infrared night vision. Built for critical security applications in retail, office, and institutional environments, this vandal-resistant dome camera combines HD image quality with intelligent low-light performance and flexible signal compatibility.

Key Features

• 5MP resolution with 2608 x 1960 active pixels for detailed imagery
• Star-Light technology with up to x32 sense-up for extreme low-light performance
• 70-foot Smart IR range with automatic day/night switching
• Motorized 2.7-13.5mm varifocal lens with auto-focus and P-iris control
• True WDR 120dB for balanced exposure in mixed lighting
• Multi-signal support: CVBS, HD-Analog, HD-CVI, HD-TVI, and Universal HD over Coax
• Built-in microphone with audio frequency response 50Hz-10KHz
• 24 programmable privacy zones for sensitive area masking
• IP66-rated plastic dome housing with Snapit construction
• Dual power options: 24V AC or 12V DC via PoE
• Operating range: -4°F to 122°F with 10-90% humidity tolerance
• 5-year manufacturer warranty

Technical Highlights

The DWC-D4583WTIR utilizes a 5MP 1/2.8" CMOS sensor with progressive scan for flicker-free operation at 50Hz and 60Hz frequencies. Maximum resolution reaches 5MP at variable frame rates, with HD formats supporting up to 1080p @ 30fps and 4MP/1440p recording. Smart DNR 3D noise reduction minimizes grain in dark scenes while the de-fog algorithm enhances clarity in humid conditions.

Motorized optics provide flexible field-of-view adjustment (85° to 32° horizontal), enabling installation flexibility across diverse indoor spaces. Auto gain control, backlight compensation, white balance, and gamma adjustment (0.45) ensure consistent image quality throughout the day. The camera supports Pelco C and UTC protocols for seamless integration with existing control systems.

Installation & Connectivity

PoE-powered design eliminates separate power infrastructure. Universal HD over Coax compatibility allows deployment on existing coaxial cabling, reducing installation costs in retrofit applications. Compact dimensions (4.24" x 3.9") enable discrete ceiling mounting. Both analog (CVBS) and digital test video output support rapid commissioning and troubleshooting.

Ideal Applications

Recommended for indoor retail stores, office lobbies, educational hallways, banking facilities, and utility monitoring where vandal resistance and detailed night-vision imagery are critical. The combination of motorized zoom, privacy zones, and multi-signal compatibility makes it suitable for legacy and modern hybrid security infrastructures.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The DWC-D4583WTIR addresses a specific market gap: installers requiring 5MP HD-over-Coax capability with genuine infrared night vision and motorized lens control. The x32 Star-Light sense-up delivers measurable performance in zero-color-light environments (0.0 lux B/W), outperforming fixed-lens alternatives in dimly-lit spaces. True WDR 120dB prevents backlit washout, critical for monitoring doorways and windows.

The multi-signal protocol support (CVBS through HD-TVI/CVI) future-proofs investments in hybrid analog-digital systems. Power consumption remains modest (3.96-7.13W depending on configuration), important for large-scale PoE deployments. Five-year warranty reflects OEM confidence in reliability.

Limitations include maximum 20fps at native 5MP (standard for analog HD formats), making this camera better suited to event-driven monitoring than continuous high-frame-rate recording.
