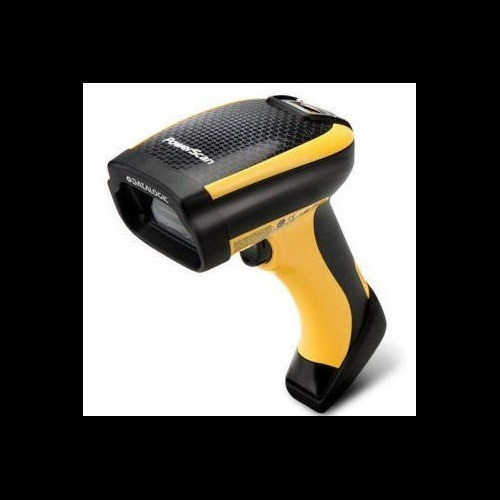

Datalogic PM9600-SR910RB 2D Area Imager Industrial Scanner
The Datalogic PM9600-SR910RB is a handheld 2D area imager scanner built for distribution centers, manufacturing floors, and healthcare supply chains. It combines IP65 environmental sealing with a 2.5 m (8.2 ft) drop rating — meaning the device survives spills, dust, and routine rough handling without protective cases or frequent replacement. The 10 million trigger press durability translates to roughly 3–5 years of typical warehouse scanning before mechanical wear becomes a factor, which simplifies fleet maintenance planning and reduces emergency device rotations.
Key Features
- 2D Area Imager Scan Engine: Captures both 1D barcodes and 2D matrix codes (QR, Data Matrix, PDF417) in a single read cycle. Eliminates the need for separate devices in mixed-barcode environments, cutting inventory complexity.
- IP65 Sealing: Dust and water resistant — handles moisture-prone areas like receiving docks, coolers, and outdoor logistics yards without workarounds. Not submersion-rated, so avoid full-water environments; IP67 variants exist for higher water exposure.
- 2.5 m Drop Rating: Concrete-floor impacts are routine in warehouses; this rating removes the calculus of protective cases versus cost, letting operators handle the device as-is.
- Bluetooth 5.0 with STAR Radio Options (433/910 MHz): Wireless flexibility without sacrificing range or latency. Wired fallback via USB and RS-232 supports legacy infrastructure during phased digital transformation. Choose wireless for mobile picking; choose wired for fixed checkout stations.
- 10 Million Trigger Presses: Durability target allows predictable replacement cycles. In high-volume scanning (500+ scans/day), expect 2–3 years of reliable field life before maintenance escalates.
- Lightweight Form Factor (440 g / 0.97 lb): All-day scanning without hand fatigue — critical in picking and receiving roles where operators handle 1,000+ scans per shift. Compact 71 × 203 × 107 mm footprint fits gloved hands and belt holsters.
- Datalogic Green Spot Good-Read Feedback: Visual confirmation of successful scans reduces double-scans and data-entry errors in fast-paced environments. Operators confirm capture instantly without checking a screen.
Integration and Deployment Flexibility
The PM9600-SR910RB supports both wired (USB, RS-232) and wireless (Bluetooth 5.0, STAR Radio) deployment modes, making it practical for mixed-infrastructure sites. Organizations standardizing on a single scanner model across multiple warehouses and manufacturing plants reduce training overhead, spare-parts fragmentation, and device rotation complexity — all measurable cost drivers in large fleets. The Datalogic PowerScan 9600 Series platform supports cross-facility standardization without forcing infrastructure replacement.
When to Choose a Different Model
If your environment requires submersion (e.g., washdown-intensive food processing or pharmaceutical clean rooms), consider an IP67-rated variant or contact the manufacturer for environmental-seal upgrades. If you need extended-range wireless (100+ meters), evaluate dedicated radio-frequency identification (RFID) or ultra-wideband solutions instead. For applications with minimal barcode volume or outdoor-only stationary scanning, a fixed-mount scanner may reduce per-unit cost.
Frequently Asked Questions
Q: What symbologies does the PM9600-SR910RB decode?
A: The 2D area imager reads 1D codes (Code 39, Code 128, EAN/UPC, etc.) and 2D matrix codes (QR, Data Matrix, PDF417, Aztec) in a single read. Datalogic's decoder firmware supports standard industrial symbologies; consult the product datasheet for the full list.
Q: Can I use the PM9600-SR910RB indoors and outdoors?
A: Yes. The IP65 rating handles indoor moisture (spills, steam) and outdoor elements (light rain, dust). It is not rated for direct submersion or high-pressure wash jets. Outdoor use in dry climates (sun exposure only) is standard; avoid wet-floor or washdown areas without protective housings.
Q: What is the warranty on the PM9600-SR910RB?
A: The product includes a 1-Year Limited Warranty covering defects in materials and workmanship. Extended warranties may be available through the distributor or manufacturer.
Q: Does the PM9600-SR910RB require a separate charge controller for Bluetooth mode?
A: No. Bluetooth 5.0 is integrated. For wired deployments, USB and RS-232 ports connect directly to terminals or industrial computers without additional radios. STAR Radio options (433/910 MHz) are integrated variants; specify the model during purchase.
Q: How long does the battery last on a single charge?
A: Battery runtime depends on Bluetooth activity, trigger frequency, and LED/vibration usage. Datalogic typically rates PowerScan 9600 batteries for 8–12 hours of moderate scanning. Refer to the product datasheet for battery specifications and replacement procedures.
Q: Is the trigger replaceable, or do I need to replace the entire scanner after 10 million presses?
A: The 10 million trigger press rating indicates when wear becomes significant. Consult Datalogic's service documentation or your distributor to confirm whether trigger modules are field-replaceable or if the scanner requires depot service.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The PM9600-SR910RB addresses a specific enterprise pain point: device fragmentation across warehouses and manufacturing sites. By standardizing on a single scanner model, you eliminate training variability, reduce spare-parts overhead, and accelerate device rotation during maintenance cycles. The 10 million trigger press durability gives you a predictable replacement window — typically 3–5 years in typical warehouse operations — which allows you to model total cost of ownership with confidence rather than guessing when devices will fail.
Technical Highlights:
- IP65 Sealing + 2.5 m Drop Rating: Designed for real-world logistics, not lab conditions. Spills, dust, and concrete-floor impacts become routine maintenance issues rather than device-replacement events. The combination means you're not replacing scanners after every mishap.
- Dual Connectivity (Bluetooth 5.0 + Wired USB/RS-232): Critical for phased digital transformation. Existing facilities can stay on RS-232 while new installations go wireless. No rip-and-replace cycles; no stranded legacy infrastructure.
- 440 g Form Factor: All-day scanning without hand fatigue. In high-volume picking (1,000+ scans/shift), this weight translates to fewer operator breaks and higher throughput per labor hour.
Deployment Considerations:
- IP65 is not submersion-rated — if your site has washdown requirements or full-immersion protocols, confirm with Datalogic whether IP67 upgrades are available or if protective cases are mandatory.
- Bluetooth 5.0 range depends on facility RF environment; dense metal shelving and cinder-block walls reduce effective range. Test wireless coverage before full rollout, or plan for wired fallback at choke points.
- The STAR Radio variants (433/910 MHz) are separate SKUs — confirm your order includes the correct radio option if you're deploying beyond standard Bluetooth.
The PM9600-SR910RB is built for distribution and manufacturing sites where device durability, mixed-connectivity support, and standardization across multiple facilities drive ROI. Cross-dock operations, high-velocity picking, and manufacturing-floor pack-to-ship workflows benefit most from its combination of ruggedness and wireless flexibility.
