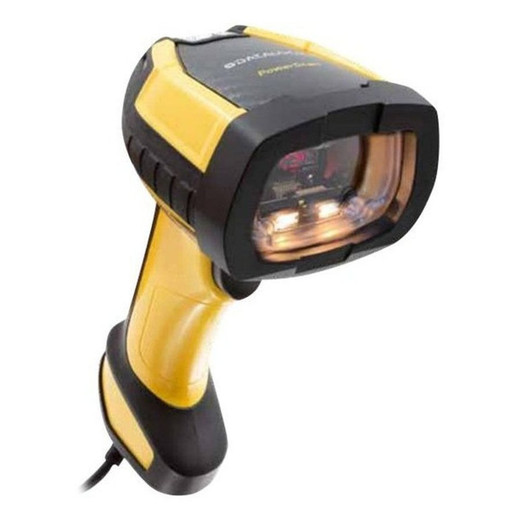

Datalogic PBT9600-HPRB PowerScan 9600 Industrial 2D Barcode Scanner
The Datalogic PBT9600-HPRB is a rugged, enterprise-grade 2D area imager barcode scanner built for manufacturing floors, logistics hubs, and field operations where durability and reliable wireless connectivity are non-negotiable. This scanner combines industrial-strength sealing and impact resistance with modern Bluetooth 5.0 support and proven trigger longevity — a straightforward choice for organizations standardizing barcode capture across multiple facilities.
Key Features
- 2D Area Imager technology: Captures 1D linear and 2D matrix codes (QR, Data Matrix, PDF417) at reading speeds that keep pace with conveyor-fed and handheld workflows. Unlike laser scanners, the area imager reads damaged or poorly printed codes more reliably in real-world supply chain conditions.
- IP65 environmental sealing: Complete protection against dust and water spray means the scanner operates uninterrupted in wet dock areas, outdoor receiving yards, and manufacturing bays where washdown is routine. You won't need a separate protective case for light-duty moisture exposure.
- 2.5 m (8.2 ft) drop rating: Survives accidental concrete-floor impacts during high-tempo sorting and picking operations. This eliminates the hidden cost of frequent device replacement and reduces downtime from field repairs.
- Bluetooth 5.0 connectivity: Pairs with modern mobile computing devices and warehouse management systems without requiring wired tethering. Bluetooth 5.0 extends range and improves connection stability compared to older Bluetooth standards — important in large, multi-story facilities where signal penetration matters.
- STAR Radio options (433/910 MHz): For sites where Bluetooth traffic is congested or facility radio infrastructure is already established, STAR Radio provides a dedicated wireless alternative independent of mobile device ecosystems.
- Wired connectivity (USB, RS-232): Simultaneous support for wired and wireless protocols allows you to deploy the same model across docking stations, fixed workstations, and mobile carts without device proliferation.
- 10 million trigger durability rating: At roughly 50 scans per minute in a typical shift, this translates to 3–4 years of heavy daily use before mechanical wear becomes a factor. Reduces total cost of ownership and simplifies fleet budgeting.
- Lightweight design (440 g / 0.97 lb) with compact 71 × 203 × 107 mm footprint: Reduces operator hand fatigue during 8–10 hour shifts and fits easily into cargo pockets or belt-mounted holsters on mobile carts. Ergonomics directly affect productivity and worker injury rates.
- Green Spot good-read feedback: Visual confirmation that a barcode was successfully captured eliminates the guesswork and re-scans that slow down high-volume transactions.
- 1-Year Limited Warranty: Standard coverage for defects in materials and workmanship; extended plans are available through most distributors for multi-year deployments.
Integration & Compatibility
The PBT9600-HPRB integrates directly into most warehouse management systems (WMS), inventory platforms, and retail point-of-sale networks via its standard USB HID emulation mode — no custom drivers required. STAR Radio variants support facility-specific RF infrastructure, making this model suitable for organizations with existing Zebra, Symbol, or proprietary ISM-band networks.
For teams evaluating barcode scanners across multiple departments, standardization on the PowerScan 9600 series simplifies training, spare parts procurement, and IT support. The combination of wired and wireless options means a single model type can serve both fixed and mobile workflows.
Ideal Deployment Scenarios
- Manufacturing assembly lines: Continuous verification of part numbers, serial numbers, and lot codes at high throughput with minimal false reads.
- Warehouse receiving and put-away: Handheld barcode verification during inbound truck unload and aisle placement, with wireless freedom to move pallets without tethering to fixed terminals.
- Cross-dock logistics: Rapid barcode capture during rapid package sort operations where scanner durability and operator portability are critical.
- Healthcare supply chain: Patient identification and medication/equipment verification workflows where IP65 sealing meets infection control cleaning protocols.
- Field service and delivery: Outdoor proof-of-delivery scanning in variable weather, where drop resistance and dust sealing matter.
Frequently Asked Questions
Q: Does the PBT9600-HPRB require a separate power supply or base station?
A: The scanner draws power via USB (wired mode) or from rechargeable batteries paired with optional charging cradles (wireless mode). No separate external power adapter is required for operation.
Q: Is the PBT9600-HPRB compatible with major WMS platforms like Manhattan, SAP, or Oracle NetSuite?
A: Yes. The scanner's standard USB HID emulation mode makes it plug-compatible with any WMS that accepts barcode input via keyboard interface. Consult your WMS vendor's approved device list for certification status on your specific version.
Q: What's the difference between Bluetooth 5.0 and the STAR Radio option on the PBT9600-HPRB?
A: Bluetooth 5.0 connects directly to mobile devices and standard wireless networks; it's ideal for BYOD or mobile device fleets. STAR Radio (433/910 MHz) operates on a separate ISM band and requires facility-side RF base stations — useful if your site already has Zebra or Symbol RF infrastructure, or if you need independent wireless coverage without competing on the Bluetooth spectrum.
Q: Can the PBT9600-HPRB read QR codes and 2D barcodes, or only 1D codes?
A: The 2D area imager engine reads both 1D (Code 128, UPC, EAN) and 2D codes (QR, Data Matrix, PDF417, Aztec) without any hardware change. This flexibility allows you to migrate from linear barcodes to 2D encoding as supply chain standards evolve.
Q: What is the warranty period on the PBT9600-HPRB, and what does it cover?
A: Standard coverage is 1 year from date of shipment, covering defects in materials and workmanship. Extended 3- or 5-year plans are available; contact your supplier for pricing and coverage terms.
Q: Is the PBT9600-HPRB suitable for outdoor use in rain or high-dust environments?
A: Yes. The IP65 rating means it withstands sustained water spray and fine dust ingress without performance degradation. It's rated for outdoor dock areas and covered outdoor storage, but not for full submersion or heavy salt-spray coastal environments.
The Datalogic PBT9600-HPRB represents a mature, field-proven platform for organizations deploying barcode capture across warehouses, manufacturing lines, and mobile fulfillment teams. The combination of IP65 sealing, 2.5 m drop durability, and 10 million trigger-press lifespan creates a scanner built for continuous industrial use — not a lightweight consumer tool. Bluetooth 5.0 support enables modern mobile-centric workflows, while the option for STAR Radio provides facility-specific wireless independence for sites with existing RF infrastructure.
Technical Highlights:
- 2D area imager with 1D/2D code support: Unlike laser-based scanners, the area imager reads partial barcodes, damaged labels, and high-density codes reliably — a genuine advantage in fast-moving logistics where label quality varies. Real-world uptime improves when you're not reshuffling packages to get a clean read.
- IP65 ingress protection: Dust and water spray won't trigger field replacements. This translates to lower per-unit lifecycle cost and fewer unplanned downtime incidents when equipment moves between climate-controlled warehouses and outdoor dock areas.
- 10 million trigger presses: At 50 scans per minute across a busy shift, this rating means 3–4 years of heavy use before mechanical wear becomes significant. For fleet standardization, this lifespan reduces churn and simplifies spare parts budgets.
- Lightweight (440 g) and compact form factor: Operator fatigue is real in logistics; lighter scanners reduce hand strain and improve scan accuracy over long shifts. The compact design also fits existing holster systems and mobile cart integrations without redesign.
Deployment Considerations:
- Wireless ecosystem selection: Bluetooth 5.0 is the obvious choice for sites deploying modern handheld terminals or BYOD workflows. If your site runs legacy Zebra RF base stations or has heavy Bluetooth interference, plan for STAR Radio variant instead — it's a field upgrade, not a retrofit.
- Battery and charging logistics: Wireless operation requires rechargeable battery packs and charging cradles; account for dual-battery hot-swap setups in high-tempo environments so scanners never go offline mid-shift.
- WMS integration is standard: USB HID mode means plug-and-play with most WMS platforms, but verify your specific version's device certification list early in the evaluation process — some enterprise WMS versions maintain tight approved-hardware rosters.
The PBT9600-HPRB is the right tool for multi-facility operations standardizing on a single scanner type across receiving, put-away, picking, and shipping workflows. Its durability and dual-connectivity support make it a low-risk deployment choice for warehouse automation and manufacturing environments running 24/7 operations.
