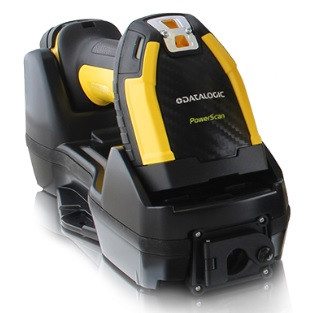

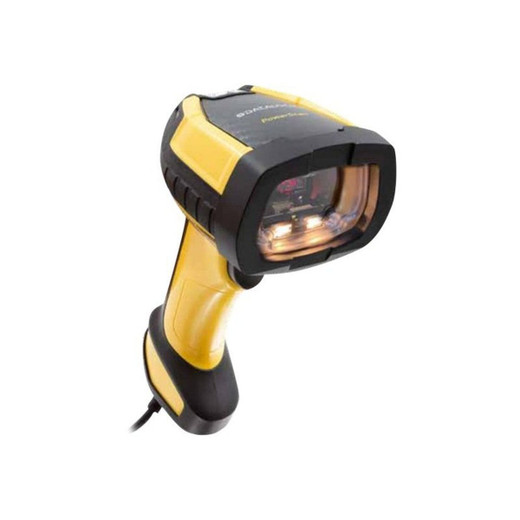

Datalogic PBT9600-SRRBK20US 2D Area Imager Handheld Barcode Scanner
The Datalogic PBT9600-SRRBK20US PowerScan 9600 Series is a rugged industrial-grade handheld barcode scanner engineered for mission-critical environments in manufacturing, logistics, transportation, and healthcare. Built as a 2D area imager, it delivers fast, reliable barcode capture across 1D and 2D symbologies with enterprise-class durability and flexible connectivity suited to both modern wireless and legacy wired infrastructures.
Key Features
- 2D Area Imager Technology: Reads 1D and 2D barcodes rapidly from distance, enabling high-throughput scanning on conveyor lines, receiving docks, and mobile inventory operations without manual repositioning.
- IP65 Environmental Sealing: Dust and water ingress protection means the scanner survives washdown environments and dusty manufacturing floors without degradation—reducing device replacement frequency in wet-process facilities.
- 2.5 m (8.2 ft) Drop Rating: Withstands typical warehouse handling impacts and accidental floor drops; handheld devices at this durability level rarely require repair from normal operational abuse.
- Bluetooth 5.0 Connectivity: Modern wireless protocol ensures stable range and coexistence with other 2.4 GHz devices (Wi-Fi, IoT sensors) in multi-device warehouse environments; range and bandwidth adequate for floor-to-base-station communication in medium-sized facilities.
- Wired Connectivity Options: USB, RS-232, and STAR Radio (433/910 MHz) integration allows deployment in facilities with legacy infrastructure or high-interference RF environments where wireless alone is insufficient—critical flexibility for retrofit into existing automation systems.
- 10 Million Trigger Press Durability: Trigger mechanism rated for 10M presses translates to approximately 5–7 years of typical daily use before mechanical wear; reduces unplanned device failures and associated downtime.
- Compact Ergonomic Design: At 440 g (0.97 lb) and 71 × 203 × 107 mm, the form factor enables all-day comfort and one-handed operation, reducing operator fatigue in high-volume scanning shifts.
- Datalogic Green Spot Feedback: Built-in visual read confirmation (green light pulse on successful scan) eliminates ambiguity and speeds operator workflow; reduces data-entry errors from missed scans.
- Wide Operating Temperature Range: Operates across demanding industrial temperature extremes; deploy in freezers, heated manufacturing floors, or ambient warehouses without environmental restrictions.
Integration & Deployment Context
The PBT9600-SRRBK20US is positioned for standardization across multi-facility enterprises. Consistent hardware platform across warehouses, manufacturing lines, and logistics hubs means simplified fleet management, centralized spare-parts inventory, and reduced operator retraining when switching between locations. The device's multiple connectivity options support both greenfield deployments (Bluetooth-first wireless networks) and brownfield integrations (legacy serial or radio systems) without requiring infrastructure overhaul.
Organizations running high-throughput sorting, fulfillment, or goods-receipt operations benefit from the scanner's read speed and reliability. Reduced device failures directly translate to fewer workflow interruptions and more predictable scanning performance—quantifiable labor efficiency gains in environments processing thousands of items daily.
Trigger durability and IP65 sealing directly reduce total cost of ownership; typical industrial handheld scanners require replacement every 3–4 years due to trigger wear or environmental damage. The PBT9600-SRRBK20US extends that lifecycle, deferring capital refresh cycles and reducing unplanned procurement overhead.
When to Choose a Different Model
If your environment requires submersion or extreme water exposure (beyond washdown), evaluate higher IP ratings such as IP67. If you need integrated RFID encoding or UHF inventory functionality, the PowerScan 9600 Series is laser/imaging only—consider scanning platforms with RFID modules. For ultra-compact or wearable scanning (wrist-mounted or ring scanners), this handheld form factor may not suit fast-moving warehouse roles requiring both hands free.
Frequently Asked Questions
Q: Is the PBT9600-SRRBK20US suitable for wet-washdown environments?
A: Yes. The IP65 rating protects against water jets and dust; however, IP65 is not full submersion. For complete immersion or high-pressure spray applications, evaluate IP67 or higher alternatives.
Q: Can the PBT9600-SRRBK20US integrate with legacy serial (RS-232) infrastructure?
A: Yes. The scanner supports USB, RS-232, and STAR Radio (433/910 MHz) in addition to Bluetooth 5.0, making it suitable for retrofit into existing wired or radio-based systems without network upgrades.
Q: What is the expected trigger lifespan?
A: The trigger is rated for 10 million presses, approximately 5–7 years of typical daily use depending on scanning volume. This extended durability reduces unplanned maintenance compared to lower-tier scanners.
Q: Is the PBT9600-SRRBK20US compatible with warehouse management systems (WMS)?
A: The scanner outputs barcode data via standard protocols (USB, serial, Bluetooth HID). Compatibility with your WMS depends on the WMS's input interface; confirm your WMS accepts keyboard-emulation or serial data input before deployment.
Q: What is the warranty coverage?
A: Datalogic PowerScan 9600 Series typically includes a 1-year limited hardware warranty. Confirm the specific warranty terms and any extended-coverage options with your authorized distributor.
Q: Can the Bluetooth 5.0 module work alongside Wi-Fi networks in the same facility?
A: Bluetooth 5.0 and Wi-Fi both operate on 2.4 GHz, but Bluetooth 5.0 includes improved coexistence mechanisms. In high-density RF environments, monitor for interference; wired or STAR Radio options are available as fallback.
The Datalogic PBT9600-SRRBK20US represents a solid platform for standardized fleet scanning across distributed warehouse and logistics operations. The device prioritizes durability and multi-protocol flexibility over feature bloat—which is exactly what large-scale operations need. A 10 million trigger rating and IP65 sealing directly reduce replacement frequency and associated procurement overhead. The availability of Bluetooth 5.0, USB, RS-232, and STAR Radio means you can deploy this device into greenfield wireless networks or retrofit it into 10-year-old legacy infrastructure without architectural rework.
Technical Highlights:
- 10M Trigger Durability: Translates to 5–7 years typical daily use before mechanical wear—measurable reduction in device failure rates compared to 3–5 year lifecycles of competing scanners in high-volume environments.
- IP65 Sealing + 2.5m Drop Rating: Standard industrial resilience; survives washdown and normal floor impacts. Not extreme-duty (that would require IP67 and reinforced frame), but sufficient for 99% of warehouse operations.
- Multi-Protocol Connectivity: Bluetooth 5.0 for modern deployments, but USB/RS-232/STAR Radio fallback options mean you're not forced into a wireless-only architecture—critical for facilities with RF interference or legacy PLC integration.
- 440g Weight + Compact Form Factor: All-day operator comfort without fatigue; matters in high-throughput environments where scanning speed and accuracy degrade as operators tire.
Deployment Considerations:
- IP65 is Not Submersion: Washdown-safe, but don't submerge. If your environment requires full dunking or high-pressure spray from multiple angles, you need IP67—verify before purchase.
- Bluetooth Coexistence: 2.4 GHz band is crowded in modern facilities. In dense RF environments, monitor for interference and have wired fallback ready. STAR Radio (433/910 MHz) is a good alternative if Wi-Fi and IoT devices saturate 2.4 GHz.
- WMS Integration Validation: The scanner outputs standard barcode data (HID keyboard, serial, or proprietary radio frames). Before large-scale rollout, test integration with your specific WMS to confirm data format and input protocol match.
The PBT9600-SRRBK20US is well-suited for mid-to-large enterprises standardizing on a single scanner platform across multiple warehouses or distribution centers. The durability and connectivity flexibility minimize operational friction; the modest price point and proven reliability make it a low-risk choice for environments processing high daily scan volumes. Avoid if you need RFID, advanced data-processing analytics, or ultra-rugged (IP67+) submersion capability.
