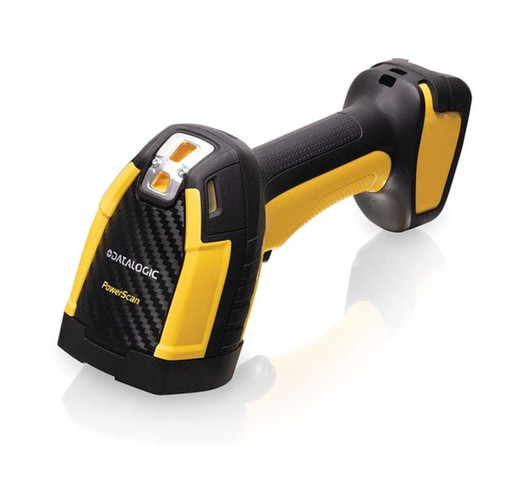

Datalogic PBT9600-SRRB 2D Industrial Barcode Scanner
The Datalogic PBT9600-SRRB is a field-hardened handheld 2D area imager designed for manufacturing floors, distribution centers, hospitals, and transportation yards where durability and read reliability directly impact operational uptime. This is a mature platform that prioritizes practical ruggedness and total cost of ownership over feature proliferation.
Core Capabilities
The PBT9600-SRRB captures both 1D linear and 2D matrix barcodes using a solid-state area imager—no moving mirrors or lasers. This architecture eliminates mechanical wear and reduces maintenance overhead compared to laser scanner alternatives. The device supports multiple symbologies (Code 128, QR codes, DataMatrix, and others) across a selectable optical configuration, meaning you can tune the scanner for either close-range dense barcodes or extended-distance reads without hardware substitution.
Environmental & Mechanical Durability
- IP65 sealed construction protects against dust ingress and direct water spray—deploy it in dock areas, outdoor yards, and wet processing environments without sealed enclosures or additional weatherproofing.
- 2.5 m (8.2 ft) drop resistance meets the physical abuse typical of high-turnover warehouse and manufacturing settings where devices are dropped onto concrete or metal surfaces multiple times per shift. Most consumer handheld devices fail catastrophically at 1.5 m; this rating provides a safety margin.
- 10 million trigger presses durability translates to approximately 5–7 years of continuous shift-based use before mechanical wear becomes noticeable. This metric is critical for fleet TCO planning—you're not replacing scanners every 18 months.
- Lightweight 440 g (0.97 lb) form factor reduces operator fatigue during all-shift handheld scanning in picking, receiving, and asset-tracking workflows.
Connectivity & Integration
The PBT9600-SRRB ships with flexible connectivity: Bluetooth 5.0 for modern wireless deployments, USB and RS-232 wired interfaces for legacy system integration, and an optional STAR 433/910 MHz radio module for facilities where standard Bluetooth encounters interference or requires extended range. This multi-interface strategy means you're not locked into a single transport layer—migration from wired to wireless or radio-based systems doesn't require hardware replacement.
Inductive charging is supported on compatible dock systems, eliminating repeated connector insertion wear and reducing charging infrastructure complexity across large scanner fleets.
User Feedback & Operational Reliability
The Datalogic Green Spot good-read indicator provides instant visual confirmation of successful barcode capture, reducing the need for secondary scanning or manual verification steps. In high-volume environments (receiving docks, order fulfillment), this feedback loop measurably improves throughput and accuracy.
The scanner operates across a wide industrial temperature range, supporting deployment from climate-controlled warehouses to unheated outdoor staging areas without performance degradation.
When to Choose a Different Model
If your environment requires submersion in water or liquid (IP67+), or if you need integrated wireless range exceeding standard Bluetooth (e.g., factory floors with significant RF interference), consider higher-tier variants in the Datalogic industrial scanner family with built-in STAR radio or enhanced sealing. For ultra-high-volume capture where scan speed is the limiting factor (high-speed sortation lines), evaluate 1D laser alternatives that prioritize read velocity over barcode type flexibility.
Frequently Asked Questions
Q: Does the PBT9600-SRRB support both 1D and 2D barcodes?
A: Yes. The 2D area imager technology reads Code 128, QR codes, DataMatrix, and other common symbologies. You do not need separate hardware for linear versus matrix barcodes.
Q: What is the warranty period?
A: The PBT9600-SRRB includes a 1-Year Limited Warranty covering hardware defects.
Q: Can I use inductive charging with the PBT9600-SRRB?
A: Inductive charging is supported on compatible dock models, reducing connector wear and streamlining fleet charging infrastructure.
Q: How does the 2.5 m drop rating compare to other industrial scanners?
A: The 2.5 m (8.2 ft) drop tolerance exceeds many mid-range industrial competitors and reflects real-world dock and warehouse abuse. Standard consumer devices typically survive drops of 1.5 m or less.
Q: What connectivity options are available?
A: The scanner supports Bluetooth 5.0, USB, RS-232, and an optional STAR 433/910 MHz radio module for extended range or interference mitigation.
Q: How long before trigger replacement becomes necessary?
A: The 10 million trigger press rating supports 5–7 years of typical shift-based use, making it a key metric for fleet replacement planning and spare parts budgeting.
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The PBT9600-SRRB represents a mature, battle-tested platform that balances ruggedness with reasonable cost structure. The 2D area imager eliminates mechanical moving parts entirely—no mirrors to misalign, no laser diodes to fail—which directly lowers maintenance overhead and extends mean-time-between-repairs compared to laser-based alternatives. If you're managing a large scanner fleet across multiple warehouses or manufacturing sites, this predictability is worth real money.
Technical Highlights:
- 2D area imager with selectable optics: Standard, High-Performance, and Document modes allow tuning for specific barcode density and read distance without hardware substitution—a practical advantage when your capture requirements shift between receiving (varied density, distance) and quality inspection (consistent, close-range).
- IP65 + 2.5 m drop rating: This combination positions the scanner in the upper tier of mid-range industrial durability. Dock and outdoor environments no longer require sealed enclosures or protective cases, reducing per-unit overhead and simplifying deployment logistics.
- 10 million trigger durability: At 5–7 years of expected operational life, this translates to a spare parts strategy that doesn't require frequent trigger cartridge rotation—meaningful when you're supporting 50+ devices across a distribution network.
Deployment Considerations:
- Bluetooth 5.0 is modern and works well in most indoor/covered dock environments, but RF-dense facilities (multipath interference from metal racking, adjacent wireless systems) may experience read dropouts. Test in your actual environment before full fleet deployment, or plan for the optional STAR radio module if interference is a known risk.
- The weight (440 g) is reasonable for all-shift handheld use, but if operators are performing high-frequency rapid scanning (100+ scans per minute for 8+ hours), ergonomic strain can still accumulate—consider wrist rests or periodic hand-off to a second device.
The PBT9600-SRRB is a strong fit for mid-to-large distribution centers, manufacturing receiving/shipping, hospital asset tracking, and transportation yards where you need predictable field performance, minimal maintenance, and standardized spare parts across multiple sites. Not a glamorous platform, but it handles the job reliably without surprises.
