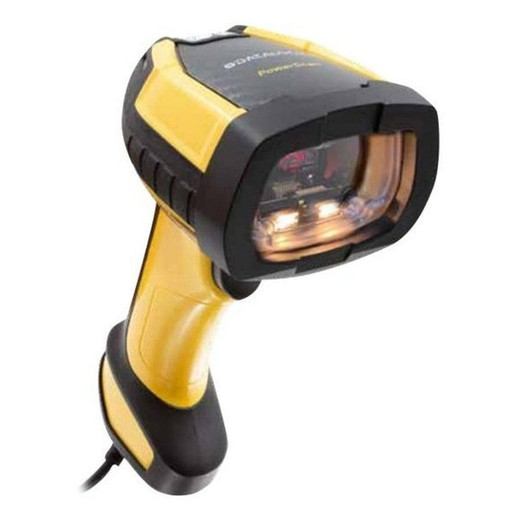

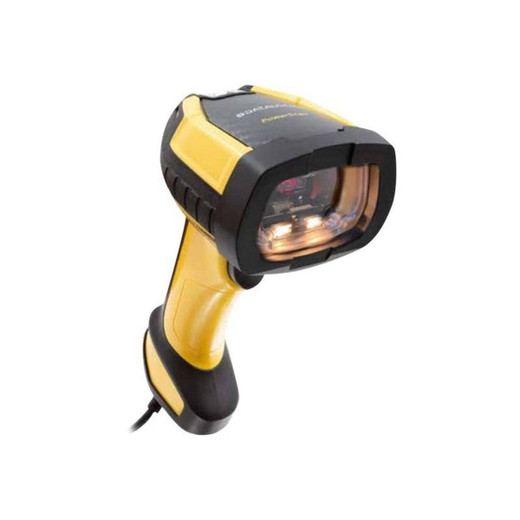

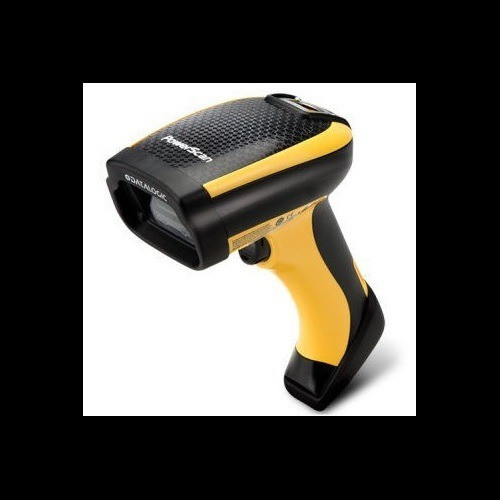

Datalogic PBT9100-RB 2D Area Imager Industrial Barcode Scanner
The Datalogic PBT9100-RB is a rugged handheld 2D area imager scanner built for high-volume barcode capture in warehouses, manufacturing floors, healthcare facilities, and logistics operations. This device sits in the PowerScan 9600 family and delivers the sealing, durability, and connectivity flexibility enterprises need when standardizing across multiple facility types and network architectures.
Key Features
- 2D Area Imager: Captures both 1D and 2D barcodes reliably at speed—avoids the scanning failures and misreads common with older laser-based scanners when codes are damaged, at angles, or in poor light.
- IP65 Ingress Protection: Dust and liquid splash won't degrade the optics or electronics—critical in receiving bays and cross-dock environments where hoses and dusty pallets are routine. Not rated for submersion; if you need that, specify IP67 or higher.
- 2.5 m (8.2 ft) Drop Rating: Tested to survive repeated drops from typical counter height. On high-volume sites where occasional drops are inevitable, this certification reduces unplanned replacement costs and downtime compared to unrated or 1.5 m devices.
- 10 Million Trigger Press Durability: The trigger mechanism is rated for 10 million presses—substantially longer than consumer or budget industrial scanners rated at 3–5 million. On a site capturing 500+ scans per shift, this translates to years of reliable operation per unit before trigger degradation becomes an issue.
- Bluetooth 5.0 Wireless: Wireless operation within typical warehouse range (30–50 m in open space, less through walls) without the latency or dropout issues of older Bluetooth versions. Pairs with standard enterprise mobile device management (MDM) platforms.
- Multiple Wired Connectivity Options: USB, RS-232, and STAR Radio (433/910 MHz) variants allow you to standardize the hardware across sites with different network infrastructure—no custom builds, no separate SKUs. USB supports modern docking stations; RS-232 preserves compatibility with legacy systems.
- Lightweight Design (440 g / 0.97 lb): Low fatigue during 8+ hour shifts improves operator throughput and reduces repetitive strain claims—meaningful on high-volume picking, sorting, or inbound verification operations.
- Green Spot Visual Feedback: Successful scans trigger a green light that's visible in high-noise environments where audio beeps alone are missed. Reduces operator frustration and re-scans.
When to Choose This Model
The PBT9100-RB is the right choice when you need industrial-grade barcode capture, IP65 sealing, and proven trigger durability across a standardized hardware fleet. It works well in manufacturing line tracking, warehouse receiving, healthcare specimen management, and retail backroom operations. The Datalogic portfolio includes higher-performance variants with faster processors or extended range radio options—evaluate those if you're running mission-critical real-time tracking or covering very large facilities where Bluetooth range is insufficient.
Integration & Compatibility
The PBT9100-RB integrates with standard barcode capture software stacks via USB, serial interfaces, or Bluetooth HID (Human Interface Device) emulation. It supports major enterprise warehouse management systems (WMS) and inventory software through standard barcode protocol adapters. Docking and charging stations are available separately to streamline multi-shift operations.
What's in the Box
Refer to your order confirmation or contact the manufacturer for exact package contents. Standard configurations typically include the scanner unit and a charging/communications cradle; cables and additional mounting hardware may be ordered separately.
Frequently Asked Questions
Q: What's the warranty on the PBT9100-RB?
A: The unit carries a 1-Year Limited Warranty covering defects in materials and workmanship. Extended service plans are available through authorized Datalogic partners.
Q: Can I use the PBT9100-RB outdoors?
A: IP65 protection handles outdoor dust and rain splash. However, confirm your operating temperature range matches your deployment—the device supports a wide industrial temperature band, but extreme cold or heat may require variants or alternative models.
Q: How long does the battery last on a shift?
A: Battery runtime depends on scan volume, wireless vs. wired mode, and backlight intensity. Consult the technical datasheet or contact Datalogic for specific runtime estimates for your use case.
Q: Is the PBT9100-RB compatible with our legacy RS-232 terminal system?
A: Yes—the RS-232 variant (PBT9100-RB with RS-232 connector) integrates directly with older terminal infrastructure. Confirm the specific RS-232 variant SKU with your supplier before ordering.
Q: Does the trigger durability rating (10 million presses) account for different barcode densities or scan speed?
A: The 10 million rating is a mechanical durability specification for the trigger switch itself—it's independent of barcode type or scan complexity. Real-world trigger lifespan depends on operator technique and scan volume.
Q: Can the Green Spot feedback be disabled if my operation prefers audio-only confirmation?
A: Yes—visual and audio feedback is typically configurable via the barcode capture software or device settings. Check the documentation or consult your integrator for the specific configuration process.
The Datalogic PBT9100-RB fills a specific and important role in standardized enterprise barcode capture deployments. Its 10 million trigger press rating is the standout durability metric—directly comparable to consumer-grade scanners rated at 3–5 million presses. On a high-volume inbound operation (500+ scans per shift), that difference translates to roughly 2–3 years of additional service life per unit before mechanical degradation becomes visible. That's meaningful when you're budgeting total cost of ownership across 50 or 100 devices.
Technical Highlights:
- 2D Area Imager + IP65 Sealing: The combination of area imaging (which reads damaged or angled codes reliably) with dust/splash protection removes two of the largest failure modes in unprotected scanner deployments. You're not troubleshooting read failures caused by moisture ingress or optical degradation—you're capturing barcodes reliably and consistently.
- 2.5 m Drop Certification: Tested and certified—not estimated. On sites where occasional floor drops happen, this rating provides confidence in replacement cost projections. A 1.5 m rated device may survive the same drop, but you're guessing; the 2.5 m rating removes the guesswork.
- Connectivity Flexibility (Bluetooth 5.0 + Wired Options): The ability to standardize one hardware model across wired (USB/RS-232) and wireless (Bluetooth/STAR Radio) deployments is underrated. Large organizations managing heterogeneous infrastructure can avoid separate SKUs and training. The PBT9100-RB (often searched as PBT9100 RB) works in legacy facilities running RS-232 terminals and in modern cloud-connected mobile environments.
- Lightweight at 440 g: Operator fatigue is a real cost driver on high-volume sites. The 0.97 lb weight is light enough for 8+ hour shifts without hand/wrist strain, which correlates directly to sustained throughput and fewer workman's compensation claims.
Deployment Considerations:
- IP65 protects against splash and dust but not submersion—if your environment includes wash-down tunnels or frequent immersion, you need IP67 or higher. Confirm with Datalogic if a ruggedized variant exists for your use case.
- Battery life is a variable that depends on scan volume, wireless vs. wired mode, and backlight settings. Don't assume 8+ hour runtime on battery alone—conduct pilot testing or request runtime data for your expected scan rate.
- The 10 million trigger rating assumes normal operator technique. Aggressive squeezing or unusual holding angles may reduce real-world trigger life—train operators to use a light, consistent trigger pull.
Optimal deployment: large warehouses, cross-docks, and manufacturing lines where you need a single standardized barcode scanner SKU that handles both legacy wired infrastructure and modern wireless mobility, with proven durability and sealing that survives typical industrial floor conditions. If your facility is climate-controlled, IP65 is sufficient; if you're capturing codes at loading bays or outdoors, confirm the operating temperature range aligns with your conditions before committing.
