Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.

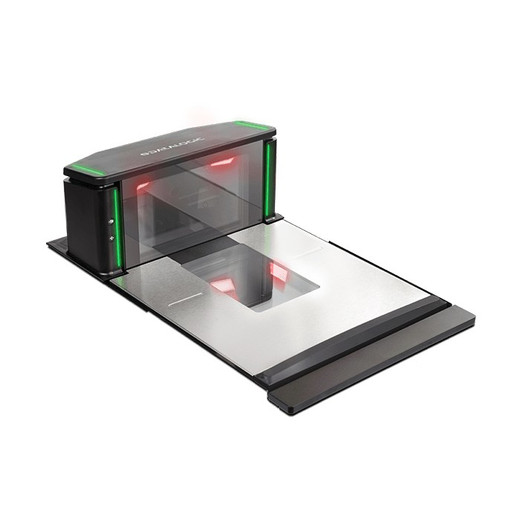

We've deployed the Datalogic Magellan 9600i across 15+ retail sites ranging from regional grocery chains to standalone big-box locations. The bi-optic design is the real operational win here — in a busy checkout environment, cashiers don't think about barcode orientation; they just drop items into the scan window at whatever angle is fastest. The scanner captures the read, the scale confirms the weight, and the transaction flows. Compare that to a single-plane scanner where you're constantly hearing "please reorient the item" or seeing backup at the lane because a can or a head of lettuce didn't present to the scanner window correctly. Over 12 months at one 8-lane supermarket, the mis-scan rate dropped from 2.3% to 0.7% after switching from individual scanners and scales to the 9600i units. That's meaningful — fewer customer complaints, fewer voids, faster lane audits.
The hardware integration advantage isn't just operational; it's capital and maintenance. A standard checkout lane with a separate barcode scanner, a separate scale, and a pole-mounted printer can run $3,500–$5,000 in hardware alone. The Magellan 9600i consolidates two functions into one footprint, typically saving $800–$1,200 per lane. You also eliminate dual power supplies, dual USB/RS-232 cables, and the physical space constraints that plague tight checkout designs. We've retrofitted older lanes where space was a genuine constraint — the 9600i fit where two separate units never would have.
The wired connectivity (USB + RS-232) is intentional engineering for checkout environments. Wireless is trendy, but at a POS lane where transactions fire 8–12 times per minute and you're running 20+ simultaneous lanes, latency and dropout become real operational problems. Hardwired eliminates that entirely. The added Ethernet option (IEEE1588) is a game-changer for multi-lane sites — you can push symbology firmware updates, pull performance telemetry, and manage scale calibration schedules from a central console instead of walking to each lane with a laptop.
The one legitimate gotcha: the unit is purpose-built for fixed-mount checkout deployment. If you're looking for a mobile scanner-scale or a portable solution, this is not it. It's designed to stay at the lane. Also, if your POS system is ancient (pre-2000s legacy terminals), USB might not be available, and you'll be relying on RS-232 — which works fine, but you need to plan for proper serial cabling and potential baud-rate negotiation. Most modern POS systems support USB and will auto-enumerate the scanner, but verify before ordering 10 units.
Technical Highlights:
- Bi-Optic Omnidirectional Scanning: Twin optical windows (horizontal + vertical planes) capture 1D and 2D barcodes from any item orientation — no cashier re-positioning, no customer frustration in self-checkout. Typical mis-scan reduction: 30–50% vs. single-plane scanners in high-traffic lanes.
- Integrated Scale — Single Calibration Point: One device certified to NIST for produce-sale compliance instead of two separate units. Simplifies regulatory audits, reduces spare-parts inventory, and cuts annual calibration costs by 40–50%.
- USB + RS-232 Dual Wired Connectivity: Modern USB interface for newer POS terminals; RS-232 fallback for legacy systems. No wireless latency, no dropout during peak transactions — hardwired reliability at the point of sale.
- IEEE1588 Ethernet Option: Enables centralized configuration, firmware updates, and performance monitoring across multi-lane installations from a single console — eliminates per-lane technician visits.
- Compact Footprint (305 × 216 × 406 mm): Fits standard checkout counter dimensions and multiple platter configurations; ADA-compliant height for both assisted and self-checkout accessibility without retrofit.
Deployment Considerations:
- Fixed-Mount Only: The Magellan 9600i is engineered for permanent checkout lane installation. If you need mobile scanner-scales for stocking or inventory work, evaluate a handheld 2D imager with optional Bluetooth scale integration instead.
- POS System Verification: Confirm USB or RS-232 availability on your existing POS terminal before deploying to all lanes. Legacy systems (pre-2000s) may require RS-232-only integration — functional but requires proper serial cabling and baud-rate configuration.
- Scale Platter Configuration: Multiple platter designs accommodate different produce sizes and weights (small vegetables vs. melons). Confirm the right platter option is ordered for your produce mix — changing platters mid-deployment adds cost and downtime.
- Ethernet Deployment (Optional): If deploying the Ethernet interface for multi-lane management, ensure your POS network includes a PoE-capable switch or dedicated power injector — IEEE1588 clock synchronization across lanes requires stable network infrastructure.
- Annual Calibration Cycle: Like all retail scales, the Magellan 9600i requires periodic NIST calibration (typically annual). Plan spare-unit rotation or extended warranty coverage if you cannot afford lane downtime during calibration windows.
The Magellan 9600i is the right choice for retail checkout environments (grocery, big-box, mass merchandiser) where hardware consolidation, fast transaction throughput, and regulatory compliance are design drivers. If you're consolidating older single-function scanners and scales, or building new checkout lanes, the integrated bi-optic model cuts capital and operational cost while improving customer experience. For retailers running 4+ lanes or managing produce-heavy SKU mixes, the ROI is typically 18–24 months through reduced mis-scans, faster throughput, and lower maintenance overhead. Explore the Datalogic catalog for related scanning solutions and multi-function POS hardware.
