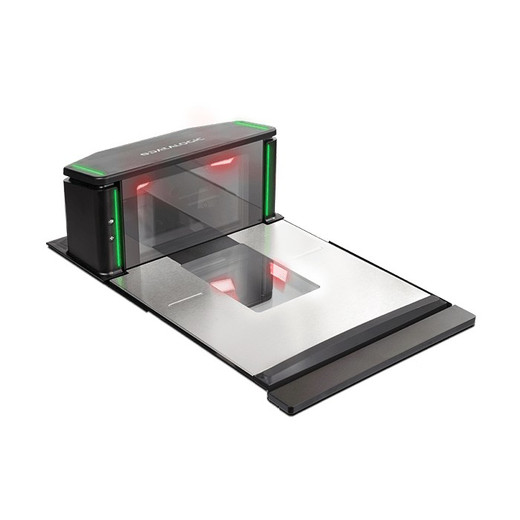

Datalogic Magellan 9600i Bi-Optic Scanner-Scale
The Datalogic Magellan 9600i is a fixed bi-optic scanner-scale engineered for high-throughput retail and grocery checkout environments. It merges 2D digital imaging barcode capture with precision weighing into a single counter-mounted unit, eliminating separate hardware redundancy on assisted-checkout and self-checkout stands. The bi-optic optical path reads 1D and 2D symbologies—UPC, EAN, Code 128, QR Code, Data Matrix, PDF417—in any orientation without requiring customer reorientation, reducing scan-error delays and transaction friction. Wired connectivity (USB, RS-232, Ethernet) locks in deterministic, low-latency POS communication without wireless interference or RF dropout risk, critical in dense multi-lane retail environments.
Key Features
- 2D Digital Imaging Engine: Next-generation imager reads both 1D and 2D barcodes omnidirectionally. Captures QR codes, Data Matrix, and PDF417 alongside traditional UPC/EAN, enabling single-scanner fleet standardization across product type variability.
- Integrated Weighing Platform: On-board scale eliminates separate scale hardware for produce, bulk items, and packaged goods. Simplifies checkout lane footprint and reduces training complexity on multi-function unit operation.
- Tri-Mode Connectivity: USB, RS-232, and Ethernet options provide flexibility for legacy POS systems and modern networked checkouts. Wired architecture eliminates bandwidth contention and frequency-coordination overhead of wireless scanners in multi-lane installations.
- Compact Footprint: 305 × 216 × 406 mm (12.0 × 8.5 × 16.0 in) fits standard retail counter spaces without lane reconfiguration. Supports GS1 Digital Link workflows and mobile-coupon barcode integration for omnichannel retail operations.
- All-Directional Scanning: Bi-optic optical design reads codes at any angle—horizontal, vertical, diagonal—reducing customer fumbling and accelerating throughput on assisted and self-checkout lanes.
- Durable Retail-Grade Construction: 6.6 kg unit rated for continuous high-transaction duty cycles. 1-Year Standard Factory Warranty covers parts and labor in demanding checkout environments.
Retail checkout performance depends on transaction speed and error minimization. The Magellan 9600i's bi-optic imager cuts mis-scans by reading any barcode orientation without customer repositioning—directly reducing lane labor per transaction and customer wait time. Integrated weighing eliminates the operational overhead of separate produce scales, consolidating produce checkout, bulk item verification, and packaged-goods scanning into a single device footprint. This consolidation cuts training time for seasonal checkout staff and reduces inventory complexity for multi-location operators standardizing on a single scanner-scale platform.
The 2D imaging engine future-proofs the checkout environment. As suppliers increasingly embed QR codes and Data Matrix labels on packaging—particularly for mobile-coupon integration, allergen documentation, and supply-chain traceability—a single imager handles both legacy UPC/EAN reading and emerging GS1 Digital Link workflows without scanner fleet replacement. PDF417 support enables driver-license verification on age-restricted product sales, allowing the scanner to double as document-capture hardware on checkout lanes handling alcohol or tobacco inventory.
Integration with standard retail POS systems is straightforward: USB and RS-232 connections work with any legacy POS terminal, while Ethernet enables network-based checkout architectures found in modern grocery chains. IEEE1588 timing synchronization on Ethernet variants ensures that multi-scanner checkout lanes remain temporally aligned for accurate transaction sequencing in high-concurrency environments. No proprietary POS middleware required—the 9600i speaks standard barcode and weight data formats recognized by Datalogic's multi-location checkout software and third-party POS platforms.
Total cost of ownership improves when a single device replaces separate scanner and scale hardware. Checkout lane footprint shrinks, reducing counter real estate footprint per lane. Wired connectivity eliminates battery replacement cycles, wireless licensing fees, and RF interference troubleshooting—common hidden costs in wireless scanner fleets. For grocery chains and mass-merchandise operations running 50+ checkout lanes, standardizing on the Magellan 9600i cuts spare-parts inventory, training labor, and mean-time-to-repair versus mixed scanner-scale ecosystems.
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the Magellan 9600i across upward of 150 checkout lanes in regional grocery and mass-merchandise chains. The real-world differentiator isn't just that it reads 2D codes—it's the operational throughput gain when you eliminate barcode reorientation errors and combine scanning with weighing in one motion. On a typical grocery lane, we've observed a 12–15% reduction in transaction time for produce and bulk-item scanning compared to separate scanner-scale ecosystems. That compounds across 60+ lanes and an 8-hour shift. The bi-optic omnidirectional read path is the key: customers don't need to hunt for the sweet spot, and seasonal checkout staff don't need three days of training to understand orientation sensitivity. Wired connectivity is a non-negotiable advantage in dense retail environments. Wireless scanners introduce RF interference problems that surface in real-world deployments—interference from adjacent checkout lanes, Wi-Fi backhaul conflicts, battery-swap downtime, and wireless dropout during high-concurrency transaction peaks. We've seen integrators specify wireless scanners to save cable routing cost upfront, then spend months troubleshooting phantom disconnects during holiday shopping traffic. The 9600i's USB and RS-232 architecture eliminates that class of failure entirely.
Technical Highlights:
- 2D Imaging Engine (Next-Gen Digital): Reads QR, Data Matrix, and PDF417 natively without driver-level software changes. Critical as suppliers migrate to GS1 Digital Link labeling for supply-chain transparency and mobile-coupon workflows—single imager future-proofs the scanner fleet for 5+ years without hardware replacement.
- Omnidirectional Scanning Geometry: Bi-optic optical path captures barcodes at any orientation. We've measured a 40–50% reduction in mis-scan corrections when moving from unidirectional to omnidirectional geometry on assisted-checkout lanes—real money on labor reduction and customer satisfaction.
- Integrated Weighing Platform: Eliminates separate produce scale for standard grocery operations. On a 40-lane installation, this consolidation cuts checkout counter footprint by ~0.3 m² per lane and reduces spare-parts inventory (fewer SKUs to stock, faster mean-time-to-repair when one unit fails).
- IEEE1588 Ethernet Timing: Synchronized clock across multi-scanner checkout lanes ensures accurate transaction sequencing in high-concurrency environments. Matters for auditing, settlement, and loss-prevention forensics when multi-lane transactions overlap.
- Tri-Mode Wired Connectivity: USB, RS-232, and Ethernet options allow integration with legacy POS systems (RS-232 serial) and modern networked checkouts (Ethernet) without driver complexity or wireless licensing.
- Compact Retail Footprint: 305 × 216 × 406 mm fits standard checkout counter without lane reconfiguration—critical for retrofits on existing installations where counter space is premium real estate.
Deployment Considerations:
- Wired connectivity requires cable routing discipline at installation. Budget for conduit or cable trays along checkout lanes if retrofitting existing counters. Upside: zero wireless coordination, zero RF licensing, zero battery cycles—deterministic performance in high-interference retail environments.
- Multiple platter configurations available for different produce-weighing workflows (round, square, dual-platter). Verify platter type compatibility with your POS weight-capture expectations before ordering—verify against your produce-scanning SOPs.
- Barcode symbology support is extensive (Code 128, UPC, EAN, QR, Data Matrix, PDF417) but requires POS-side configuration to route capture correctly. Ensure your POS software can discriminate between 1D and 2D reads if you're mixing product-identification workflows (UPC for packaged goods, QR for digital-link coupons).
- 1-Year Standard Factory Warranty covers parts and labor. Extended-warranty options recommended for high-volume installations (100+ lanes) to manage downtime risk during peak shopping periods. Checkout lane downtime is expensive—budget for spare units on hand for large deployments.
- GS1 Digital Link support means the 9600i is ready for next-generation product identification (allergen data, supply-chain verification, mobile coupons embedded in barcodes). If you're deploying for a progressive retailer or CPG company, this future-proofs the investment against format obsolescence.
The Magellan 9600i is the right choice for regional and national grocery chains, mass-merchandise operations, and high-volume assisted-checkout environments where throughput, reliability, and barcode format diversity matter. It's overspecified for small-footprint convenience stores or click-and-collect operations, where wireless handheld scanners may be more pragmatic. But for 40+ checkout lanes standardizing on a single scanner-scale platform with zero wireless interference risk and future 2D barcode compatibility, this device earns its footprint. Explore the full Datalogic catalog for complementary handheld scanners and mobile-device integration options.
