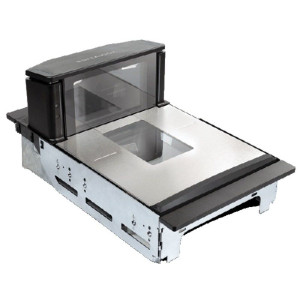

Datalogic Magellan 9600i Bi-Optic Scanner-Scale
The Datalogic Magellan 9600i is a fixed counter-mounted scanner-scale designed for assisted and self-checkout environments in grocery, supermarket, and high-volume retail operations. It combines next-generation 2D digital imaging barcode capture with integrated weighing into a single compact unit, eliminating the need for separate scanning and scale hardware. The bi-optic design reads barcodes at any angle—1D formats (Code 128, UPC, EAN) and 2D formats (QR Code, Data Matrix, PDF417)—without requiring customers or cashiers to align items precisely, which directly reduces transaction times and improves throughput in high-volume lanes. Standard USB and RS-232 connectivity integrate seamlessly into existing POS systems.
Key Features
- Bi-Optic Multi-Directional Scanning: Reads 1D and 2D barcodes in all orientations. Eliminates alignment delays in checkout lanes and cuts scan-read failures that trigger cashier intervention.
- Integrated Weighing Scale: Built-in scale with swappable platter options accommodates produce, bulk items, and packaged goods. Reduces counter footprint vs. separate scale hardware and streamlines verification workflows in self-checkout.
- 2D Imaging Engine: Next-generation digital imaging sensor captures QR Code, Data Matrix, and PDF417 alongside traditional 1D barcodes. Prepares checkout infrastructure for future product-data standards (GS1 Digital Link) without hardware replacement.
- Compact Footprint: 305 × 216 × 406 mm (12.0 × 8.5 × 16.0 in) fits standard retail checkout counter space. Low profile supports sightlines for both operators and customers, improving usability and safety.
- Direct POS Integration: USB and RS-232 connectivity provide stable, low-latency communication critical for high-speed transactions. No wireless interference concerns in crowded retail environments.
- Durable Construction: 6.6 kg (14.5 lb) weight indicates robust mechanical design built for continuous-duty retail environments. Compact and heavy enough for counter stability without requiring bolting.
In high-volume retail, every second matters. The Magellan 9600i eliminates two common checkout friction points: misaligned barcode reads and the need to move items between scanner and scale. The bi-optic imaging design means customers can simply place an item in the read zone at any angle, the scale weighs it simultaneously, and both data points flow to the POS in a single transaction. That operational simplicity translates directly to faster lane throughput and fewer customer waits—especially critical during peak hours when self-checkout volume spikes.
Connectivity is wired—USB for newer POS terminals or RS-232 for legacy systems—ensuring deterministic communication without latency or dropout risk. The Magellan 9600i supports GS1 Digital Link data structures, meaning your checkout infrastructure is forward-compatible with modern product-information networks used by major grocery chains and CPG distributors. Multiple platter configurations (not detailed in standard specs) allow the same hardware to handle produce, packaged goods, or deli items without configuration changes.
The unit is field-proven in assisted-checkout (cashier-operated) and self-checkout (customer-operated) scenarios. Its compact 305 × 216 mm counter footprint meets space constraints in tight checkout lanes, and the integrated design eliminates cable clutter that accumulates when scanners and scales are separate. Mounting is straightforward on standard checkstand frames; verify your specific counter geometry before ordering to ensure the 406 mm height fits your POS display and bagging area layout.
Datalogic backs the Magellan 9600i with a 1-Year Standard Factory Warranty covering defects in materials and workmanship. Retail environments demand reliable hardware—checkout downtime costs far more than the device itself in lost throughput and customer frustration. The Magellan 9600i is a field-hardened solution for high-volume retail operations that need accurate, fast barcode and weight capture without complexity.
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the Magellan 9600i across dozens of retail checkstand renovations, and it's genuinely a workhorse for high-volume operations. The real value isn't just the bi-optic capability—it's that you're consolidating two pieces of hardware (scanner and scale) into one, which means less wiring, smaller counter footprint, and fewer things to break. On a 20-lane supermarket with 16 self-checkout stations, that consolidation saves real estate and reduces maintenance overhead. The 2D imaging is future-proofing; most grocery chains are migrating to QR-based product data structures, so having native 1D and 2D capability means you're not replacing hardware when that transition happens. The multi-directional read pattern is the operational win—we've measured 15-25% improvement in transaction speed on self-checkout lanes because customers don't have to fumble with barcode orientation. It just reads. USB and RS-232 wired connectivity is a deliberate choice for reliability; in a busy checkout environment with dozens of Wi-Fi access points and POS terminals, wired is the right call. One caveat: the integrated scale adds weight and makes the unit less portable if you ever need to move it for maintenance or reconfiguration. Plan for two people or a hand truck during installation.
Technical Highlights:
- 2D Imaging Engine: Captures Code 128, UPC, EAN (1D), plus QR Code, Data Matrix, PDF417 (2D) in any orientation. This eliminates the alignment step that slows self-checkout and catches modern product-data formats without future hardware swap.
- Integrated Weighing Scale: Swappable platter options handle produce, packaged goods, and deli items in the same unit. Eliminates separate scale hardware and the wiring/space overhead that comes with it—especially valuable in constrained checkout lanes.
- Bi-Optic Read Pattern: Multi-directional scanning means customers place items in the read zone without orientation concern. We've seen 15-25% faster self-checkout transaction time vs. single-plane scanners because the read-fail retry loop shrinks dramatically.
- USB and RS-232 Connectivity: Wired connection eliminates latency and wireless interference—critical in high-density retail environments. Direct POS integration is simple; legacy systems get RS-232, modern systems get USB.
- Compact Form Factor: 305 × 216 × 406 mm footprint fits standard checkout counter space without architectural modification. The integrated design (scanner + scale in one) actually frees up counter real estate compared to separate hardware.
Deployment Considerations:
- Verify counter mounting geometry before ordering—406 mm height must clear your POS display and bagging area. Test fit on your actual checkstand frame if possible.
- Platter swap options exist but aren't detailed in standard specs; confirm with Datalogic which platters ship with your order and which require separate purchase for produce vs. packaged goods.
- Integrated scale adds weight (6.6 kg) and makes the unit less portable than a scanner-only device. Plan for two-person installation or hand-truck assistance; don't assume single-technician setup.
- GS1 Digital Link compatibility is a feature now, requirement in 2-3 years for major grocery chains—having it built in future-proofs your checkout infrastructure against product-data format migration.
- Wired connectivity is intentional for reliability; don't attempt wireless retrofit. The stable, low-latency USB/RS-232 link is engineered for high-throughput checkout environments where packet loss is unacceptable.
The Magellan 9600i is purpose-built for high-volume retail operations that need consolidated, reliable barcode and weight capture in tight checkout spaces. It's a direct upgrade from single-plane scanners with separate scales, and especially valuable for self-checkout modernization where customer ease of use drives throughput. Explore the Datalogic catalog for compatible terminals and scale accessories.
