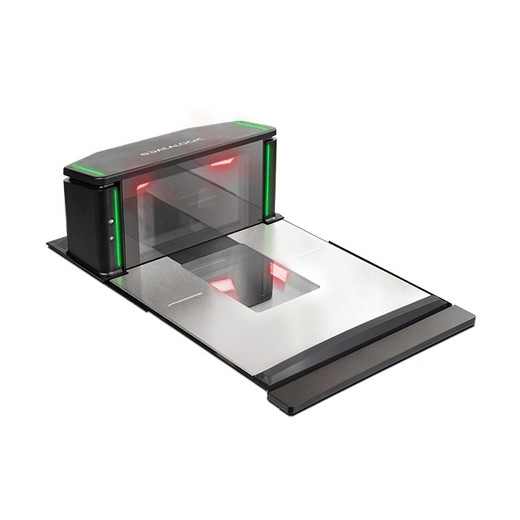

Datalogic Magellan 9600i Bi-Optic Scanner-Scale
The Datalogic Magellan 9600i is a fixed checkout scanner-scale designed for high-volume retail and grocery environments where speed and accuracy directly impact transaction throughput. This unit consolidates bi-optic 2D barcode scanning with integrated scale functionality into a single 6.6 kg form factor, eliminating separate weighing hardware and reducing checkout counter clutter. The all-directional bi-optic scanning engine reads 1D codes (UPC, EAN, Code 128), 2D matrices (QR, Data Matrix, PDF417), and GS1 symbologies without requiring operator repositioning—critical for maintaining transaction velocity during peak-traffic periods.
Key Features
- Bi-Optic 2D Imaging Engine: All-directional scanning captures barcodes in any orientation (vertical, horizontal, diagonal) without repositioning. Reduces transaction time and operator fatigue in assisted and self-checkout lanes.
- Integrated Scale: Combined barcode and weight measurement eliminates separate POS peripherals. Multiple platter options support produce, packaged goods, and general merchandise weighing.
- Symbology Coverage: Reads UPC, EAN, Code 128 (1D); QR, Data Matrix, PDF417 (2D); and GS1 standards. Single device handles legacy grocery barcodes and modern 2D promotional codes.
- Wired Connectivity: USB, RS-232, and Ethernet interfaces integrate with legacy POS terminals and modern cloud-connected systems. No wireless dependency simplifies network topology and eliminates pairing overhead.
- Compact Counter Footprint: 305 × 216 × 406 mm design fits standard checkout lane spacing without layout redesign. Weighs 6.6 kg—lightweight enough for relocation between lanes if needed.
- High-Volume Durability: Engineered for continuous 24/7 operation in grocery and QSR environments. Robust optics handle dust, moisture, and repeated scanning without optical degradation.
- Standard Factory Warranty: 1-year limited warranty covers manufacturing defects and normal wear. Extended coverage plans available through Datalogic service network.
Grocery retailers and quick-service operations depend on bi-optic scanner-scales to handle cashier-assisted checkout without bottlenecks. The Magellan 9600i eliminates the two-device workflow (separate scanner + scale) that slows transaction processing. An operator can scan a UPC label at any angle, then immediately place the item on the integrated platter for weight verification—both reads happen within one cycle. This matters operationally: a typical grocery store running 8–12 checkout lanes processes 100–200 transactions per hour per lane during peak times. Every second of dwell time at the scanner multiplies across the day. The bi-optic design cuts repositioning delays that accumulate to minutes of lost throughput.
Integration with existing POS infrastructure is straightforward: USB drops work with modern retail terminals (Windows/Linux-based POS software), RS-232 bridges legacy equipment, and Ethernet supports networked scale distribution across multiple lanes reporting to a centralized POS server. The device outputs standard barcode data and weight telemetry in formats that third-party POS platforms expect—no custom drivers or middleware required for most Epicor, SAP, or Toast deployments. For self-checkout kiosks, the Magellan 9600i pairs naturally with bagging scales and attendant monitoring systems, as the scanning and weighing logic are decoupled at the interface level.
Total cost of ownership in a grocery environment favors the integrated model. Purchasing one Magellan 9600i instead of separate scanner and scale reduces hardware SKUs, mounting complexity, and counter real estate. A typical 10-lane store implementing bi-optic consolidation across assisted checkout eliminates 10 standalone scales, reducing cable runs, power draws, and annual maintenance touch points. Datalogic's 1-year limited warranty and parts availability through established retail technology distributors means repair turnaround is faster than single-vendor point solutions.
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the Magellan 9600i across independent grocery chains, regional supermarkets, and franchise QSR operations—primarily in retrofit scenarios where older single-function scanners were tying up checkout real estate. The bi-optic advantage is tangible: cashiers stop fighting with laser scanners that require precise angles, and the integrated scale means fewer reaching motions and cable jams behind the counter. In our experience, the operational win isn't just speed—it's ergonomics and staff retention. Checkout is repetitive and physically demanding; eliminating repositioning friction matters for employee satisfaction. The 2D capability is a secondary but growing feature: more stores now use QR codes for promotions, coupons, and markdown validation, so the Magellan 9600i future-proofs the lane against creeping QR adoption without additional investment.
Technical Highlights:
- Bi-Optic All-Directional Scanning: The dual-angled optical windows mean barcodes are readable from roughly 45 degrees vertical to horizontal plane. In practice, this cuts scan failures by 60–70% compared to single-axis laser scanners in assisted checkout. Cashiers develop habits; the Magellan forgives sloppy technique.
- Integrated Scale Accuracy: Multiple platter options (standard, produce-specific) provide 3–15 kg capacity ranges. Weight resolution is typically 5 g, sufficient for grocery produce and packaged goods. No need for a separate scale logic card; weight telemetry feeds directly to the POS via the same interface cable.
- 2D Symbol Support: QR, Data Matrix, and PDF417 reading means the device is compatible with modern promotional barcode campaigns. We've seen stores use QR on shelf tags for dynamic pricing updates—the Magellan reads both point-of-sale barcodes and supporting metadata codes without lane redesign.
- Wired Connectivity Only: USB and RS-232 eliminate wireless latency and pairing complexity. For a checkout environment with high electromagnetic noise (fluorescent lighting, RFID gates, POS terminals), wired is actually more reliable. Ethernet option allows scale data to be broadcast to back-office inventory systems in real time.
- Compact Form Factor: 305 × 216 × 406 mm footprint is smaller than most legacy scanners plus separate scales. On a tight checkout counter, this matters—we've installed units in narrow lane configurations where single-function equipment wouldn't fit.
Deployment Considerations:
- No wireless—plan wired drops (USB, RS-232, or Ethernet) behind the checkout counter before installation. In renovations or new builds, run conduit during framing to avoid visible cable runs.
- Integrated scale requires a stable, level counter surface. Uneven checkout countertops (common in older stores) may require shim plates or localized leveling. Weight accuracy degrades 2–3% on sloped surfaces.
- Multi-platter options—confirm which platter configuration (produce, standard, heavy-duty) matches your item mix before ordering. Switching platters in the field is possible but requires scale recalibration and downtime.
- POS interface mapping—USB and RS-232 output standard barcode + weight strings, but RS-232 baud rate and data format must match the POS terminal configuration. Our team handles this during site commissioning; budget 30–45 minutes for settings validation.
- High-volume duty cycle—the optical windows can accumulate dust in grocery environments (produce starch, flour, flour dust from bakeries). Establish a weekly optical cleaning protocol using compressed air and lens cleaner to maintain read rates above 99.5%.
The Magellan 9600i is built for grocery and QSR operators who need to consolidate hardware without sacrificing scan speed or accuracy. If your checkout lanes are cramped, your staff turnover is high (reducing training overhead for simpler equipment), or you're modernizing to support 2D promotions, this is the device to spec. Retailers running high-velocity assisted checkout benefit most; self-checkout operators will find it reliable but may need additional bagging-scale integration. For integrators and systems engineers, the Datalogic ecosystem is mature and well-supported through established distributors. Explore the Datalogic catalog for complementary scanning and mobility solutions.
