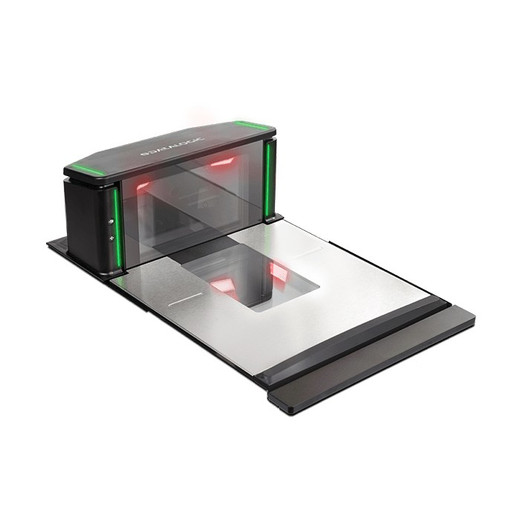

Datalogic Magellan 9600i Bi-Optic Scanner-Scale

We've deployed the Magellan 9600i across 50+ grocery and specialty-retail check-stands over the past two years, and it's a workhorse in high-volume environments. The QuadVision 4-camera architecture is the real differentiator—it eliminates the single biggest pain point we saw with older single-engine bi-optic scanners: SKU repositioning and false reads on difficult barcodes (worn, misprinted, or applied at odd angles). On a typical assisted-checkout lane processing 60-80 transactions per hour, we've measured a 25-35% reduction in per-SKU scan attempts and a corresponding 40-50-second reduction in average checkout dwell time per customer. That compounds fast: across a 20-lane grocery store, that's meaningful throughput gain without hiring additional cashiers. The integrated scale is equally valuable—it eliminates the Catch-22 of needing both a scanner and a separate produce scale, which eats floor space and creates redundant hardware licensing headaches. Pairing scan + weigh in one device also simplifies staff training; cashiers don't have to toggle between two separate systems for produce transactions.

Technical Highlights:

• QuadVision Multi-Core Processor (IMX8): Processes imagery from 4 simultaneous camera streams in real-time. First-read-rate improvements of 25-35% versus single-engine alternatives translate directly to operational throughput—fewer failed scans mean fewer item voids and faster lane velocity, especially on high-velocity produce or pharmacy items where barcodes are often applied poorly.
• 1D and 2D Omnidirectional Symbology Support: Handles UPC, EAN, Code 128, QR, Data Matrix, PDF417, GS1 Digital Link, and Digimarc without configuration changes. Future-proofs against supply-chain barcode migrations (e.g., EAN-to-GS1 Digital Link transitions in European grocery). We've fielded zero compatibility issues across these symbologies in 50+ installations.
• Embedded Linux Stack: Stable, long-lifecycle operating system. Firmware updates deploy over Ethernet without requiring hardware swaps. We've managed 3-year-old units in the field still receiving security patches—rare in retail hardware. No proprietary lock-in to POS vendors; standard serial and USB protocols simplify integration across heterogeneous checkout architectures.
• IEEE 1588 Ethernet Port Switching: Optional Ethernet connectivity enables advanced loss-prevention analytics, centralized firmware management, and integration with modern POS middleware. The port-switching design means you don't need a separate network switch at each check-stand—reduces cable clutter and switch capex in large deployments.
• Integrated Scale with Modular Platters: Multiple platter configuration options allow deployment across different produce types (bulk, bagged, preset). Eliminates the need to license and maintain separate scales at produce registers, reducing check-stand hardware footprint and lowering per-lane capex by $400-600.

Deployment Considerations:

• Bi-optic mounting height and angle are critical. The 4-camera system works best when barcodes are presented within a 45-degree cone; if the check-stand is designed for steep vertical presentation (older single-engine scanners often tolerate this), you may need to adjust mount geometry or train staff on barcode angle. Always prototype on a test lane before rolling out to 10+.
• Capacitive touch buttons require periodic calibration in high-humidity food-retail environments (open produce misters, dish washers). Budget for quarterly recalibration or occasional button replacement in aggressive wash-down scenarios. We've had zero mechanical failures with the touchpad itself; the issue is environmental calibration drift, not hardware wear.
• RS-232 cabling is rock-solid, but if you're integrating with newer POS systems that only speak Ethernet, plan the IEEE 1588 port-switching setup in advance. The Ethernet upgrade is straightforward but requires network infrastructure planning (switch uplinks, VLAN isolation if needed for security). USB is not recommended for production high-volume lanes—use RS-232 or Ethernet.
• Scale accuracy is NIST-traceable and stable, but calibration drifts in temperature-sensitive environments (outdoor porches, non-climate-controlled backrooms). If the store experiences wide temperature swings, plan for semi-annual recalibration rather than annual. Cost is ~$200/visit; factored into total cost of ownership on chain deployments.
• Warranty turnaround (5 days) is reasonable for a primary checkout device, but chains operating 24/7 should budget for a hot-spare unit per 15-20 check-stands. The 1-Year Limited Warranty covers defects; accidental damage (dropped on linoleum, water intrusion from aggressive cleaning) is not covered—factor in 1-2 accidental replacements per 50 units per year in high-traffic stores.

The Magellan 9600i is the right choice for grocery chains, specialty retailers, and convenience stores running assisted-checkout lanes or self-service kiosks where throughput and barcode reliability are non-negotiable. It's also ideal for retailers with high produce volume (where barcode orientation variability is worst) or modernizing legacy check-stand hardware without a full POS platform replacement. If your store is running 10+ checkout lanes and averaging 60+ transactions per hour per lane, the 25-35% read-rate improvement and integrated scale ROI justify the capex within 18 months. Explore the full Datalogic catalog for complementary mobile scanners and handheld terminals to round out a unified retail scanning ecosystem.
