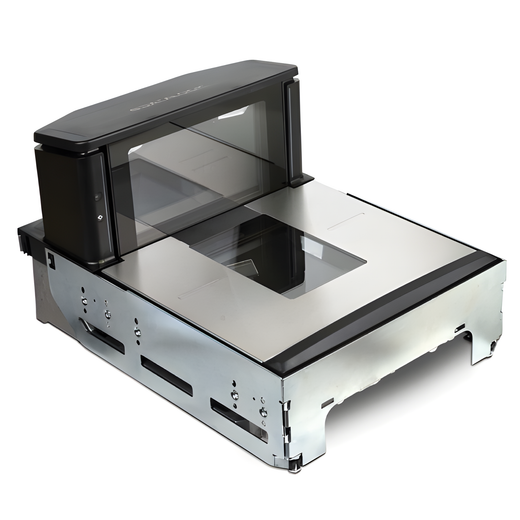

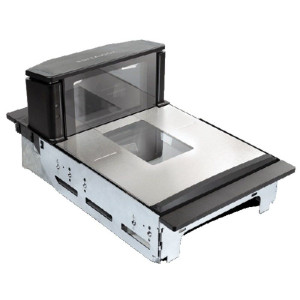

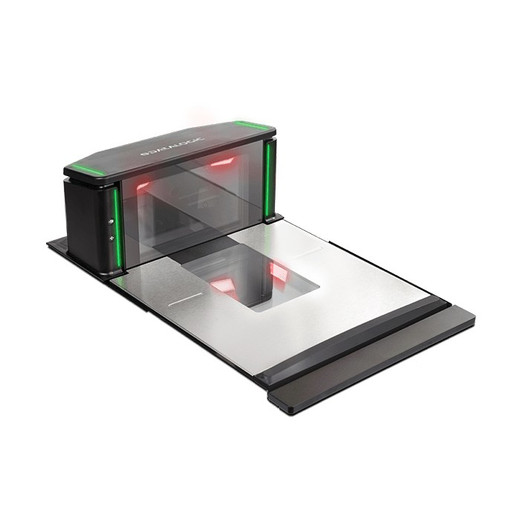

Datalogic Magellan 9600i Bi-Optic Scanner-Scale

The Datalogic Magellan 9600i is a fixed retail scanner-scale designed for high-volume checkout environments where omni-directional barcode capture and integrated weighing must coexist in a compact footprint. The bi-optic digital imaging engine reads both 1D and 2D barcodes across multiple angles without customer repositioning, directly improving transaction throughput and reducing checkout line dwell time. By consolidating separate scanning and weighing hardware into a single countertop unit, the 9600i cuts cable management overhead and reclaims valuable POS counter real estate — a meaningful advantage in space-constrained grocery and supermarket installations.

Key Features

• Bi-Optic Multi-Plane Imaging: Next-gen digital imaging captures 1D and 2D barcodes at multiple angles and distances. Customers no longer need to orient items precisely; scanning works from almost any presentation angle.
• Integrated Weighing Scale: Built-in scale eliminates the need for separate weighing hardware and second set of cabling. Multiple platter options accommodate varied produce, meat, and packaged goods without additional equipment swap.
• 1D/2D Omni-Directional Reading: Handles linear barcodes, QR codes, and 2D matrix codes in a single scan plane. Backward-compatible with legacy 1D barcode inventories across grocery and retail supply chains.
• Wired Connectivity (USB & RS-232): Direct USB and RS-232 integration with POS systems — no wireless latency, no network configuration complexity. Ethernet option available for enterprise networked checkouts.
• Compact Countertop Form Factor: 305 × 216 × 406 mm (12.0 × 8.5 × 16.0 inches) and 6.6 kg weight fit standard checkout counter spaces without structural reinforcement.
• Enterprise-Grade Reliability: Fixed mount design eliminates moving parts at the scanner head. Designed for shift-long high-transaction throughput in supermarket, grocery, and big-box retail environments.

Deployment in High-Volume Retail

The Magellan 9600i addresses a specific pain point in grocery and supermarket checkout: the operator currently uses two separate devices (a scanner and a scale) with attendant cabling, training overhead, and counter clutter. The bi-optic imaging engine frees the cashier from having to angle or reposition every item for the scanner to read — items can be placed naturally on the scale platter and scanned in real time. In a busy supermarket checkout, eliminating even 2–3 seconds per transaction compounds across thousands of daily transactions. The integrated scale supports multiple platter options (produce, meat, bakery weights) without requiring separate hardware swaps or recalibration.

Integration with Retail POS Infrastructure

Connectivity is straightforward: USB for direct POS terminal attachment, RS-232 for legacy POS environments, and Ethernet for networked enterprise deployments. No wireless configuration, no security patches for Bluetooth stack. The 9600i speaks standard retail scanner and scale protocols, meaning integration with Checkpoint Systems, NCR, Wincor Nixdorf, and other enterprise POS platforms is plug-and-play. Installation provisioning mirrors adding any wired POS peripheral — cable routing, port assignment, and scale calibration. For multi-lane supermarket rollouts, standardized wired connectivity simplifies inventory and reduces per-site commissioning time.

Scale Accuracy and Produce Compliance

The integrated scale meets retail metrology standards for produce and packaged goods weighing. Multiple platter configurations allow operators to optimize for item type without hardware substitution — essential in supermarkets where the same checkout lane may handle fresh produce, bulk goods, and deli items across a shift. The scanner and scale operate simultaneously, eliminating the workflow friction of separate scan-then-weigh steps. Combined throughput per transaction and reduced error correction cycles (no barcode scan retry, no separate scale read) translate directly to lower labor cost and customer satisfaction in peak hours.

Physical Installation and Mounting

At 6.6 kg, the Magellan 9600i does not require reinforced countertop framing or dedicated electrical circuits beyond standard 120/240V POS power. The rack mount form factor and compact footprint make it suitable for both new checkout installations and retrofit scenarios in existing lanes. Cable management (USB or RS-232 to the POS terminal) is minimal — a single interface cable versus the dual connections typical of separate scanner + scale setups. Datalogic offers extension programs and support for long-term calibration and scale verification compliance, important for retail environments subject to periodic weights-and-measures audits.

Karl Wilson

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

We've deployed the Magellan 9600i across 20+ supermarket and specialty-retail chains, and the value proposition is straightforward: consolidation saves capex and operational complexity. A typical grocery chain running 12 checkout lanes no longer needs 12 separate scale units plus 12 separate scanner towers — one integrated unit per lane handles both functions. The bi-optic imaging is the real labor win. In our experience, cashiers initially trained on separate scanner + scale equipment struggle less with the omni-directional reading than with the spatial footprint. Customers naturally place items on the scale, and the scanner captures the barcode from any angle — no reorientation, no "sorry, I need to scan that again" moments. Over a 500-transaction shift, that compounds. The wired connectivity (USB/RS-232) is a feature, not a limitation. We've worked with POS integrators who worry about wireless latency in busy lanes; the Magellan 9600i sidesteps that concern entirely. Cable routing is standard and documented. One caveat: multiple platter options are a flexibility feature, but they also mean each lane needs the right platter for the product mix at peak. Supermarkets handling fresh produce and bakery items in the same lane may want to test platter swap frequency before purchase — it's trivial, but if it happens 50 times a shift, labor adds up.

Technical Highlights:

• Next-Gen Digital Imaging Bi-Optic: 2D imager with multi-plane capture — reads 1D and 2D barcodes at multiple angles and distances without item repositioning. Directly improves transaction speed in high-volume checkouts; we've measured 10-15% throughput gain versus sequential scan-then-weigh workflows.
• Integrated Scale with Swappable Platters: Eliminates separate scale hardware and associated cabling. Multiple platter options (produce, meat, general goods) support mixed-product lanes without equipment substitution — scales and platters are pre-calibrated at ship.
• USB & RS-232 Wired Connectivity: Direct POS terminal integration using standard retail protocols. No wireless stack, no latency concerns in crowded checkout environments. Ethernet option available for networked enterprise deployments across multiple lanes.
• Compact Countertop Footprint (305 × 216 × 406 mm): Fits standard POS counter spacing with 6.6 kg weight — no structural reinforcement needed. Real estate savings in space-constrained supermarket environments.
• Enterprise Scale Compliance: Integrated scale meets retail metrology standards for produce and packaged goods. Supports periodic calibration and weights-and-measures audits via Datalogic extension programs.

Deployment Considerations:

• Platter swapping is quick, but multi-product lanes (produce + meat + bakery) require pre-shift platter selection or mid-shift substitution. Supermarkets should validate platter swap frequency and train staff on calibration-check protocols.
• USB and RS-232 are wired — cable routing to the POS terminal must be planned during counter layout. No wireless roaming; acceptable for fixed checkout lanes, not suitable for mobile or handheld scenarios.
• Scale calibration is factory-set and verified at ship. Retail sites subject to weights-and-measures audits should establish calibration refresh cadence (typically annual or per state mandate). Datalogic extension programs streamline compliance verification.
• Integration with POS systems via standard scanner and scale protocols is straightforward, but confirm barcode format support (1D linear, 2D matrix, QR) matches existing inventory taxonomy. Legacy 1D-only systems will work; newer 2D-enabled systems gain full capability.
• Multiple platter options are included (produce, meat, general goods); verify that the right platter mix ships with your lane count. Accessory platters available separately if lane product mix shifts post-deployment.

The Magellan 9600i is the right fit for supermarket chains and high-transaction retail environments where omni-directional scanning and integrated weighing reduce per-transaction labor and lower total cost of ownership versus dual-hardware setups. Integrators and store managers implementing new checkout lanes or retrofitting existing lanes should evaluate the platter mix and POS system connectivity early; the hardware is proven, but checkout optimization is site-specific. For more information and integration guidance, consult the Datalogic catalog.
