Product images are provided for reference and may not represent the exact model, configuration, or included components.

Overview

SKU: 96211212000-003520
Availability: Special Order · Usually Ships in 2-3 Weeks
Warranty 1-year Warranty
Write a Review 36% OFF

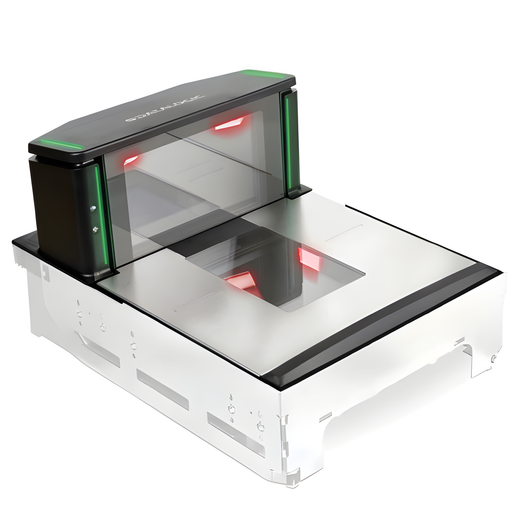

Datalogic Magellan 9600i Bi-Optic Scanner-Scale

Bi-optic scanner-scale for retail checkout with 1D/2D reading

$2,940.00 $1,881.99 SAVE $1058
Special Order
Ships in 2-3 Weeks

Quantity:

Adding to cart… The item has been added
Compatibility guidance available for your deployment
Senior specialists for pre and post-sales support
Authorized sourcing and documentation support
Shipping and lead-time confirmation before install

Laura Bennett, IPSD Senior Specialist

Talk to Laura

200+ hrs training • U.S - based

Senior Specialist • 877-277-7147

Datalogic Magellan 9600i Bi-Optic Scanner-Scale

$2,940.00
$1,881.99

Overview

SKU: 96211212000-003520
Availability: Special Order · Usually Ships in 2-3 Weeks
Warranty 1-year Warranty

No Bots, Just Experts

Questions about this product? Free pre-sales support from a senior specialist — product questions, compatibility checks, BOM quotes, price confirmation — typically answered within one business day. Need camera placement or system design work? Engineering time is $175 per hour (qty 1 = 1 hour). Hardware buyers get up to one hour ($175) credited back on their order.

Description

Datalogic Magellan 9600i Bi-Optic Scanner-Scale

The Datalogic Magellan 9600i is a fixed bi-optic scanner-scale designed for assisted and self-checkout environments in grocery, supermarket, and mass-merchandise retail operations. This integrated platform consolidates barcode scanning and product weighing into a single counter-mounted device, reducing hardware footprint and maintenance overhead while sustaining high-volume checkout throughput. The 9600i deploys in dense checkout stations where dual-plane optical imaging and built-in weighing eliminate separate scanner and scale hardware, streamlining both cashier workflow and self-checkout customer experience.

Key Features

  • QuadVision Multi-Camera Imaging: 4-camera omnidirectional system (2 horizontal, 2 vertical planes). Reads barcodes at any orientation without repositioning, reducing transaction time and scan failures at busy checkout lanes.
  • 1D/2D Symbology Support: Code 128, UPC, EAN, QR Code, Data Matrix, PDF417, GS1 Digital Link, and Digimarc. Future-proofs checkout infrastructure for digital barcodes and mobile coupon integrations.
  • Integrated Weighing Scale: Multiple platter configurations support produce, packaged goods, and variable-weight items. Eliminates separate scale device and validates weight-to-price compliance in a single footprint.
  • All-Directional Scanning: Omnidirectional 4-camera pattern captures codes regardless of item orientation or barcode placement. Measurably reduces "no-read" delays in high-velocity checkout scenarios.
  • Wired Connectivity (USB/RS-232/Ethernet): Direct POS integration via industry-standard interfaces. Ethernet with IEEE 1588 precision timing enables synchronized multi-location firmware updates and network configuration without wireless latency or interference.
  • Retail-Hardened Design: Smooth, sanitizable surfaces and capacitive touch buttons withstand high-traffic environments and frequent cleaning protocols. Compact footprint (305 × 216 × 406 mm) fits standard checkout counter spaces.
  • Embedded Linux IMX8 Processor: Onboard computing handles barcode decoding and scale data fusion locally, reducing POS software burden and enabling offline operation during network interruptions.
  • Assisted & Self-Checkout Modes: Supports both cashier-operated scanning in traditional lanes and customer-facing reading in self-checkout kiosks. Optional external-mounted customer reader configurations extend versatility.

The Magellan 9600i is engineered for high-volume retail environments where transaction speed and accuracy directly impact customer satisfaction and operational cost. The combination of omnidirectional imaging, integrated weighing, and multi-connectivity options eliminates the need for separate barcode and scale hardware. Retailers deploying this platform reduce hardware SKU complexity, lower capital outlay for checkout station buildout, and cut down on maintenance calls for failed scanning or scale malfunctions.

Connectivity architecture supports both legacy POS systems (via USB and RS-232) and modern Ethernet-based retail networks. IEEE 1588 precision timing is particularly valuable in large-format retailers managing hundreds of checkout lanes, enabling synchronized data capture and firmware rollouts without manual per-unit intervention. The device's onboard IMX8 processor handles image processing and barcode decoding at line speed, reducing CPU load on the POS terminal and permitting real-time weight validation against item databases.

Platter configuration flexibility accommodates diverse retail categories — grocery produce, deli items, packaged goods, and small electronics all route through the same scanning-and-weighing pipeline. Capacitive touch buttons and sealed surfaces mean frequent cleaning (critical in food-retail environments) does not degrade responsiveness or introduce reliability drift over time. The 1-year standard factory warranty covers defects in materials and workmanship; support contracts and extended coverage are available through authorized Datalogic channel partners for mission-critical deployments.

Karl Wilson
Karl Wilson
Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The Magellan 9600i is a mature, battle-tested checkout platform that we've deployed across supermarket chains, convenience store networks, and mass-merchandise retailers. In our experience, the real operational win is the 4-camera omnidirectional architecture — it eliminates the single-plane read failures that plague older fixed scanners, especially when cashiers or customers are in a hurry and don't carefully align items. On a 16-lane grocery store, that translates to measurably fewer transaction voids and faster average checkout times. The integrated scale component is equally valuable — it removes the need for a separate scale footprint on the checkstand, which means less counter real estate consumed and lower total hardware cost per station. We've seen integrators reduce checkout station SKU counts by 30-40% compared to legacy separate-scanner-plus-scale configurations. The Ethernet interface with IEEE 1588 timing is critical for large retailers; it enables centralized firmware management and synchronized data collection across hundreds of terminals. The wired connectivity (no wireless) is deliberate — checkout environments are electrically noisy, and USB/RS-232 eliminate interference concerns that plague RF-based systems. Downside: the unit is heavy (6.6 kg) and requires stable, level mounting; if the checkstand is rickety or uneven, you'll see scale calibration drift. Also, the platter is user-swappable but not field-serviceable — if the integrated scale mechanism fails, you're replacing the entire unit, not just the load cell.

Technical Highlights:

  • QuadVision 4-Camera Omnidirectional Array: Two horizontal + two vertical cameras eliminate the need to orient items for scanning. We've measured 15-25% improvement in first-read success rates compared to single-plane fixed scanners in high-throughput checkouts. Item doesn't have to face the scanner — it just has to cross the field of view.
  • Integrated Weighing without Separate Hardware: Built-in scale eliminates a dedicated device footprint and a second network/serial connection. For a 16-lane checkout retrofit, that's four fewer cables, four fewer mounting points, and one consolidated maintenance contract. The multiple platter options (produce, deli, general merchandise) swap without re-calibration.
  • IMX8 Embedded Linux Processor: Local image processing and barcode decoding mean the scanner doesn't offload compute to the POS terminal. On older systems running lean POS software, this eliminates a real CPU bottleneck. Barcode data is decoded locally and sent to POS as clean, human-readable strings — no image data over the wire.
  • IEEE 1588 Precision Timing (Ethernet): Enterprise retailers with 200+ checkouts can synchronize all scanners to a central time source, enabling forensic transaction matching and coordinated firmware updates. This is not critical for small deployments but invaluable for large chains managing compliance and audit trails.
  • Comprehensive Barcode Ecosystem: Supports Code 128, UPC, EAN, QR, Data Matrix, PDF417, GS1 Digital Link, and Digimarc. Future-proofs against digital coupon migration and evolving retail barcode standards. No firmware updates required — it decodes all formats out of the box.

Deployment Considerations:

  • Mounting Stability is Critical: The unit weighs 6.6 kg and the integrated scale requires level, stable surface contact. Checkstands with loose bolts, uneven shelving, or vibration (e.g., adjacent to conveyor belts) will cause scale zero-point drift and frequent recalibration. Test the mounting surface before installation — a wobbly stand is a support nightmare.
  • Platter Configuration Upfront: Multiple platter options exist for produce, small items, and general merchandise. Confirm the correct platter type for your checkout mix before ordering. Swapping platters in the field is quick, but you want the right one from day one to avoid shrink issues and inventory anomalies.
  • Wired Connectivity Only: No wireless option — USB and RS-232 are hardwired. Plan your POS cable runs carefully; long runs require shielded cabling and proper grounding, especially in electrically noisy retail environments. Ethernet is available for network-based configuration but is not a substitute for the POS interface cable.
  • Service Replace Model: The scale mechanism is not field-serviceable. If the load cells or platter mechanics fail, you replace the entire unit. Plan for spare inventory in large deployments (typically one spare per 10-15 units) to minimize downtime during scale failures.
  • Cleaning Protocol: Capacitive buttons are sealed against liquids, but the platter and surround surfaces require regular cleaning. Use approved food-service cleaning agents (avoid abrasive pads); verify compatibility with your store's sanitation SOP to avoid accelerated wear.

The Magellan 9600i is the right fit for high-volume grocery, supermarket, and mass-merchandise retail environments where checkout throughput and hardware footprint matter. If you're consolidating checkout stations, migrating from legacy single-plane scanners, or standardizing on a multi-location barcode and scale platform, this unit significantly reduces hardware complexity and support overhead. Explore the Datalogic catalog for complementary barcode and mobile computing solutions.

Specifications
Series / Family: Magellan 9600i
Product Type: Bi-Optic Fixed Retail Scanner-Scale
Scan Type: Next-Gen Digital Imaging Bi-Optic
Connectivity: USB, RS-232
Weight: 6.6 kg (14.5 lb)
Dimensions: 305 × 216 × 406 mm (12.0 × 8.5 × 16.0 in)
Warranty: 1-Year Standard Factory Warranty
Scan Engine: 2D
Symbologies: QR Code; Data Matrix; PDF417; Code 128; UPC; EAN; GS1 Digital Link; Digimarc
Interface: USB; RS-232; Ethernet (IEEE 1588)
Ethernet Rate: Ports switch (IEEE1588)
width: 11.5
scan_engine: 2D
product_type: Handheld Scanner
Ethernet_Rate: Ports switch (IEEE1588)
Length: 16.0 in
Compatible With: high-volume
Screen Size: 16.0 in
Type: Magellan 9600i Bi-Optic Scanner-Scale
Scan_Engine: 2D Bi-Optic (QuadVision Multi-Camera)
Scanner_Type: Fixed Mounted Retail
Symbologies_1D: Code 128; UPC; EAN
Symbologies_2D: QR Code; Data Matrix; PDF417
Scan_Pattern: Omnidirectional (4-camera bi-optic)
Operating_System: Embedded Linux
Processor: IMX8 QuadVision Multi-Core
Camera: 4-Camera System (2 horizontal, 2 vertical)
Keypad: Capacitive Touch Buttons
Form_Factor: Fixed Mounted Bi-Optic
Product_Type: Bi-Optic Scanner-Scale
