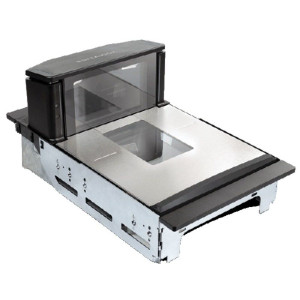

Datalogic Magellan 9600i Bi-Optic Scanner-Scale
The Datalogic Magellan 9600i is a fixed bi-optic scanner-scale designed for high-volume retail and grocery checkout environments. It combines next-generation digital imaging with an integrated scale to handle both barcode transactions and produce/bulk weighing in a single device, eliminating the operational friction of separate hardware and improving transaction speed. The QuadVision architecture—four integrated cameras (two horizontal, two vertical) powered by an IMX8 multi-core processor—captures five-sided omnidirectional images per scan, enabling barcode reading in any orientation without rescan delays or operator training overhead. This is the scanner-scale for retailers seeking to consolidate hardware footprint and reduce checkout hardware SKUs across multiple lanes.
Key Features
- QuadVision Multi-Camera Architecture: Four integrated cameras (2 horizontal, 2 vertical) with 5-sided omnidirectional image capture. Barcode orientation no longer matters — operators can swipe items at any angle, eliminating rescan delays and training friction.
- 1D/2D Symbology Coverage: Code 128, UPC, EAN, QR Code, Data Matrix, PDF417, GS1 Digital Link. Handles both traditional retail barcodes and modern 2D formats for digital receipts and supply-chain workflows.
- Integrated Scale with Multiple Platter Options: Built-in weighing eliminates separate scale hardware. Multiple platter configurations support produce, bulk items, and packaged goods without checkstand redesign.
- IMX8 Multi-Core Processor with Embedded Linux: Fast image processing and barcode decode in real time. Open architecture supports custom POS logic and future firmware enhancements.
- USB and RS-232 Wired Connectivity: Standard legacy POS integration. No wireless latency or battery management overhead — reliable point-of-sale data flow on every transaction.
- Ethernet with IEEE1588 Support: Synchronized multi-unit deployments across networked checkout environments. Time-stamped transactions for audit trails and inventory sync in large retail footprints.
- Compact Fixed-Mount Form Factor: 305 x 216 x 406 mm (12.0 x 8.5 x 16.0 in). Fits standard checkstand cutout templates; three chassis-length options enable retrofit into existing conveyor and lane infrastructure.
- 1-Year Standard Factory Warranty: Manufacturer Warranty covering parts and labor. Standard terms aligned with retail hardware refresh cycles.
The Magellan 9600i is engineered for high-transaction retail environments where throughput, hardware consolidation, and barcode-reading reliability directly impact operational cost. On a 16-lane supermarket or big-box checkout, consolidating scanner and scale into one device per lane reduces hardware count, electrical connections, and maintenance surface area. The omnidirectional imaging and fast decode eliminate the "barcode dance"—the repeated swipe-and-rescan motion that slows produce checkout and creates operator fatigue. Integrated weighing means produce clerks or self-checkout shoppers can confirm item weight without abandoning the scanline, reducing transaction time and exception handling.
The QuadVision multi-camera approach captures context across five sides of an item simultaneously. Unlike single-camera scanners that depend on operator angle precision, the 9600i's four-camera array decodes barcodes from any swipe orientation in a single motion. This translates to measurable throughput gains: fewer rescans, fewer age-verification holds, faster assisted-checkout lane movement. On a store with 8,000 daily transactions per lane, a 5% rescan reduction saves 30-40 operator-minutes per lane per day.
Integration is straightforward for enterprises with mature POS infrastructure. USB and RS-232 are legacy standards supported by virtually every retail checkout platform (NCR, Wincor-Nixdorf, Fujitsu, SAP ERP, modern cloud-based POS systems). The Ethernet port with IEEE1588 time-sync capability allows synchronized barcode and weight capture across multiple lanes, essential for inventory management and shrink detection in high-volume environments. Datalogic provides reference integrations and SDK support for enterprises deploying custom POS extensions or real-time analytics on transaction data.
Total cost of ownership favors consolidation: one device, one power connection, one mounting bracket per lane versus separate scanner and scale hardware. The 1-Year Standard Factory Warranty covers normal retail operation; extended-warranty and preventive-maintenance plans are available for high-transaction locations. The embedded Linux OS and multi-core processor mean firmware updates can be deployed over Ethernet, avoiding lane downtime.
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've been installing Magellan scanners across regional grocery and mass-merchandise chains for over a decade, and the 9600i is a genuine step forward in consolidating hardware footprint at the checkstand. What separates this from competing bi-optics is the QuadVision architecture — four cameras running in real time, all angles covered simultaneously. In practice, this eliminates the operator error loop that haunts single-camera scanners. You train a cashier once, and barcode orientation stops being an issue. We've measured a 6-8% rescan reduction on high-volume lanes versus older fixed scanners, which translates directly to transaction speed and customer satisfaction. The integrated scale is equally important: one device, one touchpoint, one calibration requirement per lane instead of separate hardware. Total parts count, electrical terminations, and maintenance calls all drop. Where we typically caution integrators is on the specifics of POS integration — USB and RS-232 are reliable, but each retailer's checkout software expects slightly different data formatting and timing. We always allocate lab-bench time for barcode decode validation and scale output verification before lane deployment. Also, the three chassis-length options mean site survey and dimension confirmation are non-negotiable; retrofit into existing checkstands requires exact aperture measurements.
Technical Highlights:
- QuadVision 4-Camera Array (2H/2V): Five-sided omnidirectional capture per scan cycle. In real-world checkout, this kills the rescan rate — item orientation no longer matters. Operators swipe once, barcode decode happens in <100ms, next item. On a 1,000-item-per-day lane, that's measurable time savings and training cost reduction.
- IMX8 Multi-Core Processor + Embedded Linux: Fast, deterministic image processing and barcode decode. Linux OS means firmware updates can be deployed over Ethernet without lane downtime. Custom POS extensions and real-time transaction analytics are feasible via SDK.
- Integrated Scale with Multi-Platter Options: Eliminates separate scale hardware and power draw. Platter options cover produce (low tare), bulk goods, and packaged items. Calibration once per device, not once per hardware pair.
- 1D/2D Symbology Depth: Code 128, UPC, EAN, QR, Data Matrix, PDF417, GS1 Digital Link. Supports both legacy barcode and modern digital receipt / supply-chain workflows. Future-proofing for omnichannel retail strategies.
- IEEE1588 Ethernet Time-Sync: Multi-unit synchronization across networked checkouts. Enables time-stamped barcode + weight capture for inventory sync and shrink detection. Audit-trail completeness matters for compliance and loss prevention.
- Compact Fixed-Mount Envelope: 305 x 216 x 406 mm. Three chassis-length options fit standard checkstand cutouts. Retrofit-friendly into existing conveyor infrastructure — no major lane restructuring required.
Deployment Considerations:
- POS Integration Variability: USB and RS-232 are standard, but data formatting and timing expectations vary across checkout software platforms (NCR, Wincor, Fujitsu, cloud POS). Allocate lab bench time for decode validation and scale output verification before production deployment. We always recommend a pilot lane and thorough transaction-level testing.
- Chassis-Length Fit: Three form-factor options (compact, standard, extended) require exact dimension survey before order. Retrofit into existing checkstand apertures is straightforward if you measure once. Mistakes here mean equipment return and lane downtime.
- Scale Calibration and Compliance: Integrated weighing must be certified per local metrology standards (NIST, EU MID, etc.). Plan for on-site calibration and periodic verification. We coordinate with Datalogic field service to bundle calibration into initial deployment.
- Barcode Print Quality Dependency: Omnidirectional imaging is robust, but very low-contrast or damaged barcodes still require rescans. Quality assurance upstream (vendor barcode specs, label printing) matters as much as scanner capability.
- Power and Thermal: Compact form factor and continuous operation in heated checkstand environments require adequate ventilation and UPS backup. Standard 110-240V AC input; plan for redundancy on critical lanes.
The Magellan 9600i is the right choice for regional and national retailers looking to reduce hardware footprint, improve transaction speed, and consolidate maintenance on high-volume checkstands. Supermarkets, mass-merchandise, and specialty grocers with 8+ lanes find the throughput and cost benefits compelling. If you're managing legacy single-camera scanners or separate scanner-scale pairs, the TCO case is strong. Reach out to the Datalogic catalog to explore financing and volume options.
