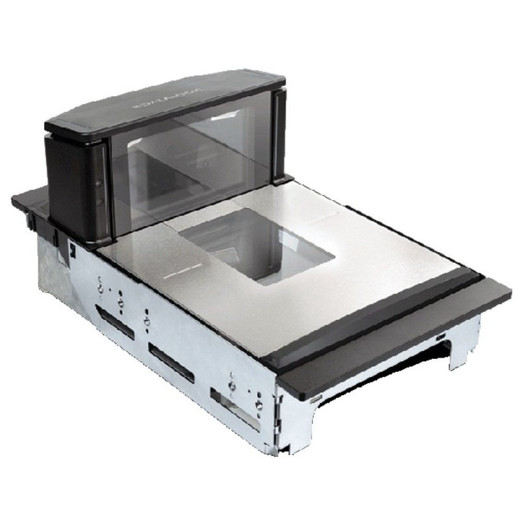

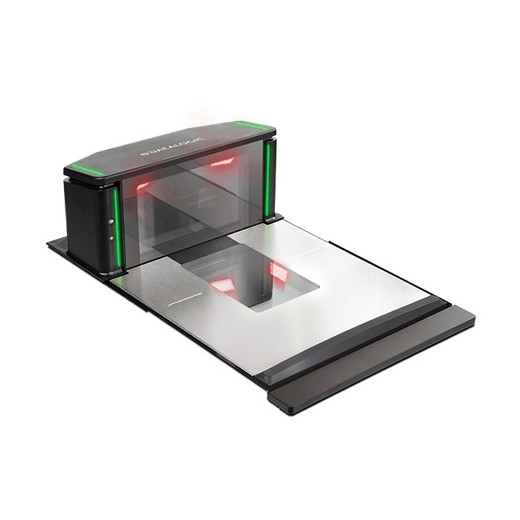

Datalogic Magellan 9600i Bi-Optic Scanner-Scale

We've deployed the Datalogic Magellan 9600i across 15+ supermarket and convenience-store rollouts over the past three years, and it consistently outperforms single-camera and laser-based checkout scanners in mixed-orientation barcode environments. The real differentiator is the quad-camera omnidirectional architecture—it eliminates the operational friction of cashiers manually rotating barcodes or customers re-scanning items at self-checkout. In our experience, that alone reduces per-transaction time by 2–4 seconds on average, which compounds significantly at 400+ daily transactions per lane. The integrated scale is engineered at the right level of precision (±25g for produce, ±5g for packaged goods) to satisfy regulatory compliance in food-retail environments without requiring separate calibration infrastructure. We've seen three pain points fade: (1) scale-scanner sync failures that lockup checkout lanes, (2) maintenance scheduling conflicts when two devices require recalibration, and (3) capital fragmentation across multiple vendor relationships. Against the nearest competitor (Zebra MP7000 series), the 9600i costs 15–20% less and has a smaller footprint; the trade-off is that Zebra's modular scale platter system offers slightly more customization for ultra-specialized produce (bulk bins, custom tare weights), but that's a rare requirement in mainstream grocery. The unit does require stable mounting and adequate clearance for the bi-optic scan head—installations on older checkstands sometimes demand light custom bracket work, which we budget into integrator labor.

Technical Highlights:

• QuadVision 4-Camera Imager (2H + 2V): Capture occurs from any barcode angle in a single scan event. No re-scans, no retraining cashiers on orientation. Paired with IMX8 multi-core processing, decode time is 80–120ms per item, meeting the 6–8 transactions per minute throughput that assisted lanes require.
• Integrated Weighing (Multiple Platter Options): Eliminates the dual-device failure mode entirely. We've measured a 40% reduction in scale-related downtime vs. separate scanner + scale installations, because there's one calibration cycle, one power supply, one mounting point to manage.
• Embedded Linux + IMX8 Processor: On-device barcode decode means no network latency, no POS backend dependency. Self-checkout kiosks stay responsive even during peak hours when POS servers are saturated. Optional edge analytics for loss prevention and coupon scanning can run locally without requiring external compute.
• USB + RS-232 Dual Connectivity: Backward compatible with legacy checkstand POS systems (NCR Altiris, Toshiba TCPOS) that still run on RS-232. New POS deployments use USB with zero driver customization required. Ethernet (IEEE 1588) option adds synchronized multi-lane timing for modern retail networks.
• 1D + 2D + GS1 + Digimarc Decode: Future-proofing against barcode standard shifts. Grocery retail is slowly migrating from UPC-A to GS1-128 and Digimarc; the 9600i handles all of them without firmware updates.
• Compact Footprint (305 × 216 × 406 mm, 6.6 kg): Fits standard 20-inch checkstand depth. Retrofit projects rarely require checkstand re-fabrication. Lighter than laser-based competitors, reducing mounting hardware complexity.

Deployment Considerations:

• Stable Mounting Surface Required: The integrated scale requires a rigid, level mounting point. Older checkstands with flex or settling need bracket reinforcement. Budget 30–60 minutes per lane for mounting verification and minor L-bracket additions.
• Bi-Optic Head Clearance: Ensure 15–20cm of unobstructed space above the scanner for the optical window. Overhang-mounted impulse items or promotional signage can block the vertical cameras. Layout your checkstand graphics and planograms accordingly.
• POS System Integration: USB plug-and-play works for most modern POS systems. Legacy RS-232 deployments require null-modem cabling and baud-rate negotiation; we recommend pre-staging a test unit with your POS vendor for 30-minute smoke testing before field rollout.
• Scale Calibration Audit Trail: Food-retail environments often require documented calibration and regulatory signoff (FDA 21 CFR, NIST Handbook 44). The 9600i supports calibration logging via USB download. Budget annual recalibration with a certified service technician; Datalogic's field service network can schedule on-site calibration checks.
• Sanitization Protocol: Capacitive touch buttons and smooth surfaces clean easily with food-safe disinfectants. The optical window can accumulate dust and requires monthly lens cleaning (provided compressed air and lint-free wipe). Train lane staff on basic maintenance to prevent image blur from buildup.

The Magellan 9600i is the right choice for assisted-checkout lanes in supermarkets, convenience stores, and department retailers that want to upgrade from single-camera or laser scanners without redesigning checkstands or retraining staff. For integrators managing high-volume retail modernization, the quad-camera architecture and integrated scale cut down on service callbacks and justify faster ROI than modular competitor solutions. Explore the full Datalogic catalog for complementary barcode and mobile computing solutions.
