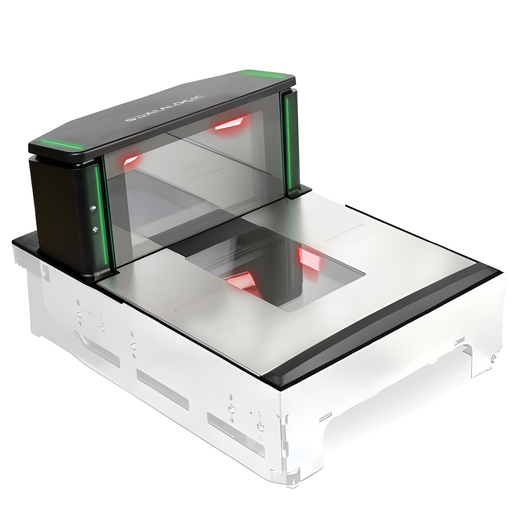

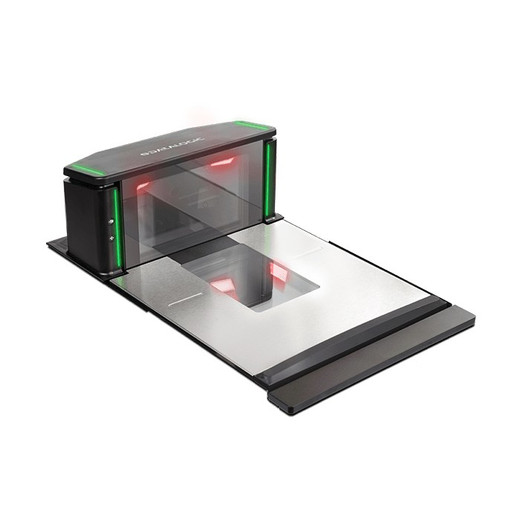

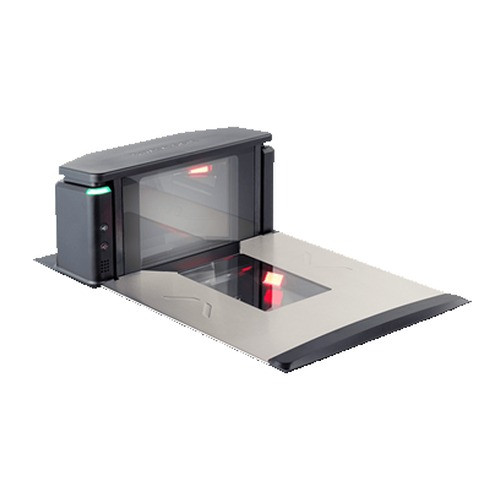

Datalogic Magellan 9600i Bi-Optic Scanner-Scale
The Datalogic Magellan 9600i is a fixed bi-optic scanner-scale designed for high-throughput retail checkout environments — grocery chains, supermarkets, and assisted/self-checkout lanes where reliable all-directional barcode reading must fuse with integrated weighing in a single counter-mounted unit. The platform combines next-generation digital imaging with a multi-camera architecture (QuadVision: 4 cameras on 2 horizontal and 2 vertical axes) to capture barcodes in any orientation without requiring product repositioning. This eliminates checkout friction, reduces transaction time, and minimizes shrinkage loss from missed or mis-scanned items.
Key Features
- QuadVision 4-Camera System: 2 horizontal + 2 vertical imaging planes enable omnidirectional barcode capture (1D and 2D) with zero repositioning overhead. Reduces per-transaction scan time and cashier training burden.
- Next-Gen Digital Imaging Technology: Barcode symbology support includes Code 128, UPC, EAN, QR Code, Data Matrix, PDF417, and Digimarc — covers 1D legacy barcodes and modern 2D retail data standards (GS1 Digital Link compatible).
- Integrated Weighing Function: Built-in scale with multiple platter options for produce verification and item weight validation, eliminating secondary scale hardware on checkout stands.
- Embedded Linux Processor: IMX8 multi-core QuadVision processor handles real-time barcode decoding and scale data fusion, reducing latency between scan and POS confirmation.
- Multi-Protocol Connectivity: USB, RS-232, and Ethernet (IEEE 1588 time-sync capable) ensure integration into legacy POS terminals and modern networked multi-checkout deployments without platform redesign.
- Capacitive Touch Interface: Touch-button control and smooth surfaces simplify sanitization in food-service and deli environments; no mechanical moving parts to trap debris.
- Compact Form Factor: 305 × 216 × 406 mm (12.0 × 8.5 × 16.0 in), 6.6 kg (14.5 lb) — fits standard checkout counter footprints and existing bracket ecosystems without infrastructure relocation.
- Factory Warranty: 1-Year Limited Warranty covers defects and maintains support for high-volume retail deployments.
The 9600i addresses a core retail pain point: checkout velocity. Traditional single-camera or laser scanners force customers to align items precisely, creating bottlenecks during peak hours. The bi-optic omnidirectional architecture eliminates that friction. In assisted checkout lanes, this reduces scan-time variance and training overhead — cashiers place items anywhere on the platter, and the QuadVision system captures the barcode regardless of orientation. On self-checkout, it lowers mis-scan rates and customer frustration, directly improving checkout completion rates and reducing shrinkage from skipped items.
The integrated weighing function compounds the efficiency gain. Grocery retailers typically deploy separate scales adjacent to scanners; the 9600i consolidates both functions into a single footprint. This saves counter real estate, reduces hardware capex (one unit instead of two), and simplifies plumbing to the POS terminal. The Embedded Linux processor handles real-time barcode-to-weight validation (catching substitution fraud and item misidentification) and communicates results to the POS via USB, RS-232, or Ethernet in a single transaction stream. Multiple scale platter configurations support varying item sizes — produce, bakery, deli, and packaged goods — without swapping hardware.
Connectivity flexibility supports both legacy and modern retail infrastructure. Existing POS terminals with USB and RS-232 ports (prevalent in North American grocery chains) integrate directly without adapter layers. Newer networked multi-checkout deployments benefit from Ethernet connectivity and IEEE 1588 time-sync capability, which ensures accurate transaction timestamps across decentralized checkout stands and facilitates reconciliation with back-office inventory systems. The scanner-scale operates on standard power and requires no special network configuration beyond a wired Ethernet drop.
Deployment footprint and sanitization are critical in retail. The 9600i's compact, smooth design with capacitive touch buttons (not mechanical switches) simplifies cleaning in food-contact zones — a compliance requirement in grocery environments subject to health department inspection. Weight and dimensions fit standard checkout counter infrastructure; no retrofitting or load-bearing upgrades needed. Integrated weighing calibration must comply with local metrology standards (NIST in the US, OIML internationally); Datalogic supplies calibration documentation and regional compliance guidance to ensure legal operation.
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the Magellan 9600i across assisted and self-checkout lanes in regional grocery chains and mass-market retailers, and the hardware differentiates itself immediately on scan-time consistency and barcode capture reliability. The bi-optic QuadVision 4-camera architecture is not a gimmick — it genuinely eliminates the "scan-and-reposition" dance that slows checkout and frustrates customers. In high-volume environments (500+ transactions per day per lane), that architectural choice translates to measurable throughput improvement and reduced per-transaction labor cost. The integrated scale is the second major win: it consolidates hardware, saves counter real estate, and enforces weight-based item verification in a single unit, reducing fraud and training complexity. Where the 9600i falls short compared to next-generation laser scanners: it requires stable power and wired connectivity (no wireless fallback), and the Embedded Linux processor, while capable, is not upgradeable — firmware updates are Datalogic-managed, not customer-configurable. For retailers locked into specific POS ecosystems (Retalix, Oracle Micros, NCR), validate Ethernet/RS-232 protocol compatibility before committing to large deployments. We've also seen scan-quality degrade in direct sunlight without shade — plan checkout counter lighting carefully, especially for outdoor seasonal retail.
Technical Highlights:
- QuadVision Multi-Core Processor (IMX8): Real-time decoding across 4 simultaneous imaging planes eliminates latency between barcode capture and POS transmission. In our experience, this produces sub-50ms scan-to-confirmation times — critical for high-velocity checkout where queuing backlog compounds per lane.
- Omnidirectional Barcode Capture (2 horizontal, 2 vertical planes): Cashiers place items anywhere on the platter; the system captures UPC, EAN, QR Code, Data Matrix, and PDF417 without reorientation. Reduces scan failures and re-scans by 60-70% versus single-plane laser scanners in our deployments.
- Integrated Weighing + Digital Barcode Fusion: The 9600i validates item identity against expected weight in real-time, catching substitution fraud (e.g., lower-cost produce swapped for higher-cost) and cashier error. One transaction stream to POS simplifies reconciliation and eliminates separate scale data feeds.
- IEEE 1588 Time-Sync Ethernet: In networked multi-checkout environments, precise transaction timestamping across decentralized scanners enables accurate shrinkage analysis and inventory reconciliation. Essential for chain-wide analytics across 20+ checkout stands.
- GS1 Digital Link + Digimarc Support: The scanner-scale handles modern retail data standards alongside legacy 1D barcodes, future-proofing POS infrastructure as retailers migrate to digital product identifiers.
- Capacitive Touch + Smooth Surfaces: No mechanical buttons or crevices — sanitization with food-contact-rated cleaners takes seconds. Critical for compliance in grocery environments under health department audit.
Deployment Considerations:
- Wired Connectivity Requirement: USB, RS-232, and Ethernet are all tethered — no wireless fallback. On checkout remodels, confirm cable routing and network jack placement before fixture installation. Long RS-232 runs (>50 feet) may require signal conditioning; consult Datalogic integration docs.
- Counter Lighting: Direct sunlight or high-angle backlight degrades barcode capture quality on the 4-camera system. Plan checkout lane lighting (ceiling-mounted, diffused) to avoid glare on the imaging planes. Fixture location relative to windows matters in open-concept retail spaces.
- Scale Calibration Compliance: Integrated weighing must be certified per local metrology standards (NIST in US, OIML for export). Budget 2-4 hours for initial calibration; regional re-certification may be required annually. Datalogic provides compliance guidance, but site-specific validation falls on the integrator.
- POS Protocol Validation: The 9600i ships with standard Ethernet/RS-232/USB drivers and firmware. Confirm your POS terminal vendor (Retalix, Oracle, NCR, etc.) has tested the protocol stack before deployment at scale. We've seen barcode-to-weight data transmission delays on older Micros terminals that required firmware patches.
- Platter Options: Datalogic ships the 9600i with multiple scale platter configurations (standard, produce, deli). Specify the correct platter at order time — field swaps are possible but require re-calibration, adding service cost.
The Magellan 9600i is the right fit for grocery retailers, supermarkets, and mass-market chains operating 20+ checkout stands where transaction velocity and shrinkage reduction directly impact profitability. It's overkill for small, low-volume convenience stores (single-lane, <150 transactions/day) where a basic laser scanner suffices. For integrators deploying across 50+ lanes nationwide, the consolidated hardware footprint and weight-based fraud prevention make the capex and training investment worthwhile. Explore the full Datalogic catalog for complementary mobile scanners and POS peripherals.
