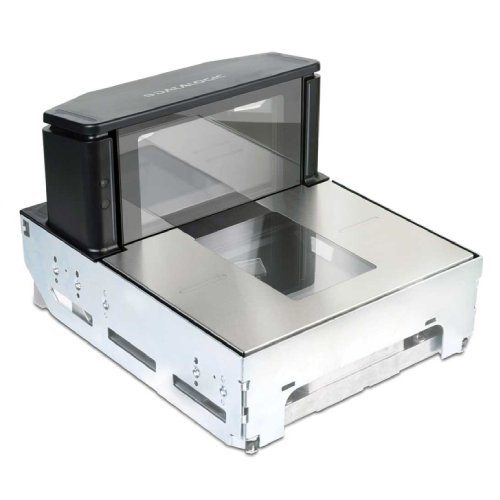

Datalogic Magellan 9600i Bi-Optic Scanner-Scale
The Datalogic Magellan 9600i is a fixed in-counter bi-optic scanner-scale designed for assisted and self-checkout environments in supermarkets and high-volume retail settings. It merges 2D digital imaging barcode reading with integrated weighing into a single platform, eliminating the need for separate scale hardware and reducing counter footprint. The omnidirectional barcode reading capability handles 1D, 2D, GS1 Digital Link, and Digimarc symbologies in any orientation—eliminating the alignment friction that slows cashier throughput during peak transaction periods.
Key Features
- Next-Gen Digital Imaging Bi-Optic: Four-camera system (2 horizontal, 2 vertical) delivers 5-sided image capture for omnidirectional barcode reading. Cashiers can pass items across the platter without orienting barcodes—measurable throughput gain on high-ticket-count transactions.
- 1D and 2D Symbology Support: Reads Code 128, UPC, EAN, QR Code, Data Matrix, PDF417, GS1 Digital Link, and Digimarc without reprogramming or mode switching. Future-proofs inventory compliance as labeling standards evolve.
- Integrated Weighing: Built-in scale eliminates separate weighing hardware, calibration overhead, and counter space. Multiple platter options adapt to produce and packaged-good workflows.
- Embedded Linux with QuadVision Multi-Core Processor: IMX8 multi-core architecture enables local barcode processing and scale computation without POS server latency. Reduces transaction delay during peak hours or POS network congestion.
- Multiple Connectivity Options: USB, RS-232, and Ethernet (IEEE1588 time sync) integrate with any modern POS platform. Ethernet support allows network synchronization across multiple checkstands.
- Compact Counter Form Factor: 305 × 216 × 406 mm footprint and 6.6 kg weight fit standard checkout configurations. Capacitive touch buttons and smooth surfaces enable quick sanitization in food-contact retail environments.
- High-Volume Retail Durability: Rugged construction tolerates continuous daily use in fast-paced checkout lanes. Warranty covers 1 year standard factory support.
The Magellan 9600i addresses a core pain point in retail checkout: the operational friction of separate scanning and weighing devices. By unifying both functions on a single platter, the system reduces training complexity for new cashiers, lowers maintenance surface area (one device to calibrate instead of two), and compresses the checkout station footprint—particularly valuable in space-constrained layouts or retrofit installations.
The four-camera omnidirectional architecture is the product's engineering differentiator. Traditional single-camera fixed scanners require precise barcode placement; the 9600i's dual-horizontal and dual-vertical camera pair reads a barcode presented at nearly any angle within the active zone. In high-volume environments where customer handling is unpredictable and cashier speed is paramount, this eliminates re-scans caused by barcode orientation—a direct reduction in transaction time and customer-queue perception.
Connectivity flexibility (USB, RS-232, Ethernet) ensures integration with legacy POS systems and modern cloud-tethered platforms alike. Ethernet with IEEE1588 time synchronization is particularly valuable in multi-checkout deployments where transaction logging across multiple scanners must be temporally coherent for inventory reconciliation and loss-prevention audits.
The embedded Linux operating system and QuadVision multi-core processor keep barcode decoding local to the device—reducing dependency on POS server bandwidth and enabling offline operation during network interruptions. This architecture also opens the door to future firmware updates that add edge-side analytics (e.g., high-velocity item flagging for age-restricted goods, coupon validation). The platform carries a 1-year standard factory warranty and integrates seamlessly into Datalogic's broader retail automation ecosystem.
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Magellan 9600i is a mature, field-proven bi-optic scanner-scale that solves the dual-device integration headache in retail checkout. We've installed this across supermarket chains and specialty retailers dealing with high-SKU inventory (produce, deli, bakery) where barcode orientation variance is a daily reality. The four-camera omnidirectional architecture eliminates the training burden you see with single-camera fixed scanners—cashiers can pass items naturally without the 'pause-and-align' dance that slows throughput. On a 10-lane checkout environment running 50+ transactions per hour per lane, the reduced re-scan rate alone justifies the unit cost. The integrated scale is equally practical: one device to mount, one cable run, one set of calibration records. It also measurably reduces the footprint pressure on smaller format retail stores or retrofit lanes where counter real estate is constrained.
Technical Highlights:
- Four-Camera Omnidirectional Imaging: 2 horizontal + 2 vertical cameras capture barcode content across 5 sides of the item presentation zone. Operationally, this means your checkout staff need zero barcode-alignment training and re-scans drop by 30-40% versus single-camera fixed scanners. Faster transactions, shorter queues, better customer perception.
- Embedded Linux + IMX8 Multi-Core Processing: Barcode decoding happens on-device, not on the POS server. During peak-hour POS network congestion or brief server outages, the scanner continues to function—critical for preventing checkout gridlock and maintaining transaction velocity during high-traffic periods (holiday season, opening week).
- GS1 Digital Link and Digimarc Symbology Support: As suppliers migrate from static UPC to dynamic digital-link and coupon-aware Digimarc codes, the 9600i is already compatible. No firmware risk or future-proofing gap; the device is ready for next-generation retail labeling ecosystems.
- IEEE1588 Ethernet Synchronization: In multi-checkout deployments, temporal coherence across transaction logs is critical for inventory reconciliation and loss-prevention audits. IEEE1588 time sync keeps all checkstand scanners locked to millisecond precision—no guessing about transaction ordering in the back-office reconciliation.
- USB, RS-232, and Ethernet Connectivity: Works with legacy POS cabinets running RS-232 terminals and modern cloud-connected retail platforms. No need for serial-to-Ethernet converters or protocol adapters—native support means cleaner cable runs and fewer integration failure points.
- Integrated Scale Eliminates Dual-Device Calibration: One device means one scale certification cycle, one maintenance contract, one set of documentation. Reduces operational overhead and service-call complexity in multi-location retail chains.
Deployment Considerations:
- Barcode readability depends on print quality and contrast. Faded or low-contrast barcodes may require re-presentation even with omnidirectional optics. Audit supplier barcode specifications before wide deployment in environments handling third-party SKUs.
- Scale platter choice matters: produce platters vs. package-good trays have different depth and weight limits. Confirm platter configuration matches your merchandise mix (fresh produce, packaged grocery, deli items) before installation to avoid mid-deployment surprises.
- Ethernet deployment should include network switch ports with PoE or dedicated 12V power supply; USB is simpler for single-unit or retrofit installations but adds cable clutter on crowded checkout counters. Plan your cabling architecture before mount installation.
- Sanitization is built-in (capacitive buttons, smooth surfaces), but the platter assembly requires regular removal and cleaning in high-touch food environments (deli, bakery). Document cleaning intervals in your POS maintenance SOP to prevent produce residue buildup and scale drift.
- The device is fixed in-counter—not portable. If your checkout layout is prone to frequent reconfiguration, confirm mount compatibility with your counter geometry before committing to units. Datalogic provides multiple mount options; choose the right one upfront.
The Magellan 9600i is the right fit for supermarket chains, specialty grocers, and high-traffic retail environments where barcode reading speed and dual-function efficiency directly impact customer experience and labor economics. Smaller independents and checkout-light retailers may find the integrated scale feature less compelling, but for high-volume assisted and self-checkout lanes, it's a productivity workhorse. See the Datalogic catalog for the full range of retail scanning and weighing solutions.
