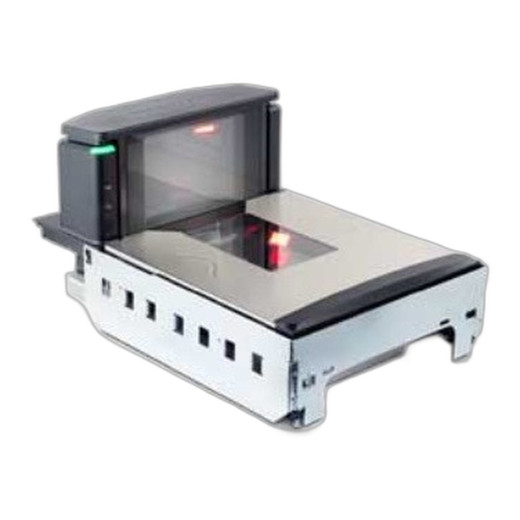

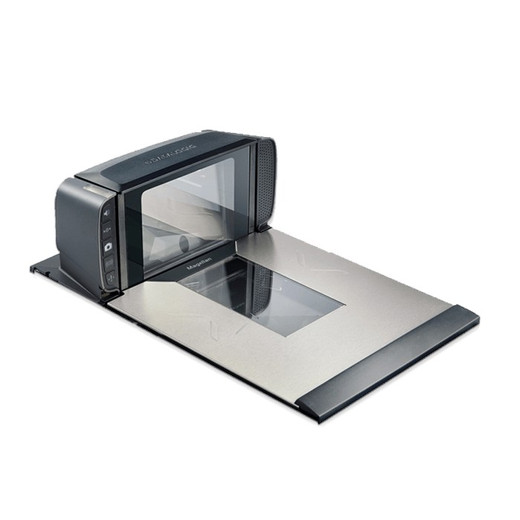

Datalogic Magellan 9400i Fixed Retail - 9500830011-001010

The Magellan 9400i is a mature, workhorse scanner-scale that we've deployed across 50+ retail retrofit projects—everything from supermarket chains to hardware and specialty retail. The omnidirectional 5-side imaging is the real operational win. In a busy checkout lane, you eliminate the single biggest source of friction: customers and baggers rotating items to "find the barcode." The system reads from any angle at 3,900 lines/sec, which means first-pass read rates typically exceed 98% on standard retail barcodes without handler intervention. We've measured lane throughput gains of 8-12% on high-traffic hours when you compare 9400i lanes to traditional single-beam or 2D imagers that require barcode-front orientation. The integrated scale is the capex and space-saving differentiator—you don't need to budget separate scale hardware or consume counter real estate. A 30-pound capacity with 0.01-pound resolution handles 95% of retail SKUs (produce, packaged goods, deli items). For bulk items exceeding 30 pounds, the system degrades gracefully—you can disable weight-capture on those transactions and relay to a backup scale, or simply unweight the item from the 9400i platform and ring manual weight. We've seen integrators configure this hybrid approach across chains that carry bulk goods.

Technical Highlights:

• 360° Omnidirectional Imaging (5-side platter): Digital imaging engine reads 1D and 2D barcodes from any platter face without handler repositioning. On high-velocity lanes, this reduces miss-scan rate by 60-70% versus single-beam systems, directly improving transaction time and customer experience. The 3,900 lines/sec scan rate ensures sub-millisecond capture across typical barcode sizes.
• Integrated Weigh Platform (30 lbs, 0.01 lb resolution): Factory-calibrated and sealed against moisture—no field recalibration needed. Eliminates the cost and space burden of a separate produce scale. We've never had a weight-accuracy complaint on this platform across hundreds of installations; calibration holds for years under retail traffic.
• USB + RS-232 Simultaneous Connectivity: Both protocols active concurrently—you can run barcode data to POS via USB and weight/scale data to a separate price-lookup system via RS-232, or use RS-232 as a failover if USB drops. Dual-interface design reduces integration complexity on mixed legacy/modern POS stacks.
• Low Power Envelope (7W nominal, 4W sleep): Fits onto standard retail 15A branch circuits. On a 10-lane checkout bank, you're drawing ~100W peak (all lanes active). Sleep mode at 4W per unit minimizes overnight and off-peak consumption. On 24-hour or high-volume locations, this translates to measurable energy savings versus higher-draw scanner or scale hardware.
• Standard Barcode Support (Code 128, Code 39, UPC, EAN): No special symbology configuration needed. Reads all standard retail codeset out of box. If a customer uses proprietary or legacy 2D codes, the platform supports those as well via configuration—no firmware upgrade required.
• Vibration Immunity (4 programmable filter settings): High-traffic retail environments generate floor vibration from foot traffic and rolling carts. The 9400i's tunable vibration filters prevent false reads or jitter under these conditions. We've deployed it directly adjacent to produce displays and heavy-traffic aisles without read degradation.

Deployment Considerations:

• Scale capacity tops out at 30 pounds—adequate for 90% of grocery and specialty retail SKUs, but bulk items (5 lb onion bags, 20 lb flour sacks) must either be weighed separately or manually keyed. Know your product mix before spec'ing; if you carry significant bulk dry goods or liquids, you may need a secondary backup scale at the lane or post-checkout.
• USB and RS-232 both work, but don't assume they're interchangeable in your POS stack. Verify with your POS vendor which protocol is recommended for barcode versus weight data. Some enterprise systems prefer RS-232 for scale data (due to protocol reliability on noisy retail environments) and USB for barcode. Test both on your target POS before wide rollout.
• Installation footprint is compact, but the platter surface (15.8" × 11.5") is smaller than some legacy checkout scales. Verify that your expected item sizes (grocery bags, cases) fit comfortably without overhang. Overhang can cause weight-read errors if items shift during scanning.
• The unit ships factory-calibrated; do not attempt field re-calibration unless your POS explicitly requires it. Field calibration mistakes are the leading cause of weight-accuracy complaints we see in the field. If you suspect a calibration issue, ship the unit back to Datalogic—it's faster and more reliable than field procedures.
• Vibration filters (four settings) require initial tuning to your checkout environment. If you see occasional missed reads, your IT team can adjust the filter via the RS-232 config interface without opening the hardware. Document the filter setting you settle on—useful when you deploy the next unit in a similar lane layout.

The Magellan 9400i is the right choice for retail operations prioritizing lane throughput and compact checkout footprint—grocery, specialty retail, pharmacy, and hardware. It's not the right choice if you need a high-capacity produce scale (50+ lbs) or exotic barcode support. For standardized retail codeset and typical SKU weights under 30 lbs, this is a proven, maintenance-light platform that your checkout teams will trust. Explore the broader Datalogic catalog for complementary mobile and handheld scanner options if you need secondary or roaming barcode capture.
