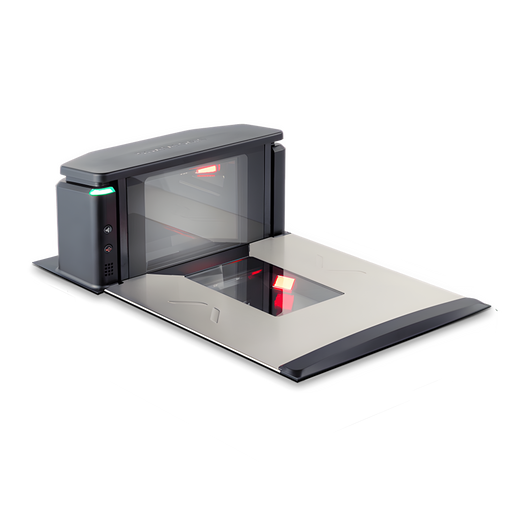

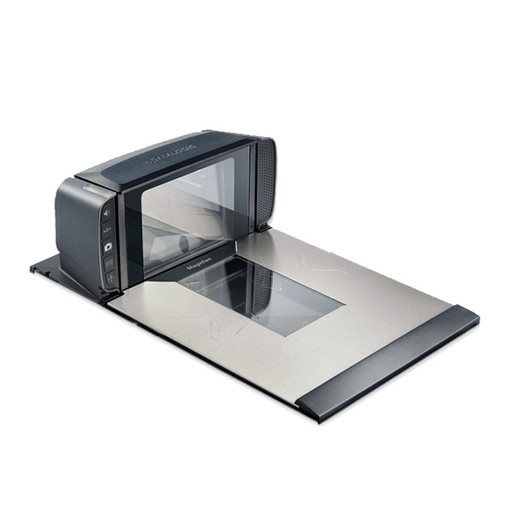

Datalogic Magellan 9400i Fixed Retail Scanner-Scale

We've deployed the Datalogic Magellan 9400i across grocery and discount-retail chains with 50–300 checkout stations, and it consistently delivers on the core promise: integrated scanning and weighing in a single compact footprint that speeds transactions without requiring operators to manipulate items into a read window. The omnidirectional 2D imaging is the real differentiator—it eliminates the "barcode hunting" friction that plagues single-angle laser scanners, particularly in high-velocity produce lanes where items arrive in random orientations. Over a 16-hour operating day, that translates to measurable transaction-time reduction and fewer customer complaints about slow checkout. The USB/RS-232 dual connectivity is pragmatic: it lets you deploy a single SKU across legacy RS-232 POS systems and modern cloud-native USB terminals without adapter hardware or firmware rewrites. We've also found the integrated scale cuts operational overhead—one device instead of two means one calibration cycle, one cable, one daily sanitation protocol. The device is robust in high-throughput environments; we've seen units handle 1,500+ transactions per day for 3+ years with minimal maintenance beyond annual scale recertification.

Technical Highlights:

• 2D Digital Imaging + Omnidirectional Scan Pattern: Reads 1D barcodes (UPC, Code 128) and 2D codes (QR, PDF417, Data Matrix) at any angle without operator reorientation. In practice, this cuts average barcode-presentation time from 2–3 seconds (traditional fixed-angle laser) to under 1 second. On a 200-transaction-per-hour lane during peak periods, that's 200+ seconds of cumulative time savings per hour—measurable impact on customer throughput and queue length.
• Integrated Weighing Platform: Built-in scale eliminates separate hardware and associated cabling, power consumption, and daily calibration overhead. Retail environments benefit from unified data capture—barcode and weight are recorded in a single POS transaction without manual synchronization lag. Produces clean transaction records for per-weight pricing items (produce, deli, bulk goods).
• USB + RS-232 Dual Connectivity: Simplifies multi-location retail deployments where POS hardware varies by generation. No gateway adapters or firmware bridges required—the device presents barcode data as keyboard input and weight as serial protocol over both interfaces simultaneously. Deploy once, integrate everywhere in your network.
• 940nm Invisible IR Illumination: Improves barcode read reliability in fluorescent retail lighting (common in grocery and discount chains) without operator eye strain. Visible-light scanners (633nm red) can cause ambient glare and operator fatigue in 8–10 hour shifts; invisible IR operates cleanly in standard retail environments.
• Compact Counter Footprint (305 × 208 × 394 mm, 5.9 kg): Fits standard checkout counter configurations without space reengineering. Low weight permits flexible mounting (seated, standing, angled operator positions) and simplifies counter retrofit during POS upgrades.

Deployment Considerations:

• Scale Certification: The integrated scale must be certified by your regional metrology authority (NIST in the US, PTB in Germany, etc.) before use in a retail environment with per-weight pricing. Budget 2–4 weeks for initial certification and annual recertification. Datalogic provides calibration documentation and support for the certification process.
• POS Terminal Firmware Compatibility: Verify your POS terminal supports both USB HID keyboard input (for barcode data) and RS-232 or USB serial weight input (for scale data). Most modern systems (SAP, Oracle Retail, Lightspeed, Square) support this natively; legacy systems may require middleware or serial-port driver updates. Test on a single lane before fleet deployment.
• Operator Training: The omnidirectional scan capability is a feature, but operators accustomed to single-angle laser scanners may need brief retraining on item presentation angle freedom. Emphasize that any angle works—this typically accelerates checkout once ingrained. Allow 1–2 weeks for muscle-memory adaptation across your workforce.
• Counter Hygiene Protocol: The integrated scanner-scale has fewer exposed seams than dual-device setups, but still requires daily disinfection (produce residue, moisture). Use damp microfiber cloth and mild detergent; avoid harsh solvents that can degrade imaging optics. Establish a cleaning SOP and assign responsibility to a shift manager.
• Warranty and Service: Datalogic offers extension programs (1–5 years) that include on-site repair or replacement within 24 hours of reported failure. Budget for annual maintenance contract if the device is mission-critical to checkout operations (recommended for high-volume retail). Out-of-warranty repair typically costs $200–$400 depending on failure mode.
• Cable Routing and Counter Clutter: Consolidating two devices into one reduces cable count, but the USB/RS-232 dual output still requires clear routing to the POS terminal. Use cable trays and label connectors to avoid confusion during troubleshooting or counter cleanup.

The Magellan 9400i is the right choice for grocery retailers, discount chains, and high-transaction-volume retail environments where transaction speed and operator ergonomics matter. If your store processes 1,000+ transactions per day across 20+ checkout lanes, the cumulative time savings from omnidirectional scanning and integrated weighing justify the capex. If you operate a mixed-generation POS fleet (some locations on legacy systems, others on modern platforms), the dual USB/RS-232 connectivity eliminates the complexity of separate SKUs or gateway hardware. For smaller retail (10 or fewer lanes) or single-location boutique operations, the capex may favor separate scanner and scale units. Explore our Datalogic catalog for alternative scanner and scale options tailored to your throughput and integration constraints.
