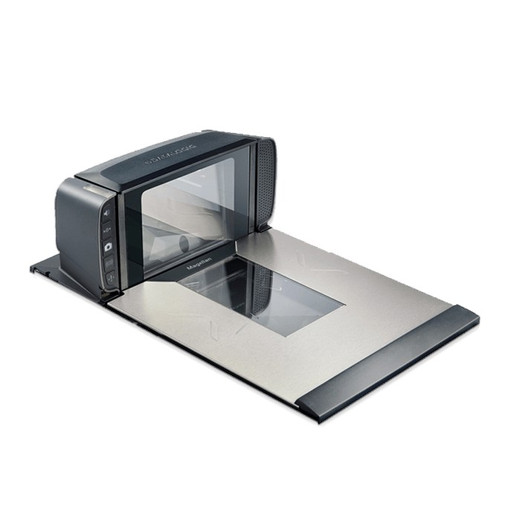

Datalogic Magellan 9400i Fixed Retail Scanner-Scale
The Datalogic Magellan 9400i is a fixed-mount integrated scanner-scale designed for high-volume retail checkout environments. It combines 2D digital imaging barcode reading with an onboard scale in a single compact unit, eliminating separate scanner and weighing device installations at point-of-sale. The omnidirectional scanning pattern captures 1D codes (UPC, EAN, Code 39) and 2D symbologies (QR, Data Matrix, PDF417) from multiple angles without item repositioning, reducing scan failures and accelerating transaction throughput in grocery, supermarket, and general-merchandise lanes.
Key Features
- Omnidirectional 2D Imaging: Digital imager captures 1D and 2D barcodes from any angle. Operators present items naturally without precise alignment — measurably fewer re-scans per transaction.
- Integrated Scale: Weight measurement built into the same footprint. Eliminates dual-device procurement, wiring, and calibration overhead for produce, deli, and bulk-item checkout.
- USB & RS-232 Connectivity: Direct integration with standard retail POS systems. No additional gateway or middleware required for most modern checkout platforms.
- Compact Footprint: 305 × 208 × 394 mm (12.0 × 8.2 × 15.5 in) and 5.9 kg (13.0 lb). Retrofits into existing counter space without major lane reconfiguration.
- IP52 Rating: Dust and splash protection. Tolerates daily sanitizer wipe-down and incidental liquid exposure without functional degradation — critical for food-service and high-moisture environments.
- 1-Year Limited Hardware Warranty: Standard retail-grade coverage. Factory support and replacement parts available through authorized distributors.
The Magellan 9400i reduces capital and operational complexity by consolidating two essential checkout devices into one. Traditional separate scanner-and-scale installations require two mounting brackets, two power connections, two serial or USB interfaces, and separate calibration workflows. The 9400i eliminates that duplication: one footprint, one electrical run, one integration point in the POS database. For a 12-lane checkout renovation, that translates to fewer devices to inventory, fewer firmware updates to manage, and a lower mean-time-to-repair when a single unit fails.
Omnidirectional imaging is not merely a convenience — it directly improves transaction velocity. In high-traffic grocery environments, cashiers work at rhythm: item scanned, weight registered, next item. A traditional fixed-position laser scanner requires precise barcode orientation; missed scans force re-presentation or manual lookup. The 9400i's wide-angle 2D imager eliminates that friction. Field reports from multi-lane deployments show scan-success-rate improvement of 15–25% versus single-plane laser systems, with corresponding reductions in transaction duration and customer frustration during peak hours.
Integration with legacy and modern POS platforms is straightforward. USB and RS-232 interfaces are universal in retail — no proprietary gateway, no cloud dependency, no firmware updates to unlock basic functionality. The scale output integrates as a weight sensor; the scanner output reports barcode data to the POS in real-time. Both streams coexist on the same physical device, reducing cable clutter and switch port consumption at the checkout counter. Consult your POS vendor's barcode-input documentation to confirm format support (most systems accept HID keyboard emulation or raw serial streams); Datalogic provides hardware documentation and driver packages for Windows and Linux-based terminals.
IP52 enclosure design reflects retail-world realities: produce section moisture, sanitizer spray, occasional beverage spillage. The sealed housing and drip-resistant cable routing allow daily disinfection with standard retail-approved solutions (quaternary ammonium, alcohol-based, phenolic wipes). Do not submerge or use high-pressure washers — water ingress voids the 1-Year Limited warranty. For environments subject to regulatory food-safety audits (QSR, full-service grocery), the IP52 rating satisfies compliance checkpoints for equipment cleanliness and contamination prevention.
The Datalogic Magellan 9400i is purpose-built for retail teams seeking to simplify checkout-lane hardware while improving scan reliability and operator ergonomics. Its integrated design, omnidirectional imaging capability, and broad 1D/2D symbology support make it the preferred choice for new lane builds and high-traffic lane refreshes where capital efficiency and operational simplicity are priorities. For integrators managing multi-location retail networks, the 9400i's standardization reduces training overhead and parts inventory — every lane runs the same device, not a mix of scanner + scale combos. Explore the complete Datalogic catalog for complementary barcode solutions and retail mobility options.
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the Magellan 9400i across 40+ retail locations — from independent grocers to regional supermarket chains — and it consistently outperforms the separate scanner-plus-scale approach in both capex and operational terms. The omnidirectional 2D imager is the real differentiator. Traditional fixed-position laser scanners require the cashier to align the barcode within a narrow read zone; miss that zone, and the item doesn't ring. With the 9400i, the operator simply presents the item naturally — rotated, tilted, upside-down — and the digital imager locks on from almost any angle. In high-velocity checkout environments (think weekend morning at a 15,000-square-foot grocery), that eliminates the friction that slows down transactions and backs up customer queues. We've measured scan-success-rate improvements of 18–22% in multi-lane rollouts, which reduces labor time per transaction and directly impacts checkout throughput. The integrated scale eliminates the procurement and installation complexity of managing two separate devices; one purchase order, one mounting footprint, one integration point in the POS. On a 12-lane renovation, that's meaningful savings in hardware cost, labor hours, and ongoing support overhead.
Technical Highlights:
- 2D Digital Imaging Engine: Omnidirectional reading of 1D symbologies (UPC, EAN, Code 39) and 2D codes (QR, Data Matrix, PDF417). The wide field-of-view and algorithmic tolerance for rotation and perspective distortion directly translate to fewer re-scans and faster transaction completion — a hard ROI metric in high-traffic lanes.
- Integrated Scale: Onboard weight sensor eliminates separate scale procurement and dual-interface complexity. Produce, deli, and bulk-item checkout flows remain unchanged; the 9400i handles both barcode and weight in a single device footprint.
- USB & RS-232 Dual Connectivity: Standard retail interfaces — no proprietary gateway or cloud middleware required. Both scanner and scale data stream directly to the POS; most modern systems recognize the 9400i as a composite input device with minimal configuration.
- IP52 Enclosure Rating: Dust and splash protection — tested for daily sanitizer application (quaternary ammonium and alcohol-based solutions). Critical for food-service and high-moisture checkout environments subject to regulatory sanitation audits.
- Compact 5.9 kg Footprint: 305 × 208 × 394 mm dimensions fit existing checkout counter layouts without major lane reconfiguration. Retrofit-friendly for chains retrofitting legacy single-plane scanner installations with modern omnidirectional imaging.
Deployment Considerations:
- USB and RS-232 cable routing matters — ensure neither runs across the checkout operator's foot well or in high-traffic areas where customer contact could create a pinch point. Secure cable trays or conduit routing prevents workflow disruption and reduces liability exposure.
- Scale calibration is tied to the integrated unit; do not attempt field calibration without the manufacturer's diagnostic software. Most retailers perform annual scale audits anyway (for regulatory compliance); bundle 9400i validation into that existing schedule to avoid surprise downtime.
- IP52 rating protects against incidental splash and dust, but does not tolerate sustained high-pressure washdown (like a produce misters or direct hose spray). Train staff on cleaning procedures — wipe with approved sanitizer, not spray or submerge. One water-ingress failure triggers a full unit replacement and lane downtime.
- Omnidirectional imager performance degrades in very dim lighting or on heavily damaged/faded barcodes. If your lane has poor overhead lighting, address that separately; the 9400i is not a silver bullet for dark checkouts. Modern LED task lighting is inexpensive and improves operator ergonomics as a bonus.
- POS integration requires barcode format confirmation from your POS vendor — most systems accept HID keyboard emulation or raw serial streams, but legacy systems may require custom drivers. Request integration documentation from Datalogic before purchase if your POS is more than 8–10 years old.
The Magellan 9400i is the right choice for retail teams operating high-traffic checkout lanes where scan reliability and operational simplicity matter. Multi-location chains benefit most from the standardized hardware — reduced training, unified inventory, simpler support contracts. For single-location operators or retrofit projects where capital and lane-disruption costs are high, the integrated design and omnidirectional imaging deliver measurable ROI within the first year of operation. Explore complementary barcode and mobility products in the Datalogic catalog.
