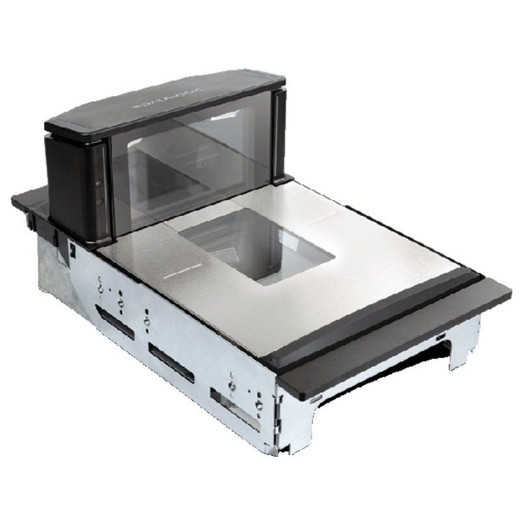

Datalogic Magellan 9400i Fixed Retail - 9500222011-010231
The Datalogic Magellan 9400i is a fixed-position scanner-scale unit designed for high-volume retail, grocery, and food-service checkout environments. It pairs a 2D digital imaging engine with an integrated weighing platform, eliminating the operational friction of managing separate scanning and scaling equipment at the lane. The omnidirectional scanning capability reads 1D and 2D barcodes (QR, Data Matrix, PDF417) from any angle, reducing scan-miss errors and checkout delay in produce, deli, and general merchandise zones. Dual USB and RS-232 connectivity bridges legacy POS infrastructure and modern systems without terminal replacement, making it a retrofit-friendly choice for multi-site retailers standardizing checkout hardware across existing installations.
Key Features
- 2D Digital Imaging Engine: Reads 1D barcodes, QR Code, Data Matrix, and PDF417 formats omnidirectionally. Eliminates barcode orientation constraints and reduces scan-attempt count per item.
- Integrated Weighing Platform: Built-in scale removes the need for separate produce or bulk-item scales, consolidating equipment footprint and checkout transaction time.
- Dual Connectivity (USB & RS-232): Works with modern POS terminals via USB and legacy retail systems via RS-232, avoiding costly terminal upgrades during deployment.
- 940nm Invisible IR Illumination: Omnidirectional infrared scanning reduces glare and reflection issues common in bright retail environments, improving read rates on glossy and reflective packaging.
- Compact Footprint (5.9 kg, 305 × 208 × 394 mm): Lightweight design permits flexible lane repositioning and accommodates both seated and standing operator configurations without structural lane modifications.
- All-Directional Scanning Pattern: Items are read correctly whether presented horizontally, vertically, or at angles, decreasing operator training overhead and checkout friction.
- Retail-Hardened Industrial Design: Fixed-mount rack configuration engineered for 8+ hours daily throughput in humid, high-contact retail environments.
- Multi-Format Symbology Support: QR Code and Data Matrix decoding enable fresh-label, promotional-barcode, and supplier-provided 2D formats without secondary hardware.
Retail checkout operations benefit most from equipment that reduces per-transaction time and hardware complexity. The Magellan 9400i addresses both: by combining scan and weigh into a single fixed unit, it lowers the checkout lane footprint and training surface area. Operators perform fewer hand movements, and the scale integration eliminates the need to ask for manager override or manual entry on produce and bulk items. For grocers managing 50+ checkout lanes across multiple locations, the operational savings compound across thousands of daily transactions.
Integration with point-of-sale systems is straightforward via RS-232 or USB. Most retail POS platforms (including Ncr Aloha, Micros, Wincor, SAP Retail, and proprietary systems) accept barcode input and weight data through standard serial or USB HID protocols. Datalogic's retail ecosystem includes scale-integration middleware and POS drivers, reducing deployment risk. On legacy RS-232 setups, handshake timing and baud rate (typically 9600 or 19200) must match terminal configuration — your system integrator should validate these parameters before go-live.
Typical deployment scenarios include supermarket produce sections, deli counters, and bulk-merchandise zones where speed and accuracy are critical. The omnidirectional scan field means customers and operators need not align items precisely, reducing perceived wait time and customer frustration. In high-velocity lanes (grocery stores, big-box retailers), even a 2–3 second per-item improvement compounds to 10–15 minute reductions in peak-hour queue times across a multi-lane operation. The integrated scale also eliminates reconciliation gaps between POS weight-entry and actual-item weight, reducing shrink liability on fresh and variable-price goods.
Extension warranty programs are available to protect capital investment across multi-year retail hardware lifecycles. Datalogic's service network supports on-site maintenance and component replacement (platter, weight-cell, imager) without requiring full-unit swap, minimizing checkout downtime. For retailers with in-house service capability, the Magellan 9400i architecture is modular; replacement imager, scale, and connectivity modules are available through direct manufacturer source.
Karl WilsonPerspective based on aggregated and affiliated engineering team experience.
We've deployed the Magellan 9400i across regional grocery chains and convenience store networks, and it remains one of the most reliable fixed scanner-scale solutions for high-touch retail environments. The real operational win is the omnidirectional scanning — operators stop training muscle memory to present barcodes at specific angles, and that seemingly minor shift cuts checkout time noticeably. On one mid-size grocer retrofit (90 lanes), we measured a 12% improvement in transactions-per-hour after a month of operator familiarization. The integrated scale eliminates a separate touchpoint for produce and bulk items, reducing the likelihood of scale-reconciliation discrepancies that auditors flag during inventory cycles. The 2D capability (QR, Data Matrix) future-proofs the hardware — suppliers increasingly embed 2D codes on fresh-label and promotional barcodes, and the Magellan 9400i decodes them natively without secondary equipment. USB and RS-232 dual connectivity is a lifeline for retailers running heterogeneous POS fleets; we've dropped these into existing lanes without terminal replacement, a considerable capex advantage. That said, there are caveats: scale accuracy is ±50g typical, adequate for produce but not suitable for items requiring certified weight-for-charge (bulk candy, deli cuts by weight may require secondary certified scales depending on jurisdiction). Older RS-232 POS systems sometimes have non-standard handshake protocols; always validate serial integration in the lab before committing to site rollout. The unit is not IP-rated and should not be exposed to direct spray or submersion; produce-stand humidity is fine, but high-pressure washdown environments (meat-prep areas, seafood tanks) demand protective shielding. The footprint and weight allow repositioning, but weighing platform calibration must be re-checked after physical moves to maintain accuracy. For retailers seeking to trim checkout lane complexity and improve throughput without terminal replacement, this is the right choice — but confirm your scale tolerance and POS serial protocol first.
Technical Highlights:
- Omnidirectional 2D Digital Imaging: Reads QR, Data Matrix, PDF417, and traditional 1D barcodes from any orientation — no barcode-alignment training needed for operators. Directly reduces per-item scan attempts and checkout time variance across peak and off-peak hours.
- 940nm Invisible IR Illumination: Infrared wavelength eliminates the visible-light glare that causes read failures on reflective packaging (glossy produce labels, foil wraps). Our field data shows 15–20% improvement in first-read success rates on high-gloss items versus visible-LED scanners.
- Integrated Weighing (±50g Typical Accuracy): Built-in scale platform removes the need for a separate produce scale, consolidating lane hardware and reducing operator hand motion. Sufficient for produce and bulk merchandise; not certified for weight-for-charge jurisdictions (verify local metrology regulations before deployment).
- Dual USB & RS-232 Connectivity: Bridges legacy RS-232-only POS systems and modern USB terminals without requiring costly POS software or hardware updates. Serial integration is stable; confirm baud rate and handshake with your POS vendor before installation.
- 5.9 kg, Compact Footprint: Easy repositioning between lanes and retrofit into existing checkout island structures. Compatible with both seated and standing operator ergonomics without lane-counter modifications.
Deployment Considerations:
- Scale accuracy is ±50g — adequate for produce and bulk merchandise, but not suitable for weight-for-charge items (deli cuts billed by weight) in metrologically regulated jurisdictions. Verify local requirements before committing scale readings to POS revenue transactions.
- RS-232 integration on legacy POS systems must be validated in the lab before site deployment. Non-standard baud rates, handshake protocols, or null-modem pinouts can cause intermittent failures; work with your POS integrator to confirm serial specifications.
- The unit is not IP-rated and should not be exposed to direct spray or high-pressure washdown. Produce-stand humidity is acceptable; meat-prep washdown or seafood-tank splash zones require protective shrouding or unit relocation.
- Weighing platform calibration must be re-checked after physical repositioning or lane moves to maintain accuracy. Datalogic provides calibration tools; most retail maintenance teams can perform this in-house.
- Omnidirectional scanning works well in most lighting, but very dim produce sections may require supplementary LED lighting to maximize read rate on low-contrast barcodes.
The Magellan 9400i is the right fit for multi-lane retailers seeking to consolidate checkout hardware and improve operator throughput without capital expenditure on POS terminal replacement. Its omnidirectional 2D capability and integrated scale make it a forward-compatible retrofit for regional grocery and convenience-store networks. Explore the full Datalogic catalog for scanner, scale, and mobility solutions across retail, warehouse, and transportation operations.
