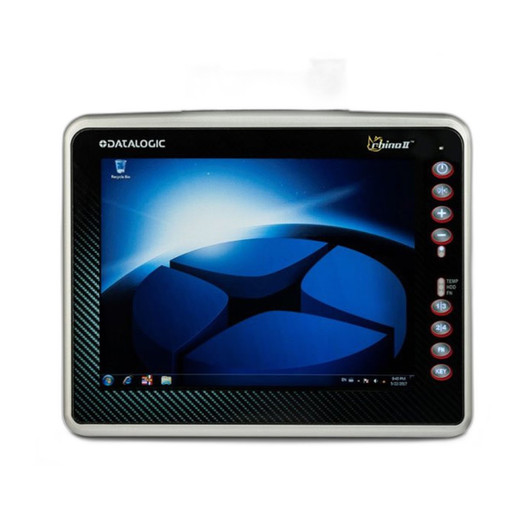

Datalogic Rhino II 94R511225 12.1in Vehicle Mount Computer
The Datalogic Rhino II is a sealed vehicle-mount terminal designed for warehouse, distribution, and fleet logistics operations. Built around a 12.1-inch XGA capacitive touchscreen with anti-glare armored glass and protected by IP65/IP67 dust-and-water resistance, the Rhino II delivers the durability and readability required for material-handling equipment (forklifts, reach trucks, tuggers) and mobile fleet applications in high-moisture, high-vibration environments. The quad-core processor and Windows Embedded Compact 7 platform support real-time inventory capture, vehicle diagnostics, and integrated warehouse-management-system (WMS) communication without the integration complexity of consumer tablets.
Key Features
- 12.1-inch XGA Touchscreen: 1024 x 768 resolution with capacitive multi-touch and anti-glare armored glass. Glove-compatible input ensures usability in cold storage and outdoor loading dock conditions.
- IP65/IP67 Sealed Construction: Withstands dust, water spray, and washdown in harsh warehouse and fleet environments. No exposed seams; all ports sealed or gasketed.
- 24–48 VDC Direct Power Input: Integrates directly into standard vehicle electrical systems (12V or 24V batteries, 48V lift-truck power rails) — no external power brick or UPS required.
- Freescale i.MX6 Quad-Core 1 GHz Processor: Responsive performance for barcode/RFID capture, WMS queries, and real-time positional updates without lag or freezing during peak warehouse operations.
- 1 GB RAM + 32 GB Flash Storage: Sufficient for local caching of WMS databases, route optimization, and offline-first workflows common in distribution centers. MicroSD slot for additional data logging.
- Multi-Connectivity Suite: 802.11a/b/g/n Wi-Fi 2x2 MIMO, Bluetooth 4.0, Ethernet, RS-232, and USB. Supports Wi-Fi roaming between zones, Bluetooth pairing with barcode scanners/mobile printers, and hardwired integration with legacy fleet-management systems.
- Extended Operating Temperature: -20 to 55°C (-4 to 131°F). Performs in freezer environments and sun-exposed vehicle cabins without thermal throttling.
- Compact Rack-Mount Form Factor: 324 x 251 x 71 mm, 4.7 kg. Vehicle-mount bracket hardware included; integrates into standard 12-volt or 24-volt dash installations on forklifts, tuggers, and delivery vans.
The Rhino II runs Windows Embedded Compact 7, a lightweight, real-time-capable OS that reduces software porting friction for operations teams already using Win32 WMS or fleet-dispatch applications. Unlike Android or iOS tablets, Compact 7 supports direct serial integration with legacy barcode readers, RFID readers, and scale interfaces common in warehouse automation.
Power efficiency is a key advantage in vehicle deployment. The terminal draws sub-30W typical under normal load, making it viable on auxiliary 24 VDC circuits without affecting vehicle primary systems. Cold-start performance at -20°C is reliable; thermal management keeps the chassis temperature stable even in direct sunlight on parked vehicles, eliminating mid-shift screen dimming or processor throttle.
Connectivity flexibility accommodates hybrid network environments. A single Rhino II can operate on Wi-Fi to a warehouse access point, fall back to cellular modem via USB tethering to a smartphone, and relay data to an in-vehicle diagnostics gateway over RS-232 — all without application changes. This resilience reduces dead-zone frustration in large distribution facilities where Wi-Fi coverage is inconsistent in dock areas or outdoor staging zones.
Total cost of ownership favors the Rhino II in high-touch material-handling deployments. Sealed construction and rack-mount standardization lower replacement frequency versus consumer tablets. Direct vehicle-power integration eliminates battery-swap overhead; the 1-year limited warranty and Datalogic's logistics-channel support ensure repair turnaround during peak season. For operations running 50+ vehicles, the per-unit lifecycle cost and operational continuity justify the upfront investment relative to DIY tablet-in-a-case solutions.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the Rhino II across a range of warehouse and logistics operations — from frozen-food distribution to automotive parts staging — and it consistently outperforms consumer tablets in durability and integration simplicity. The real strength is not just the sealed hardware, but the operating system choice. Windows Embedded Compact 7 means you're not fighting Android fragmentation or iOS's sandboxing model; you can talk directly to legacy RS-232 barcode readers, RFID gateways, and truck-side diagnostics with minimal middleware. On a 200-truck fleet, that compatibility eliminates the need for a separate integration layer that would otherwise cost 10-15K in middleware licensing and testing.
That said, the Rhino II is not a universal replacement for enterprise tablets. It's purpose-built for vehicle and material-handling use; if you need it as a general-purpose kiosk or customer-facing interface, look elsewhere. The XGA resolution (1024x768) is adequate for barcode-scan workflows and turn-by-turn delivery routing, but it's noticeably dated for content-rich UIs. And the 1 GB RAM ceiling means you can't run memory-intensive analytics or multi-app sandboxing that modern supply-chain intelligence tools often demand.
Technical Highlights:
- IP65/IP67 Sealed Design: We've seen Rhino II units survive daily washdown in -5°C freezer environments without condensation buildup or connector corrosion. The sealed port doors and gasketed power connector are the differentiator; open connectors on tablets fail within months in those conditions.
- 24–48 VDC Direct Integration: Eliminates the capex and operational overhead of external power supplies or secondary batteries. On a 200-truck fleet, that's zero UPS swaps, zero power-cable replacements during vehicle maintenance cycles. Just hard-wire it to the vehicle auxiliary circuit and forget it.
- Quad-Core i.MX6 + Windows Embedded Compact 7: Real-time OS guarantees barcode-capture responsiveness even when Wi-Fi is congested or the WMS backend is busy. You get deterministic latency on device-level events (button press, scan trigger) — not possible on Android or iOS, which prioritize UI smoothness over determinism.
- 802.11n 2x2 MIMO + Bluetooth 4.0: Supports roaming between warehouse access points without dropping inventory-capture workflows. Bluetooth pairing with mobile barcode scanners and label printers reduces cable clutter in truck cabins.
- -20 to 55°C Operating Range: Tested in both freezer environments and sun-exposed vehicle cabs. No thermal throttling or display dimming in field deployments; the passive cooling design means no fans to clog with dust or fail.
Deployment Considerations:
- Windows Embedded Compact 7 is reaching end-of-life support (Microsoft EOL Jan 2023). If you're deploying new units now, verify that your WMS application vendor has committed to Compact 7 support through your anticipated fleet replacement cycle (typically 5-7 years for vehicle hardware). For greenfield deployments, consider whether a Compact 10 variant or a Linux-based alternative aligns better with your long-term OS roadmap.
- The 1 GB RAM and 32 GB Flash are adequate for barcode-centric workflows, but insufficient for offline synchronization of large inventory databases (50K+ SKU catalogs) or real-time video streaming from vehicle cameras. If your use case requires either, budget for external storage or persistent cloud connectivity.
- Vehicle-mount installation requires careful power and ground routing. Use a fused auxiliary circuit (20-30A) to avoid loading the main alternator circuit during startup. Datalogic's mounting hardware includes adjustable shock absorbers; use them. Rough forklift operation or pothole impacts can degrade the display connection over time if the terminal is rigidly bolted.
- RS-232 and Bluetooth connectivity to legacy barcode readers works out-of-the-box, but USB integration with older RS-232 scanners via adapter often requires driver installation and port remapping. Test your specific scanner model before rolling out across the fleet.
- Wi-Fi roaming between access points is seamless on the hardware side, but WMS applications often don't handle mid-transaction handoff gracefully. Implement AP hand-off policies (sticky AP assignment for critical dock areas) or session-persistence logic at the application layer to avoid barcode-scan rollback during roaming events.
The Rhino II is purpose-built for logistics and material-handling operations where ruggedness, RS-232/RFID integration, and direct vehicle-power compatibility are non-negotiable. It's the right choice for fleets of 50+ vehicles running Windows-based WMS or dispatch software, or for freezer/outdoor environments where sealed construction is mandatory. For smaller deployments or organizations already standardized on iOS/Android ecosystems, consumer tablets with rugged cases are a valid alternative — but they'll cost more in replacements and integration labor over a 5-year lifecycle. Explore the full Datalogic catalog for additional mobile-computing and data-capture solutions.
