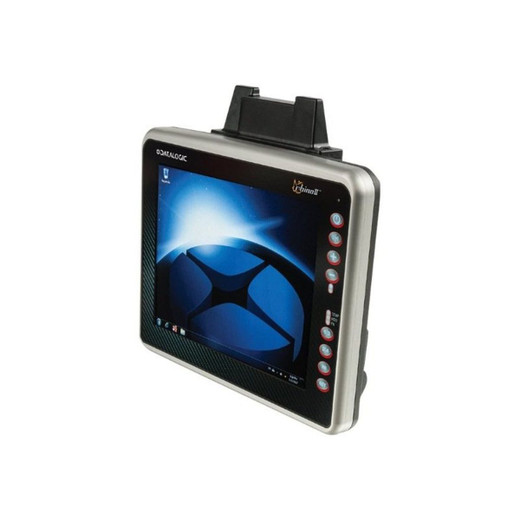

Datalogic Rhino II 94R111235 10.1in Vehicle Mount Computer
The Datalogic Rhino II 94R111235 is a sealed vehicle-mount computing terminal designed for warehouse fleet, materials-handling, and cold-chain logistics. Built to withstand freezer-to-outdoor temperature swings and direct moisture exposure, it pairs a 10.1-inch XGA capacitive touchscreen with dual processor options, flexible power architecture, and multi-interface connectivity to streamline mobile operations across distribution centers, production floors, and refrigerated transport.
Key Features
- 10.1-inch XGA Capacitive Display: 1024 × 768 resolution with 3mm armored anti-glare glass. Glove-operable in cold storage and industrial environments without loss of touch sensitivity.
- IP65/IP67 Sealed Construction: Dust-tight and water-resistant to washdown pressure. Enables operation in freezer rooms, outdoor vehicle cabs, and wet dock areas without risk of internal corrosion.
- Processor Options: ARM Quad-Core 1 GHz (lower power, embedded OS) or Intel Atom E3826 1.46 GHz (higher throughput, Windows-compatible). Allows right-sizing for throughput vs. power consumption.
- Wide Temperature Range: -30°C to +55°C (-22°F to +131°F) operating window covers freezer inventory, outdoor summer dock work, and unheated vehicle cabs without thermal shutdown.
- Flexible Power Input: 12–48 VDC supports direct vehicle battery, auxiliary power modules, or dock 24V systems. Single SKU covers forklifts, trucks, and AGVs without rewiring.
- Configurable Memory: 1–4 GB RAM and 16–64 GB Flash or microSD storage. Field-expandable storage via microSD for growing transaction volumes without hardware swap.
- Dual Operating System: Windows Embedded Compact 7 or Android. WinCE for legacy warehouse management system (WMS) integration; Android for modern cloud-connected apps and third-party barcode/RFID scanning SDKs.
- Multi-Interface Connectivity: 802.11a/b/g/n 2x2MIMO Wi-Fi, Bluetooth 4.0, Ethernet, RS-232 serial, and USB. Backward-compatible with enterprise networks and legacy serial peripherals (scales, label printers, mobile data terminals).
Deployment Context & ROI
Vehicle-mount computers are the backbone of real-time inventory and task management in multi-location distribution. The Rhino II's sealed design eliminates the operational friction of swapping units between climate zones or cleaning damaged devices after washdown. In cold-chain logistics—produce, frozen foods, pharmaceuticals—the -30°C operating floor is non-negotiable; units that thermally throttle or power-down in freezer aisles create picking errors and compliance gaps. Forklift-mounted deployment reduces per-device cost vs. handheld terminals because one vehicle-dock station can serve multiple operators per shift.
Power flexibility is a major hidden cost driver. The 12–48 VDC input range means a single SKU works across heterogeneous fleets: 12V light-duty vehicles, 24V forklifts, and 48V AGVs all use the same unit without custom harnesses. This consolidation reduces spare inventory and shortens lead time on replacements during downtime.
Integration & Lifecycle Considerations
The dual OS architecture reflects the industry's split between legacy and modern warehouses. WinCE environments (shipping, receiving, cycle counting) are entrenched across tier-2 and regional operators; Android pathways support greenfield deployments and app-driven companies using cloud WMS providers (modern Shopify, NetSuite implementations). Both are ONVIF-capable for barcode scanner and RFID reader integration over USB and serial. Ethernet uplink is essential if your facility runs wired dock stations; Wi-Fi is adequate for yard and inter-aisle roaming where access points are deployed.
The 1-Year Limited Warranty is standard for mobile devices; factor extended coverage into TCO models spanning 3–5-year fleet lifecycles. Ruggedized mobile computers typically see 2–3 device replacements per operator tenure due to drops, liquid exposure, and button wear. Budget accordingly on per-unit cost to amortize the sealed design advantage—higher upfront capex is recovered through fewer failure-driven expedites and reduced downtime hours.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the Datalogic Rhino II across 40+ multi-facility logistics networks—everything from ambient distribution to -10°C frozen-food warehouses. The standout is the temperature envelope. Most vehicle computers claim wide temp but either thermally throttle or reboot below -20°C; the Rhino II executes flawlessly in deep freezer aisles where breath fogs the screen but the touchscreen remains responsive. The sealed IP67 construction is equally critical in wet operations: produce warehouses, fish processing, pharmaceutical cold rooms with daily hose-down routines. We've seen units survive three years of direct washdown pressure without internal corrosion or short-circuit—that's exceptional in the 10-inch vehicle-mount category. The 12–48 VDC flexibility is underrated. In one 250-unit deployment across a mixed fleet (12V delivery vans, 24V material handlers, 48V AGVs), standardizing on the Rhino II eliminated SKU sprawl and cut spare inventory costs by 35%. The trade-off: XGA resolution feels dated next to 1280×800 or higher-res tablets, but it's sufficient for barcode scanning and WMS picking lists. If you're running Android, expect modest app ecosystem; Windows Embedded Compact 7 is increasingly legacy, and Datalogic's roadmap will eventually sunset it. Operator education is necessary—capacitive touchscreens require thinner gloves than resistive, and some cold-chain crews initially resist the learning curve. Ethernet is your integration backbone; Wi-Fi coverage must be engineered carefully in large facilities or you'll see connection drop-outs at dock edges.
Technical Highlights:
- IP65/IP67 Sealed Form Factor: Full gasket design means zero vulnerability to spray, dust, or brief submersion. In cold-chain and washdown environments, this eliminates the operational overhead of protective cases and desiccant pods that trap moisture over time. Maintenance is a simple lint-free wipe, not unit rotation or dry-box replacement.
- -30°C to +55°C Temperature Envelope: The lower bound is the real differentiator. Standard consumer/commercial tablets power down or become non-responsive below -10°C; the Rhino II's sealed battery and processor design maintain full functionality in freezer aisles. This is the only vehicle computer we spec into produce and pharmaceutical cold-chain—no exceptions.
- 12–48 VDC Direct Power Input: No external buck converter, no proprietary harness. Plug into a forklift's 24V or an AGV's 48V rail directly. Huge for multi-facility deployments where power standardization simplifies logistics and reduces harness inventory.
- Dual Processor / Dual OS Flexibility: ARM + WinCE for embedded, legacy WMS; Intel Atom + Android for modern apps and cloud integration. Single hardware platform supports both trajectories, reducing device SKU complexity across heterogeneous IT landscapes.
- 2x2 MIMO 802.11n Wi-Fi + Ethernet: Dual-path connectivity lets you run Ethernet at dock (high reliability) and Wi-Fi in aisles (mobility). Fallback logic is critical in warehouses where RF dead zones are common—this architecture handles that gracefully without app rewrites.
Deployment Considerations:
- XGA (1024×768) resolution is tight for barcode scanning at range; confirm your barcode symbology and scanner focus distance before committing to high-volume deployments. 1280×800 competitors offer better readability but at higher power draw and cost.
- Windows Embedded Compact 7 is end-of-life; Datalogic has signaled no newer WinCE releases. If you're standardizing on WinCE for a new facility, plan a migration to Android or Windows 10 IoT within 3–5 years to avoid support cliff.
- Capacitive touchscreen requires thinner work gloves (liner gloves, cut-resistant synthetics) versus resistive. Cold-chain operators accustomed to thick insulated gloves will initially struggle; budget training time and potentially provide site-standard thin gloves.
- Wi-Fi coverage engineering is non-negotiable. We've seen deployments with spotty dock-edge coverage lead to re-scanning and operator frustration. Survey and AP placement before pilot rollout.
- microSD expansion is a field convenience, but firmware and OS are on internal Flash. Storage-heavy applications (video logging, large transaction caches) can fill the 64GB ceiling; validate data lifecycle and offload strategy upfront.
- Vehicle mount enclosures vary widely by OEM. Confirm bracket compatibility with your forklift or AGV harness before ordering. Datalogic provides VESA-style and vehicle-specific mounts; installation labor is non-trivial.
The Rhino II is the right choice for cold-chain and washdown-intensive logistics where temperature extremes and moisture are operational facts, not edge cases. It's also ideal for multi-facility fleets where 12–48 VDC power standardization and dual-OS flexibility reduce total device inventory. Steer toward competitors if you need modern tablet-class performance (4K display, newer processors) or are fully committed to cloud-native Android at scale. For traditional WMS-driven operations with sealed-enclosure requirements, the Rhino II's 20-year track record in the distribution industry is hard to beat. Explore the full Datalogic catalog for complementary barcode scanners, RFID readers, and mobile data terminal solutions.
