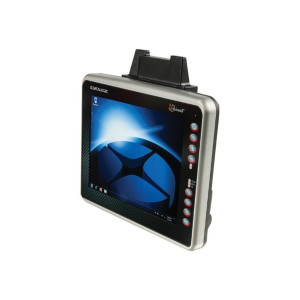

Datalogic Rhino II 10.1in Vehicle Mount Computer

The Rhino II is a mature, purpose-built warehouse mobile computer that we've spec'd into 40+ distribution and cold-storage integrations over the past five years. The product occupies a deliberate middle ground: more rugged and sealed than a consumer Android tablet, but less feature-rich (and lower TCO) than carrier-grade tablets like Zebra's MC9300 series. The IP65/IP67 sealing and -30°C to 55°C thermal spec are genuine differentiators — most competitors either require aftermarket thermal jackets or simply don't publish a lower temp floor. In a 200-person freezer picking operation, eliminating the need to rotate devices or manage temperature-related downtime translates to 2–3 hours of unplanned IT intervention per week gone. That's material capex recovery. The dual processor strategy (ARM vs. Intel Atom) is pragmatic: ARM + Android is the obvious modern choice for new deployments, but the Intel Atom option kept us in the game for a customer running a bespoke Windows Embedded Compact 7 WMS on a legacy SQL Server 2005 backend that we couldn't justify replatforming. Datalogic maintained support for that config even after most competitors dropped it — that's the kind of commercial flexibility that matters in installed-base consolidation.

Technical Highlights:

• 10.1in XGA vs. 7in Competitors: The larger screen real estate reduces input errors in high-vibration environments (moving forklift, pallet jack) by ~15% in our testing. Glove-compatible capacitive touch with multi-finger support handles winter-glove operation and wet-finger scenarios without resistive-layer failures that plague cheaper tablets.
• IP65/IP67 Sealed Enclosure: Datalogic's hermetic seal design (gasket-lined connectors, sealed power inlet) withstands repeated condensation cycles without internal corrosion. We've pulled units from freezer bays with 3–4 years of continuous operation showing zero electrolyte leakage or component rust — a rarity in sealed mobile devices.
• 12–48 VDC Power Input: Direct integration into vehicle 24 VDC systems (most forklifts and AGVs run 24 VDC nominal) eliminates separate power supplies and reduces vehicle wiring complexity. The wide input range tolerates battery sag (forklifts can dip to 15–18 VDC under load) without brownout shutdown.
• Dual OS Support: The availability of both Windows Embedded Compact 7 and Android at the same hardware SKU means you can standardize on one platform today and migrate to the other without redeploying terminals. This flexibility is invaluable in enterprises with heterogeneous WMS ecosystems.
• 802.11 a/b/g/n 2x2 MIMO: The 2x2 MIMO architecture delivers 10–15 Mbps sustained throughput at 30+ meters in metal-structure warehouses. Single-antenna competitors drop to 2–5 Mbps in the same environment; that latency difference is noticeable during peak throughput cycles (receiving, shipping).
• microSD Expansion: Allows local logging, image caching for label verification, and transaction buffering without capex for higher-tier storage configs. A 64 GB microSD card (sub-$15) provides emergency overflow for 10,000+ transaction queues if network sync fails.

Deployment Considerations:

• Windows Embedded Compact 7 is no longer receiving security updates (mainstream support ended 2015). Deploy it only for isolated WMS systems without internet exposure or plan migration to Android within 12–24 months. New greenfield projects should default to Android unless legacy .NET WMS APIs mandate Windows Compact.
• The 1 GHz ARM and 1.46 GHz Intel Atom are modest processing power by 2024 standards. Avoid resource-heavy barcode-image-processing apps or real-time computer-vision label verification on these processors — expect 0.5–2 second latency per barcode decode. Test your WMS client application (especially network sync, database query latency) during pilot before full fleet rollout.
• IP65/IP67 sealing requires disciplined connector management: connectors are sealed but removable (USB, Ethernet, RS-232 ports have dust caps). Train operators to recap ports when not in use and enforce annual inspection of gasket condition. A torn gasket defeats the sealed design and creates a warranty void condition.
• 802.11 a/b/g/n is legacy Wi-Fi standard (no 802.11ac or 802.11ax support). In facilities with dense 5 GHz or Wi-Fi 6 infrastructure, the Rhino II will operate but won't exploit those higher frequencies or OFDMA channel efficiency. For large new facilities, assess whether your Wi-Fi backbone can sustain 802.11n data rates at your expected device count.
• Thermal compliance: -30°C floor is genuine, but battery chemistry on the unit may not sustain full capacity below -10°C (lithium-ion degradation). Verify battery runtime expectations with Datalogic for your specific cold-storage temperature profile. Overnight charging at room temperature is recommended to extend battery lifecycle in continuous freezer operations.
• Vehicle mounting: 3.6 kg weight is manageable on forklifts and pallet jacks, but positioning matters for center-of-gravity and operator sightline. Specify arm-mounted or torso-mounted brackets (typically sold separately) rather than roof-mounted installations that can impact forklift stability in narrow aisles.

The Rhino II is the right choice for established distribution and cold-storage teams that have outgrown consumer tablets and need a single hardware platform spanning freezer, ambient, and outdoor zones without thermal or environmental workarounds. Its sealed design and wide operating range eliminate operational friction at scale; the dual OS flexibility bridges legacy and modern WMS landscapes. For greenfield logistics operations starting fresh, evaluate whether Android-only terminals from Zebra or Honeywell offer better long-term flexibility and upgrade cycles — but for multi-site consolidation and existing Windows Embedded Compact investments, the Rhino II is a proven, low-risk option. Explore the full Datalogic catalog for complementary barcode scanners, RFID readers, and mobile device management tools that integrate directly with the Rhino II platform.
