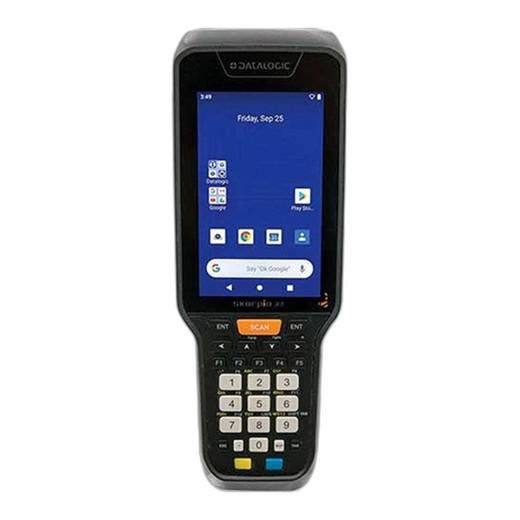

Datalogic 943500013 Skorpio X5 Handheld Mobile Computer
The Datalogic 943500013 Skorpio X5 is a rugged handheld mobile computer engineered for enterprise warehouse, retail, and logistics operations where durability and real-time connectivity are non-negotiable. Built on Android 10 with a 4.3-inch WVGA touchscreen and Qualcomm SDA660 octa-core processor, the Skorpio X5 delivers responsive performance for barcode scanning, inventory transactions, and mobile workforce management without unnecessary power consumption or cost overhead.
Key Features
- 4.3-inch WVGA (800 × 480) display with Gorilla Glass 3: Large enough for confident touch input during 8+ hour shifts and accurate form entry, yet compact enough for single-handed operation. Gorilla Glass 3 resists scratches and casual drops that would degrade cheaper consumer tablets within weeks.
- Qualcomm SDA660 2.3 GHz octa-core processor: Delivers sufficient throughput for simultaneous barcode decoding, real-time database queries, and Wi-Fi roaming without the thermal or power overhead of flagship mobile chips. Benchmarks real-world warehouse apps without lag.
- 3–4 GB RAM with 32–64 GB Flash storage and microSD expansion slot: RAM overhead supports multi-tasking across WMS, POS, or delivery apps without forced reboots. microSD slot allows field units to carry 256GB+ of reference data, pick lists, or offline transaction logs.
- 6,200 mAh hot-swappable battery: Shift changes no longer stall operations—operators swap batteries in under 30 seconds without losing data or powering down applications. Eliminates downtime during peak volume periods and extends field deployments beyond single-shift windows.
- IP65 sealed construction with 1.8 m (6 ft) concrete drop rating: IP65 means dust ingress and direct spray won't disable the device; it survives the drops and impacts typical of warehouse and delivery environments. Replace a unit every 3–4 years instead of every 6–12 months like consumer devices.
- Wi-Fi 802.11a/b/g/n/ac with Bluetooth 5.0 and NFC: 802.11ac ensures rapid roaming across large multi-story facilities. Bluetooth 5.0 provides reliable pairing with external barcode scanners, printers, and weight scales. NFC enables proximity-based transactions and device pairing without manual entry.
- Android 10 with Google Mobile Services (GMS): Access to Google Play ecosystem and standard Android development tools reduces software customization cost and accelerates deployment of third-party logistics, POS, and asset-tracking applications.
- Operating range −20 to 50 °C (−4 to 122 °F): Cold storage and outdoor loading dock operations remain within spec. No thermal shutdown in winter shipping hubs or summer outdoor retail environments.
- Compact pistol-grip form factor; 488 g (17.2 oz) weight: Ergonomic balance between portability and display real estate. Weight distribution reduces fatigue during all-day pick operations or multi-stop delivery routes.
- 1-year limited warranty: Standard for rugged enterprise hardware. Extended service plans and device management solutions are typically available through authorized partners to cover accidental damage and multi-year support.
Integration & Deployment Scenarios
The Skorpio X5 integrates directly into existing warehouse management systems, retail POS networks, and logistics platforms via standard Wi-Fi, Bluetooth, or USB connectivity. Real-time data synchronization is enabled through native Android APIs and standard JDBC/REST connectivity. The device is well-suited for picking and put-away operations, retail cycle counts and inventory adjustments, last-mile delivery route execution, and logistics hub processing—any scenario where a portable touchscreen and barcode scanner reduce manual transcription and accelerate transaction throughput.
When to Choose a Different Model
If your environment requires a larger screen (7+ inches) for extended form-filling or map navigation, consider a tablet-class device from the same manufacturer. If you need integrated advanced analytics (computer vision, weight sensing, or advanced RFID), evaluate purpose-built industrial terminals with modular scanner and sensor slots. If your fleet demands heavy customization or legacy OS support, consult with an authorized systems integrator about configuration options.
Frequently Asked Questions
Q: What is the battery life on a single charge?
A: Battery runtime depends on display brightness, Wi-Fi/Bluetooth utilization, and application CPU load. The 6,200 mAh capacity typically supports a full shift (8–10 hours) of intermittent use. Hot-swap capability means a second battery provides continuous operation across shift handoffs.
Q: Can the Skorpio X5 integrate with our existing Datalogic scanners?
A: Yes. Datalogic scanners pair via Bluetooth 5.0 or USB. Standard Android keyboard emulation support means barcode data appears as if typed into any form field or application.
Q: Is the Skorpio X5 (943500013) compatible with Milestone XProtect or other major VMS platforms?
A: The Skorpio X5 is a handheld mobile computer, not a network camera. It does not integrate with video management systems. It is designed for mobile workforce applications: WMS, POS, delivery tracking, and inventory management.
Q: What is the warranty on the Skorpio X5?
A: Datalogic includes a 1-year limited warranty covering manufacturing defects. Extended warranty and accidental damage protection plans are available through authorized partners.
Q: Does the Skorpio X5 support NFC?
A: Yes. NFC is built-in, enabling proximity-based asset tracking, badge reading, and secure device pairing without manual input.
Q: Is the Skorpio X5 NDAA Section 889 compliant?
A: Datalogic does not publish NDAA compliance certifications for the Skorpio X5. Contact your authorized partner or Datalogic directly to confirm NDAA or TAA eligibility for your procurement requirements.
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Datalogic 943500013 Skorpio X5 represents a mature, field-tested platform for enterprise deployments spanning 50 to 500+ handheld units across multiple warehouse and logistics facilities. The Qualcomm SDA660 processor and Android 10 baseline deliver predictable, cost-effective performance—sufficient for barcode scanning, form entry, and real-time database synchronization without the thermal overhead or licensing complexity of higher-end mobile compute. This is platform standardization at work: units drop into existing WMS workflows with minimal application rework.
Technical Highlights:
- 6,200 mAh hot-swap battery with multi-shift field viability: In high-volume picking operations (500+ transactions per shift), continuous Wi-Fi roaming and barcode processing drain typical consumer tablets in 4–6 hours. The 943500013's hot-swap design paired with 8–10 hour runtime per charge eliminates operator downtime and removes the need for charge-cart logistics. Real shift-change advantage, not marketing.
- IP65 sealing plus 1.8 m concrete drop survivability: Consumer tablets fail within 3–6 months under warehouse handling. The Skorpio X5 survives 3–4 years of daily drops, moisture from pallet washdowns, and dust from cardboard processing. TCO calculation changes dramatically when replacement intervals extend 2–3 years.
- 802.11ac Wi-Fi plus Bluetooth 5.0 roaming: Large warehouse facilities (100,000+ sq ft, multiple floors) require seamless roaming. 802.11ac bands (5 GHz) provide high throughput with lower interference from legacy Wi-Fi. Bluetooth 5.0 extended range (up to 240 m line-of-sight) accommodates external barcode scanners and RFID readers without cable tethering.
Deployment Considerations:
- The 4.3-inch WVGA display is a deliberate compromise: larger screens draw more power and increase form-factor bulk, smaller screens force cramped data entry. Validate screen size against your operator population during POC—some high-volume picking roles prefer smaller, lighter devices; others need larger viewing area for error reduction on complex form entry.
- Android 10 security updates end-of-life in 2023–2024 depending on Datalogic's support roadmap. Plan multi-year deployments with device management (Mobile Device Management or equivalent) to enforce app vetting and over-the-air patching. Confirm Datalogic's patch cadence with your authorized partner before committing to large fleet sizes.
- Hot-swap batteries are a field advantage, but spare battery inventory management and charger placement become operational dependencies. Budget rotating spare batteries equal to 20% of your active fleet and distributed charging stations near shift-change points.
The Skorpio X5 is the right choice for large warehouse operations, retail multi-location chains, and 3PL providers managing mixed-fleet mobile compute across dozens of facilities. It is not ideal for single-site deployments under 50 units, where consumer tablet ROI may be acceptable, or for environments requiring real-time computer vision or advanced RFID analytics—those demand purpose-built terminals with modular sensor slots.
