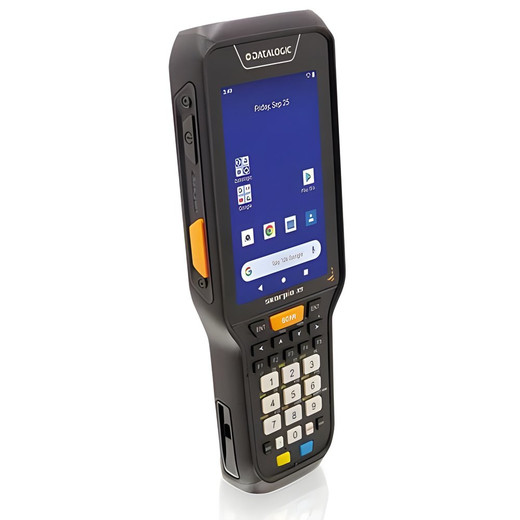

Datalogic 943500032 Skorpio X5 Handheld Mobile Computer
The Datalogic Skorpio X5 (model 943500032) is a rugged enterprise handheld mobile computer purpose-built for warehouse receiving, retail inventory, parcel tracking, and field logistics operations. It balances processing power, durability, and extended battery runtime — critical factors when managing high-volume data capture across multiple facilities or 24/7 operations. This device runs Android 10 with Google Mobile Services, so your team gets app ecosystem familiarity without a steep learning curve.
Key Specifications & Deployment Benefits
- 4.3-inch WVGA display (800 × 480) with Gorilla Glass 3: Screen real estate sufficient for inventory databases, barcode results, and two-line confirmations — large enough to read outdoors under typical warehouse lighting, but small enough to fit a shirt pocket. Gorilla Glass resists scratches and absorbs impact energy when the device is dropped or knocked against scanning racks.
- Qualcomm SDA660 2.3 GHz octa-core processor with 3–4 GB RAM: Handles multitasking (inventory app + barcode decoder + network traffic) without lag or thermal throttling. Octa-core architecture distributes load efficiently, reducing battery drain compared to older quad-core designs — meaningful over a 12-hour shift.
- 32–64 GB internal Flash storage with microSD expansion: Sufficient for local app caching, transaction logs, and offline inventory snapshots. microSD slot allows swapping cards between devices or external backup without USB tethering.
- IP65 sealed construction: Dust and water jets won't penetrate the housing — no risk from spilled cleaning fluid, humid freezer environments, or splash-zone operations. Not submersible (that requires IP67), but entirely appropriate for warehouse floor deployment.
- Survives 1.8 m (6 ft) drops on concrete: Real-world durability claim backed by repeated drop testing. Reduces device replacement costs and administrative overhead when devices are accidentally knocked off shelves or loading docks — typical in high-tempo environments.
- 6,200 mAh hot-swappable battery supporting 12+ hour shifts: Battery swaps in under 30 seconds, no device restart required. Critical for 24/7 operations where downtime for charging or device restarts translates directly to staffing costs or missed shipments. Hot-swap also eliminates the need for external charging stations or spare devices.
- Operating temperature range −20°C to 50°C (−4°F to 122°F): Function in freezer environments (food/pharmaceutical warehouses) and unheated outdoor yards without performance degradation or component failure. Many consumer handhelds fail below 0°C.
- 488 g form factor with pistol-grip design: Under 18 ounces with ergonomic grip reduces operator fatigue during sustained scanning sessions. Weight and grip geometry matter when a technician picks up the device 500+ times per shift.
- Dual-band Wi-Fi 802.11 a/b/g/n/ac with Bluetooth 5.0: 802.11ac ensures gigabit-class throughput on modern enterprise networks — real-time inventory database updates without queueing. Bluetooth 5.0 pairs with wireless scanners, barcode accessories, or headsets with longer range and lower latency than older Bluetooth versions.
- NFC and USB connectivity: Integration flexibility — NFC for tag-based workflows (asset tagging, specimen identification), USB for legacy peripherals or device management during provisioning.
Typical Deployment Scenarios
Warehouse receiving and put-away (real-time validation of inbound SKUs against purchase orders); retail cycle counting and price verification (frequent handling, wet environment risk); parcel and package tracking in logistics hubs (outdoor temperature swings, high drop risk); field service and mobile asset management (technicians working outdoors or in customer facilities); healthcare specimen and medication traceability (regulated data capture, temperature sensitivity); manufacturing quality assurance and parts traceability (industrial floor exposure to dust and coolant mist).
Integration & Compatibility
The Skorpio X5 supports standard enterprise Wi-Fi authentication (802.1X, WPA2/WPA3), allowing direct integration into corporate networks without VPN gateways. Android 10 with Google Play Services means compatibility with commercial inventory management apps (SAP, Oracle NetSuite mobile clients, Zebra StockTaking, Datalogic's own routing and fulfillment applications). Device management via mobile device management (MDM) platforms such as AirWatch or Microsoft Intune is supported.
When to Choose a Different Model
If your operations require extended outdoor navigation or asset GPS tracking, consider a model in the Skorpio family with integrated GPS module — the base 943500032 does not include GPS. For applications requiring ultra-high temperature resilience (furnace monitoring, kiln-side operations), evaluate more specialized industrial handhelds. For applications with minimal drop or splash exposure but heavy emphasis on app ecosystem breadth, a commercial-grade smartphone (non-rugged Android) may reduce total cost of ownership, though you sacrifice drop protection and extended temperature range.
Frequently Asked Questions
Q: Does the Skorpio X5 support barcode and 2D code scanning?
A: The 943500032 does not include an integrated barcode scanner engine. However, it supports pairing with external wireless barcode scanner accessories via Bluetooth, and many third-party scanning apps (camera-based decoders) are available on Google Play. Check with your app vendor or systems integrator to confirm compatibility with your barcode symbologies and performance requirements.
Q: Can the battery be removed and replaced in the field without powering down?
A: Yes — the 6,200 mAh battery is hot-swappable, meaning you can remove and install a fresh battery without rebooting the device. This is critical for 24/7 operations and for reducing downtime in high-volume environments.
Q: What is the warranty on the Datalogic 943500032?
A: Warranty terms depend on your supplier and purchase agreement. Contact your systems integrator or authorized distributor for specific coverage duration, parts replacement policy, and accidental damage options.
Q: Is the Skorpio X5 compatible with mobile device management (MDM) platforms?
A: Yes. The device supports standard Android MDM enrollment via AOSP APIs (Google Play Services enrollment compatible with Intune, AirWatch, MobileIron, and similar platforms). Device provisioning, app deployment, and security policy enforcement are supported through your existing MDM infrastructure.
Q: How long does the battery last under normal warehouse usage?
A: Runtime depends on screen brightness, Wi-Fi transmission frequency, and processor load. Datalogic specifies 12+ hour operational runtime under typical mobile computer workloads — sufficient for a full warehouse shift without mid-shift charging. Actual runtime varies by application; always conduct on-site battery testing before large fleet deployment.
Q: Can the Skorpio X5 operate in freezer environments?
A: Yes — the operating temperature range extends down to −20°C (−4°F), which covers most freezer warehouses and cold-chain logistics operations. Performance and battery runtime do degrade slightly at sub-zero temperatures, so include thermal margins in your shift planning if working extended periods below −10°C.
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Skorpio X5 (943500032) sits in a practical middle ground for warehouse automation teams: enough processing power and battery endurance to handle real-time inventory synchronization without the complexity or cost of dual-radio devices or outdoor-hardened units. The octa-core SDA660 and 3–4 GB RAM deliver sufficient horsepower for barcode decoding, database queries, and multi-tasking without thermal issues or battery drain surprises mid-shift — a common pain point with older quad-core handhelds running inventory apps on congested warehouse networks.
Technical Highlights:
- IP65 sealing + 1.8 m drop rating: Real durability margin built in. Warehouse floors are wet, devices get knocked off racks. The sealed housing and drop certification reduce warranty claims and extend device lifecycle — directly affecting total cost of ownership across a 50- or 100-unit fleet.
- 6,200 mAh hot-swappable battery: No device restart, no downtime for battery changes. In a 24/7 three-shift operation, this eliminates device queuing at charging stations and maintains throughput during shift handoffs.
- −20°C to 50°C operating range: Freezer warehouses and outdoor yards are non-negotiable in pharmaceutical and food logistics. Most consumer handhelds fail below 0°C; the Skorpio X5 handles temperature swings that would cripple cheaper alternatives.
- 802.11ac Wi-Fi + Bluetooth 5.0: Gigabit-class Wi-Fi ensures real-time database updates; Bluetooth 5.0 pairs with external scanners and accessories with lower latency and longer range than older versions.
Deployment Considerations:
- The 943500032 does not include an integrated barcode scanner. Plan for external Bluetooth scanner pairs or camera-based decoding apps — adds cost and integration complexity if your existing scanner fleet is wired or proprietary.
- Battery runtime varies by workload. Always conduct on-site testing with your actual app before committing to fleet size. High-frequency Wi-Fi transmission or continuous camera use will reduce the stated 12+ hour runtime.
For warehouse and logistics teams deploying 20+ units across receiving, put-away, and cycle counting, the Skorpio X5 delivers ruggedness and Android ecosystem flexibility without overengineering for applications that don't require GPS or multi-radio complexity. It's a solid choice for unified warehouse operations where device drop rates are high, shift lengths are extended, and Wi-Fi infrastructure is already in place.
